1D-3 Power Unit Mechanical:

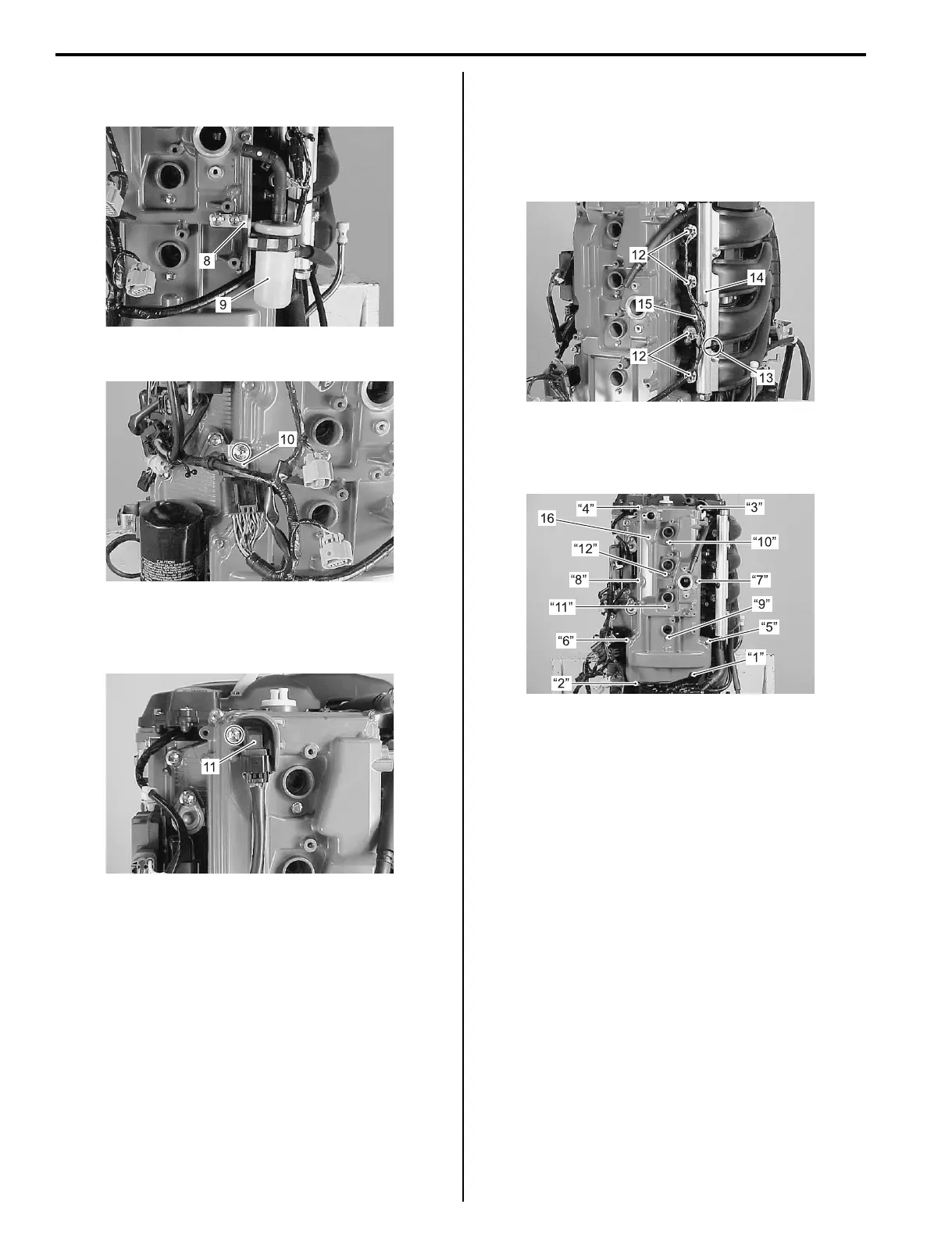

6) Remove the two bolts securing filter bracket (8), then
remove low pressure fuel filter (9) and filter bracket.
7) Remove the bolt and joint connector bracket (10).
8) Disconnect CMP sensor lead wire connector at CMP
sensor (11).
Remove bolt and CMP sensor.
9) Disconnect fuel injector lead wire connector at all
fuel injectors (12).
Cut the cable tie (13) binding injector lead wire to
fuel delivery pipe (14).
Disconnect high pressure fuel pump lead wire
connector (15).
10) Remove the twelve bolts securing cylinder head
cover (16) to the cylinder head, then remove the
cylinder head cover.
I9J011140083-01
I9J011140084-01
I9J011140085-01
I9J011140086-01
I9J011140087-01
