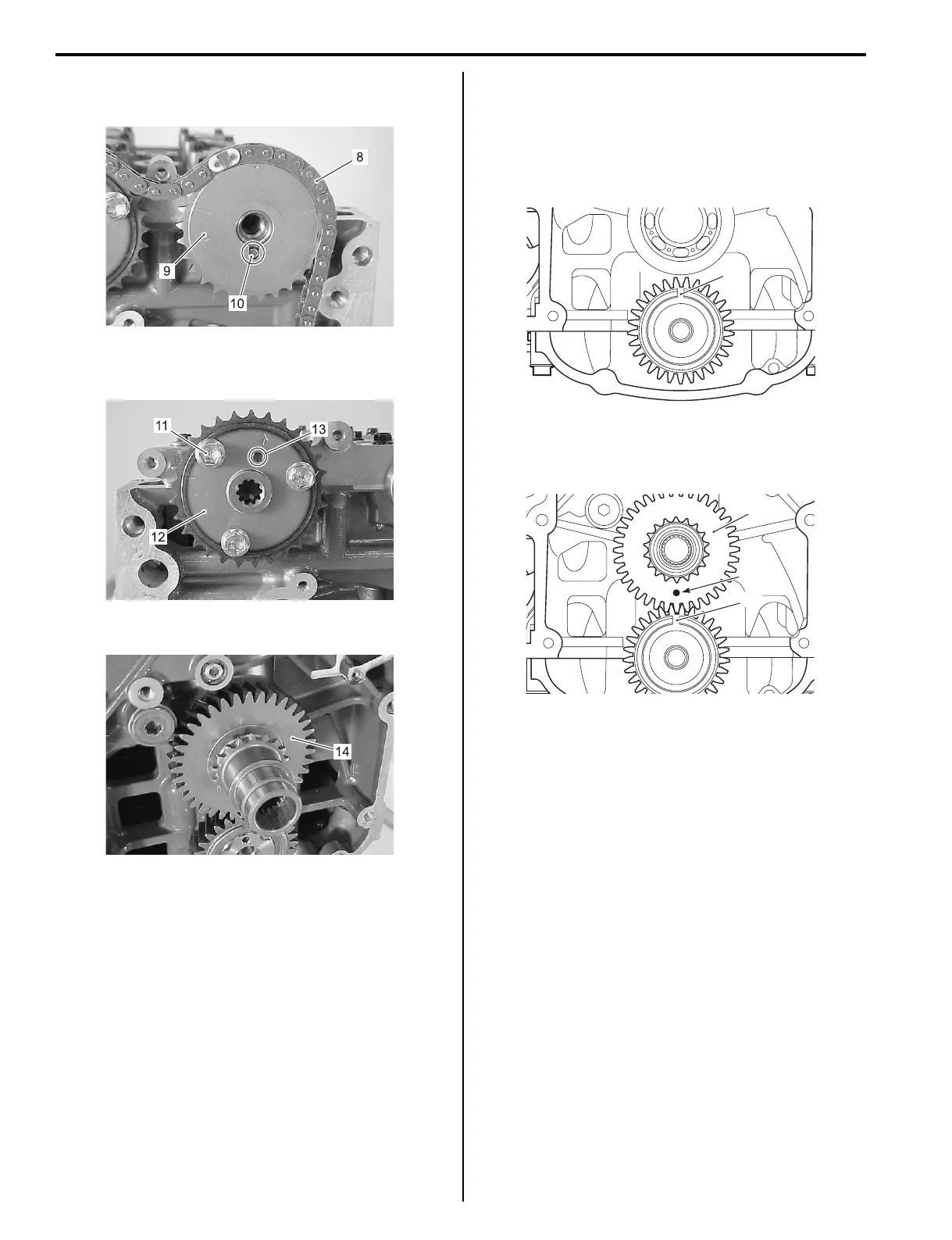

1D-21 Power Unit Mechanical:
7) Remove timing chain (8), IN. camshaft timing
sprocket (9) and dowel pin (10).
8) Remove three bolts (11) and EX. camshaft timing
sprocket (12) and dowel pin (13).
9) Remove driven gear (14).
Installation
Installation is reverse order of removal with special
attention to the following steps.
1) Check that match mark “A” on the crankshaft drive
gear points to 12 o’clock position (towards cylinder
head).
2) Install the driven gear (1) on the cylinder block so
that match mark “A” aligns with match mark “B” on
the driven gear as shown in illustration.
I9J011140170-02
I9J011140171-01
I9J011140172-01
“A”
I9J011140023-05
“A”
1
“B”
I9J011140024-04
