Suzuki DF70A Service Manual

Power Unit Mechanical: 1D-26

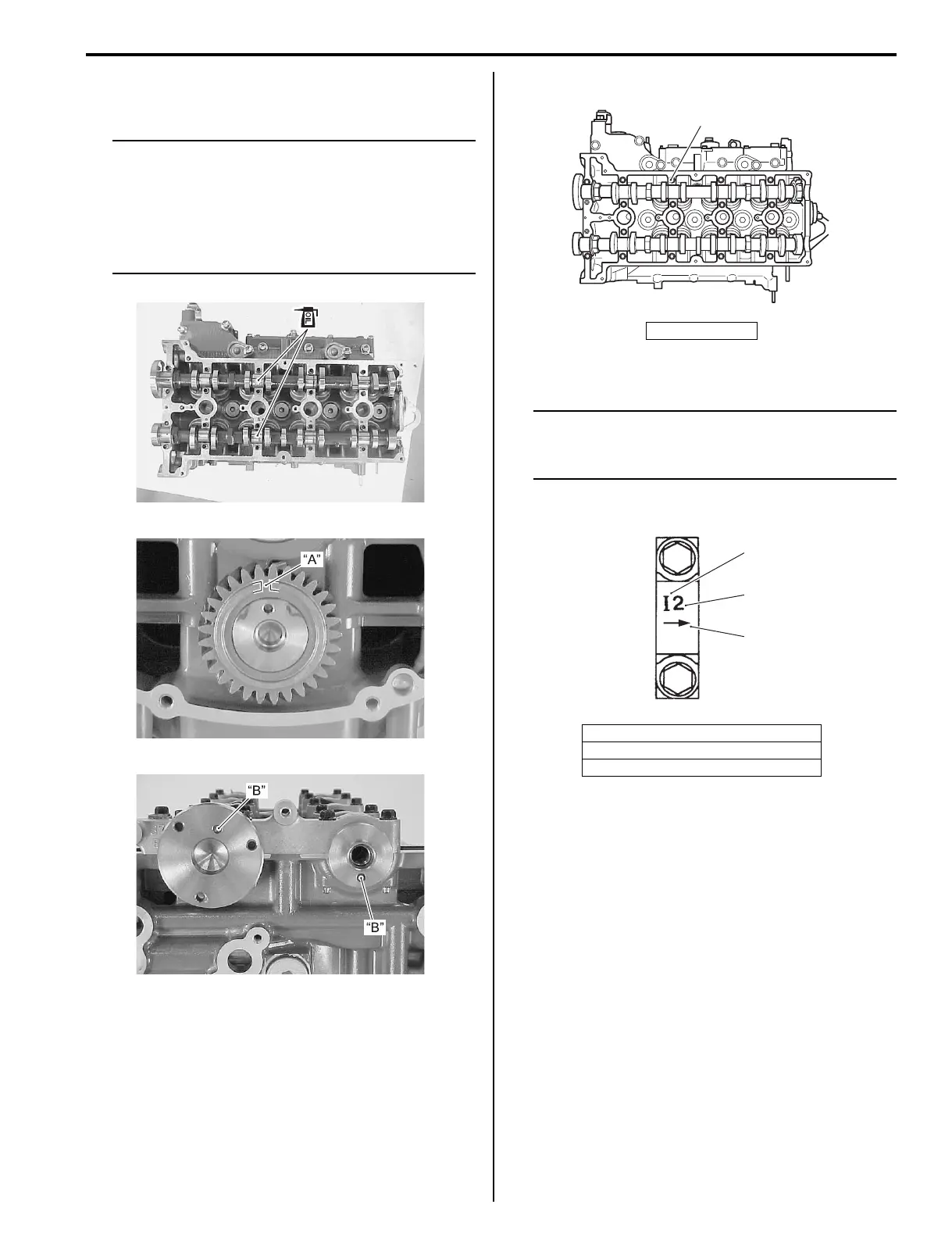

3) Apply engine oil to surface of each camshaft lobe
and journal, then install them.
NOTE
• Before installing camshafts, turn
crankshaft until the match mark “A” on the
crankshaft drive gear points to 12 o’clock
(toward cylinder head).
• Install camshaft so that dowel pin hole “B”
on the camshaft is positioned as shown.
4) Install camshaft housing pins as shown figure.
5) Check position of camshaft housing.
NOTE
Embossed marks are provided on each
camshaft housing indicating position and
direction of installation.
6) Install housing as indicated by these marks.
I9J011140190-01
I9J011140191-01
I9J011140192-01
1. Pin
2. I: Intake side E: Exhaust side
3. Position from flywheel magneto side
4. pointing to flywheel magneto side
1
I9J011140193-05
2
3
4
I9J011140194-03
