Suzuki DF70A Service Manual

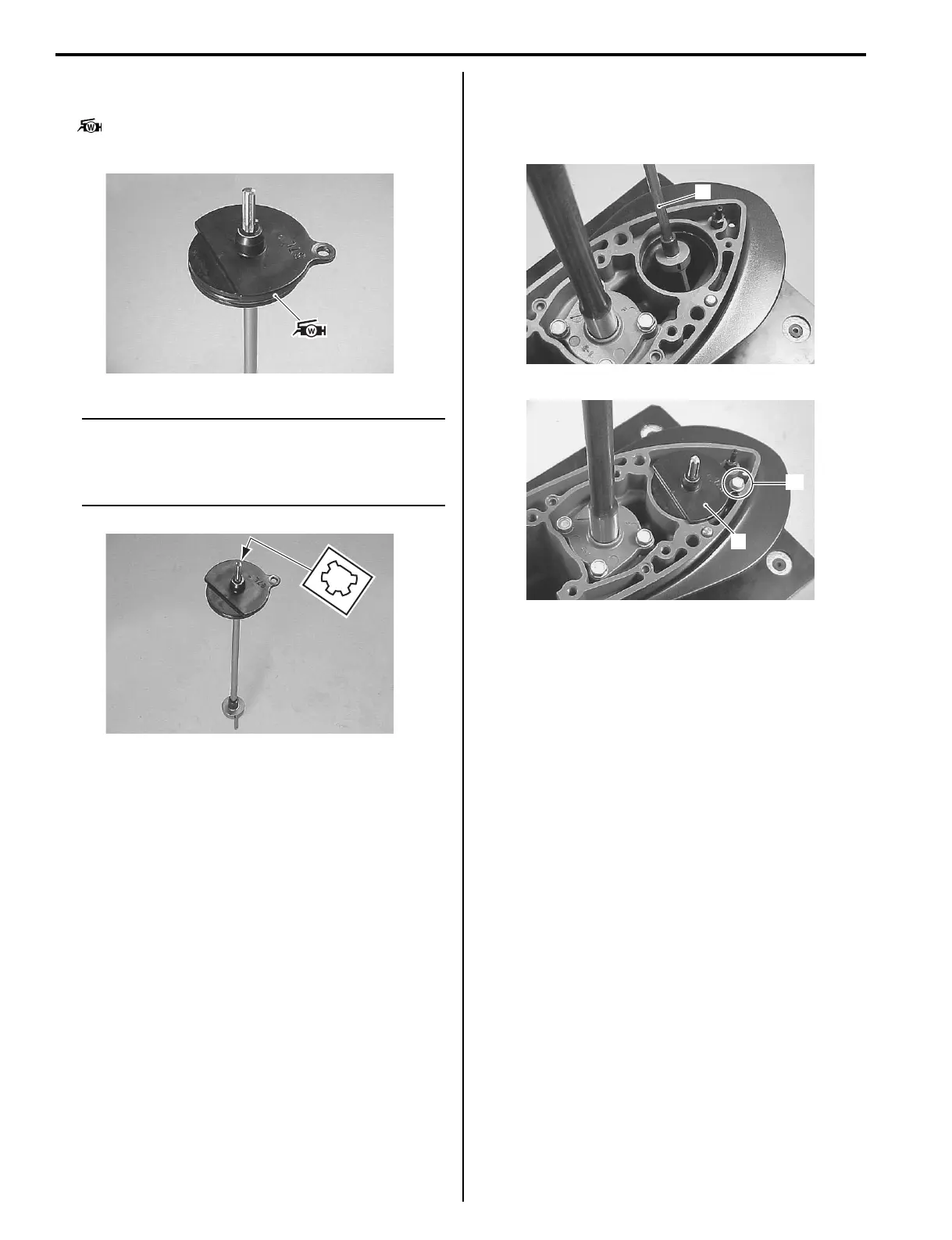

3A-22 Right Hand Rotation Unit:
• Apply water resistant grease to the shift rod guide
housing O-ring.
: Grease 99000–25161 (SUZUKI Water
Resistant Grease (250 g))
NOTE
Before installing the shift rod guide housing
assembly, bring the shifter yoke to the
“Neutral” position by turning the shift rod
right or left.
• Install the shift rod guide housing assembly (9) by
aligning the shifter yoke with the groove in the
connector pin, then tighten the housing bolt (10)
securely.
• Turn the shift rod from the “Neutral” position to the
“Forward” and “Reverse” position to check proper
gear engagement.
Leakage Check
Check for leakage of oil seal and O-ring when applying
specified pressure inside of the gearcase.
1) Install the test tool into the oil level hole.
2) Connect the air pump to the tester.
I9J011310098-01
I9J011310100-01
9
I9J011310101-02
10
9
I9J011310102-01
http://SelfFixer.com

Suzuki DF70A Specifications

General

Engine Type	4-Stroke DOHC 16-Valve
Starting System	Electric
Steering	Remote
Number of Cylinders	4
Maximum Output	70 HP
Alternator	12V 27A
Trim Method	Power Trim and Tilt
Gear Ratio	2.59:1
Exhaust	Through Prop Hub Exhaust
Max Output	70 hp
Ignition System	Fully transistorized ignition
Fuel Tank Capacity	External
Weight	160 kg
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Fuel Type	Unleaded Gasoline
Shaft Length	L: 508 mm, X: 635 mm
Displacement	1, 502 cc
Fuel Delivery System	Multi-point sequential electronic fuel injection
Oil Capacity	4.0 L
Alternator Output	27A
