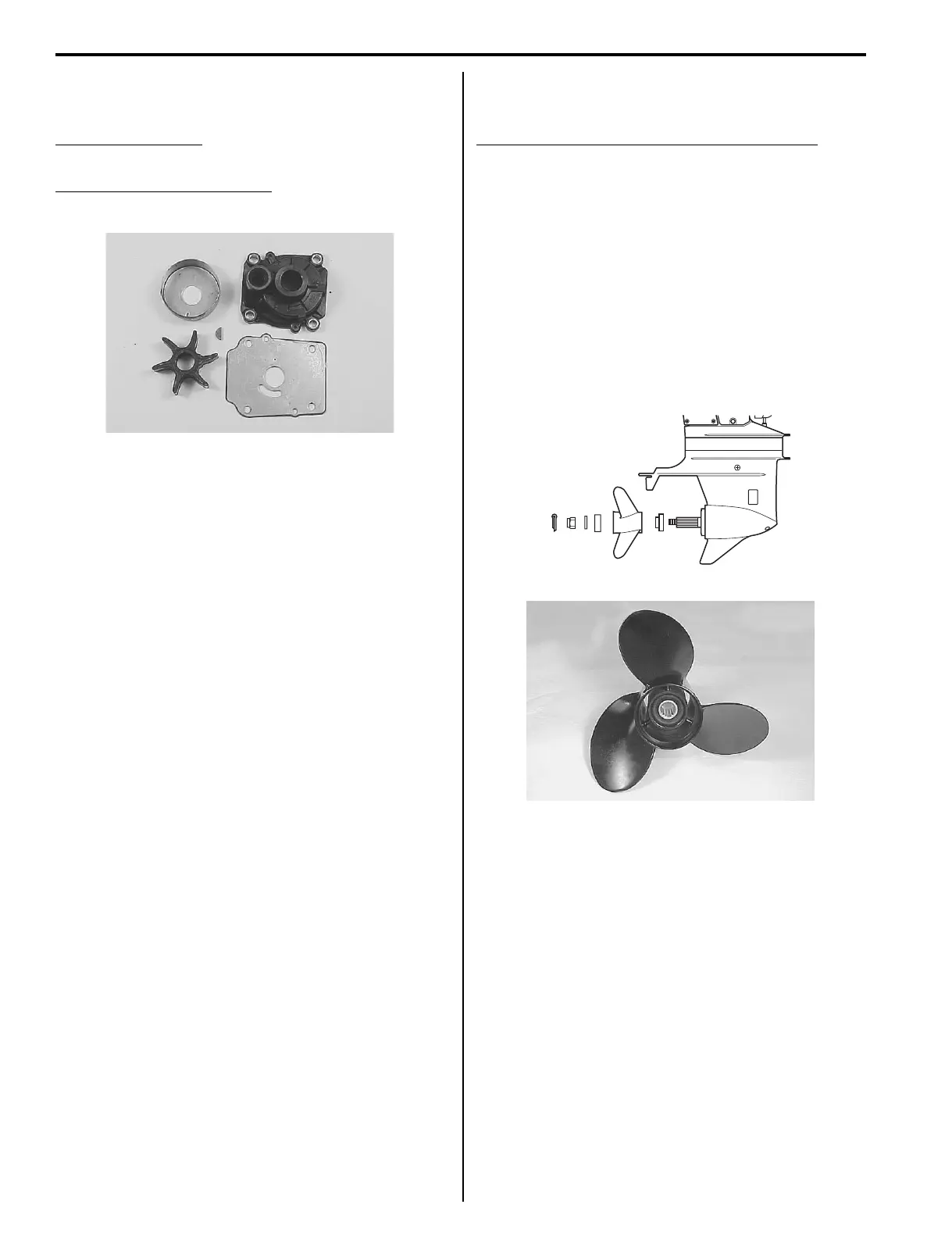

0B-16 Maintenance and Tune-Up:
Water Pump and Water Pump Impeller
Inspection
Z9J0110206046
Inspect water pump
Every 200 hours (12 months)
Replace water pump impeller
Every 200 hours (12 months)
1) Remove the lower unit and water pump case.
Refer to “Water Pump Removal and Installation” in
Section 3A (Page 3A-6).
2) Inspect water pump case, inner sleeve and under
panel. Replace if wear, cracks, distortion or corrosion
is found.
3) Inspect water pump impeller.
Replace if vanes are cut, torn or worn.
SUZUKI recommends that replacing the water pump
impeller every 200 hours (12 months).
4) Assemble the water pump related items.
Refer to “Water Pump Removal and Installation” in
Section 3A (Page 3A-6).
5) Install the lower unit assembly.
Refer to “Lower Unit Removal and Installation” in
Section 3A (Page 3A-5).
Propeller / Propeller Nut and Cotter Pin
Inspection
Z9J0110206047
Inspect propeller / propeller nut and cotter pin
Initially after 20 hours (1 month) and every 100 hours
(6 months).
1) Inspect propeller for bent, chipped or broken blades.
Replace propeller if damage noticeably affects
operation.
2) Remove the propeller.
Refer to “Propeller Removal and Installation” in
Section 3A (Page 3A-4).
3) Inspect propeller splines. Replace propeller if splines
are worn, damaged or twisted.
4) Inspect propeller bush for slippage.
Replace if necessary.
5) Install the propeller and related parts.
Refer to “Propeller Removal and Installation” in
Section 3A (Page 3A-4).
6) Make sure that propeller nut is torqued to
specification and cotter pin is installed securely.
Tightening torque
Propeller nut: 55 N·m (5.5 kgf-m, 40.0 lbf-ft)
I9J011020020-02
I9J011020021-01
I9J011020056-01
To Next Page
