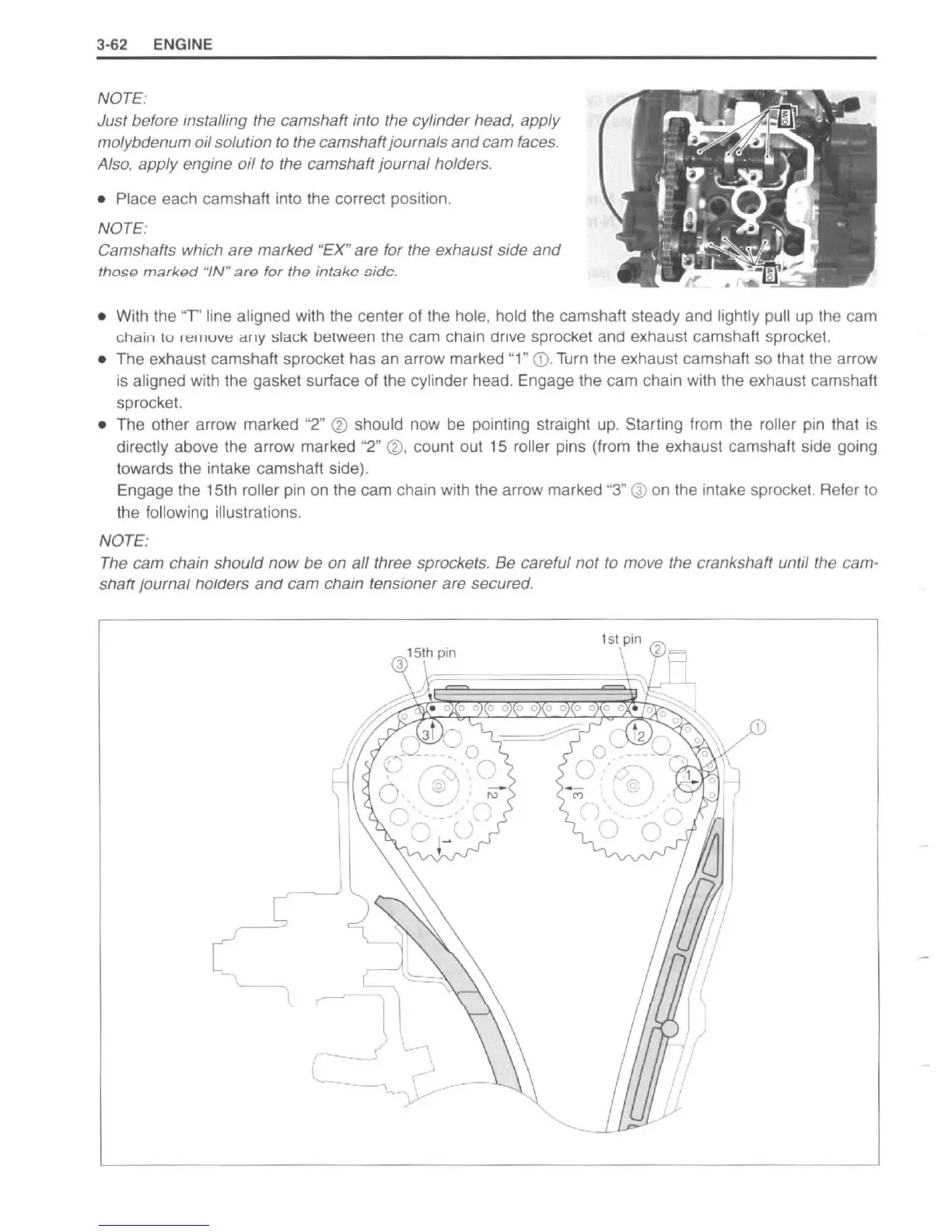

3-62 ENGINE
NOTE."
Just before installing the camshaft into the cylinder head, apply
molybdenum oil solution
to
the camshaft journals
and
cam
faces.
Also, apply engine oil
to
the camshaft journal holders.
• Place each camshaft into the correct position.
NOTE:
Camshafts which are marked "EX" are for the exhaust side and
thOSQ
marked
"I
N "
are
for
the
intako
Dido.
• With the '
'T''
line aligned with the center of the hole, hold the camshaft steady and lightly pull
up
the cam
chain
to
I
""'UV"
,tI
'Y
,,;Iack
between the cam chain arlve sprocKet and exhaust camshaft sprocket.
• The exhaust camshaft sprocket has
an
arrow marked "1"
<D
.
Turn
the exhaust camshaft
so
that the arrow
is
aligned with the gasket surface of the cylinder head. Engage the cam chain with the exhaust camshaft
sprocket.
• The other arrow marked "
2"
(2)
should now
be
pointing straight up. Starting from the roller pin that
is
directly above the arrow marked "2"
(2).
count out
15
roller pins (from the exhaust camshaft side going
towards the intake camshaft side).
Engage the 15th
roller
pin
on
the cam chain with the arrow marked "3" @
on
the intake sprocket. Refer to
the
followina illustrations.
NOTE:
The
cam chain should now be on all three sprockets.
8e
careful not
to
move the crankshaft until the cam-
snarr
JOUrnal
no/aers ana cam cnain tensioner are secured.
15th pin
3
~~~~
