3-40 ENGINE
TRANSMISSION
DISASSEMBLY

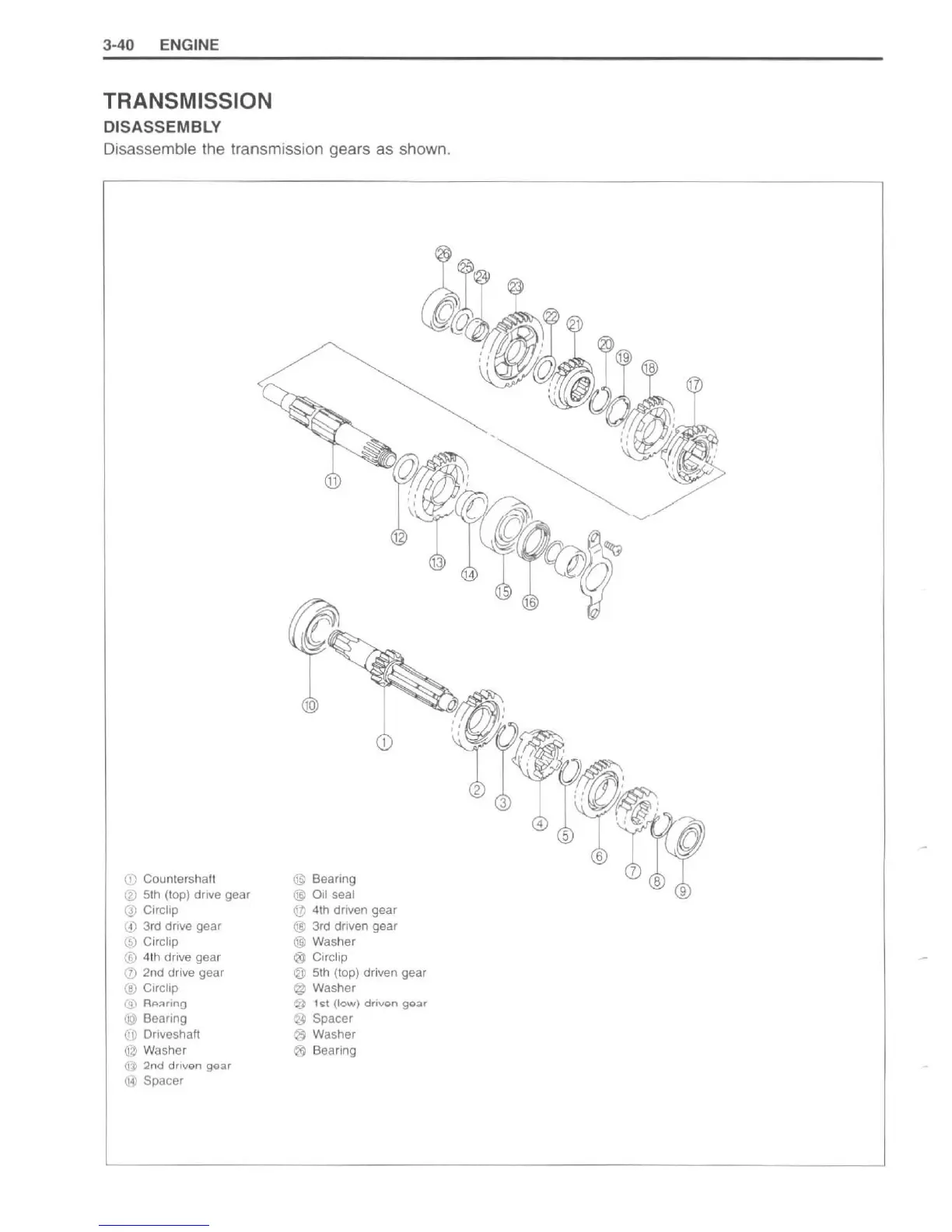

Disassemble the transmission gears as shown.
CD Countershalt
® 5th (top) dnve gear
@ Circilp
~ 3rd drive gear
® Circhp
® 4th drive gear
(J) 2nd drive gear
® Circlip
(.9.1 Rp::arina
OW Bearing
@ Onveshaft
@ Washer
@ 2nd dnv,m 9Qar
Qoj) Spacer
® Bearing
@ Oil seal
@ 4th driven gear
@ 3rd driven gear
@l Washer
@ C.rchp
® 5th (top) driven gear
@ Washer
@ 1 ~t ( low ) drivon g02(
~ Spacer
~ Washer
~ Bearing
