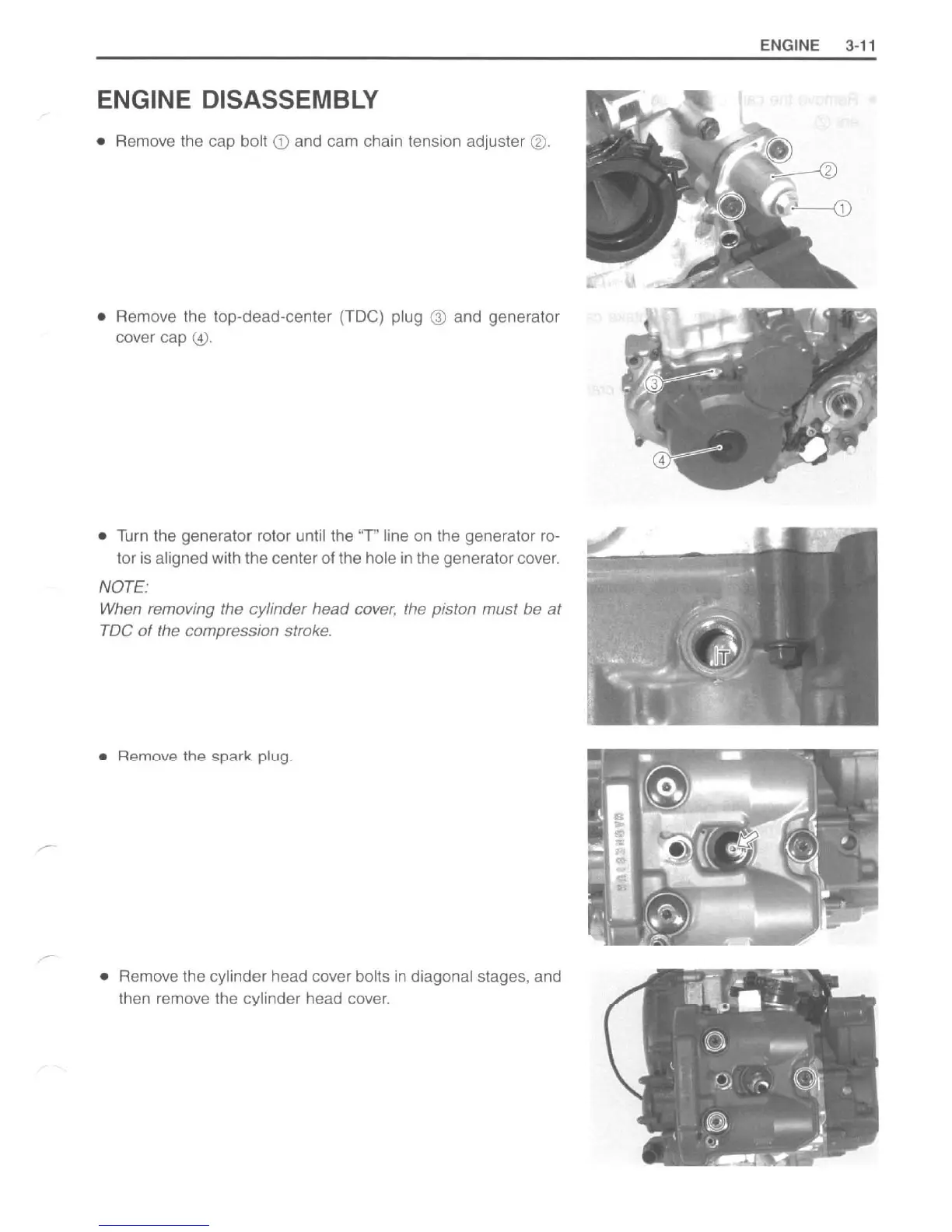

ENGINE DISASSEMBLY
• Remove the cap bolt
CD
and cam chain tension adjuster @.
• Remove the top-dead-center (TDG) plug @ and generator
cover cap
(1).
• Turn the generator rotor until the "
T"
line on the generator ro-
tor
is
aligned with the center of the hole in the generator cover.
NOTE:
When removing the cylinder head
cover,
the piston must be at
TOG
of
the compression stroke.
•
Remove
the
spark
plug.
• Remove the cylinder head cover bolts
in
diagonal stages, and
then remove the cylinder head cover.
