Note: In this photo the Suzuki mechanic is checking the valve tappet
clearance on the EXHAUST STROKE! Ignore this picture!
clearance on the EXHAUST STROKE! Ignore this picture!

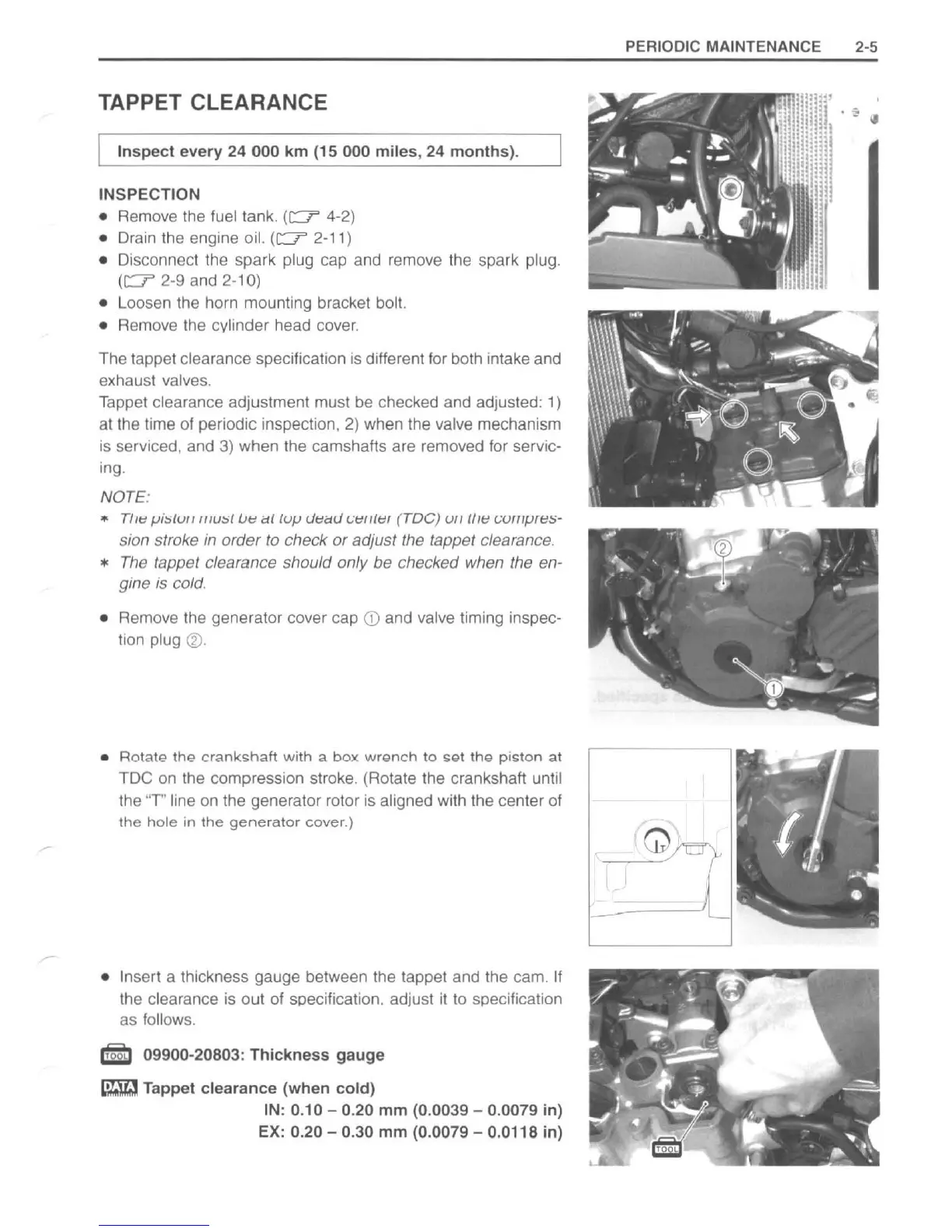

TAPPET CLEARANCE
Inspect
every
24
000
km
(15 000
miles
, 24
months)
.
INSPECTION
• Remove the fuel tank.
(c::7' 4-2)
• Drain the engine oil. (c::7' 2-11)
• Disconnect the spark plug cap and remove the spark plug.
(c:::r
2-9 and 2-10)
• Loosen the horn mounting bracket bolt.
• Remove the cylinder head cover.
The tappet clearance specification is diHerent for both intake and
exhaust valves.
Tappet clearance adjustment must be checked and adjusted:
1)
at the time of periodic inspection. 2) when the valve mechanism
is serviced. and
3) when the camshafts are removed for servic-
ing.
NOTE:
•
Tile
/J;;;luII IIlu;;1
ue
dllu/J
uedu
I;ellle{
(TOe)
UII
/lIe
I;ulrlpres-
sion stroke in
order
to
check or adjust the tappet clearance.
* The tappet clearance should only
be
checked when the en-
gine
is
cold.
• Remove the generator cover cap
CD
and valve timing inspec-
tion plug
®.
•
Rotate
the
crankshaft
with
a
box
wrench
to
set
the
piston
at
TDC on the compression stroke. (Rotate the crankshaft until
the
'
T'
line
on
the generator rotor is aligned with the center of
the
hole in
the
generator
cover
.)
• Insert a thickness gauge between the tappet and the cam. If
the clearance is out of specification. adjust
it
to specification
as follows.
S 09900-20803:
Thickness
gauge
_ Tappet
clearance
(when
cold)
IN: 0.10 - 0.20
mm
(0.0039 - 0.0079 in)
EX: 0.20 - 0.30
mm
(0.0079 - 0.Q118 in)
PERIODIC MAINTENANCE
2-5
'-,-----'
