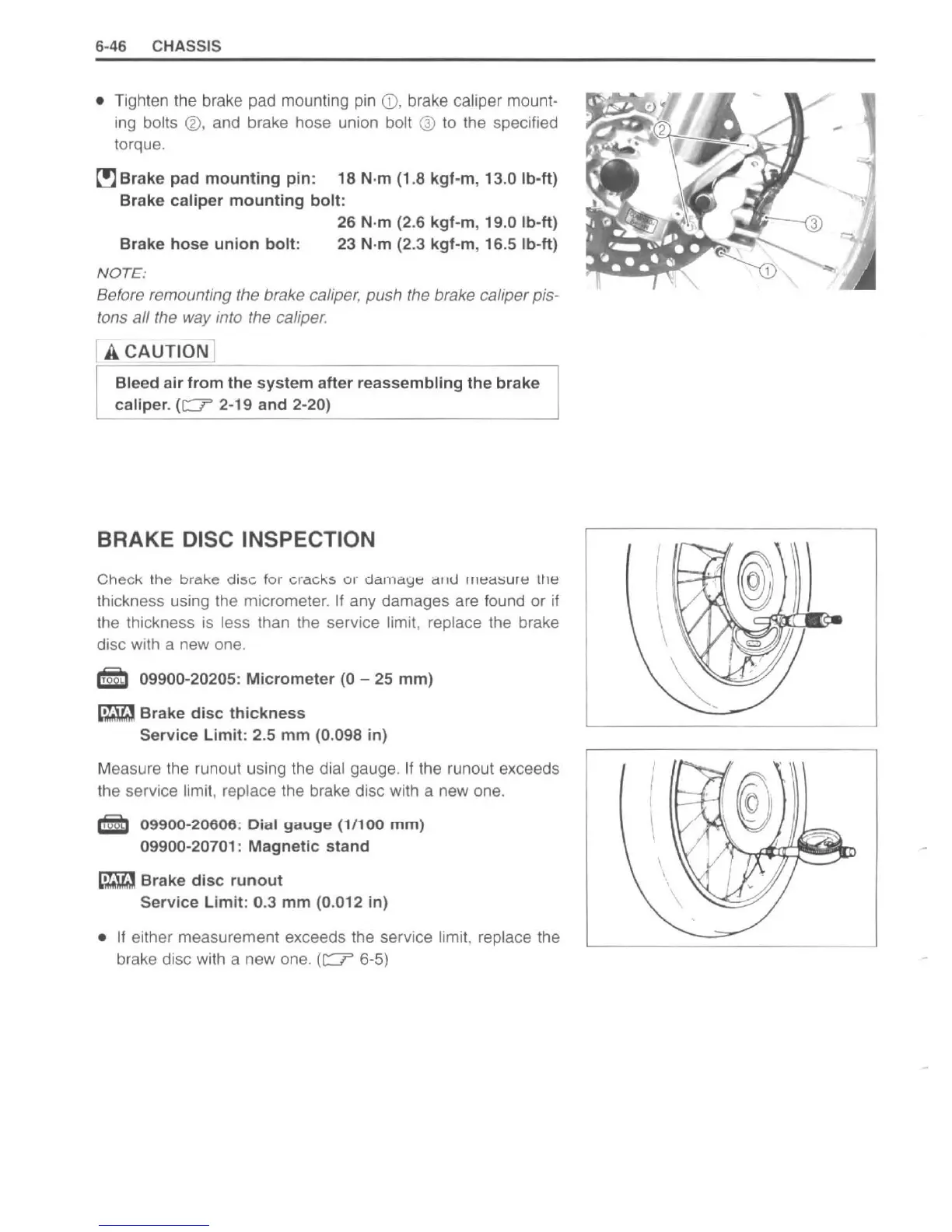

6-46 CHASSIS
•
Ti ghten the brake pad mounting pin CD, brake caliper mount-
ing
bolts ®, and brake hose union bolt @ to the specified
torque.
~ Brake pad mounting pin: 18 N,m (1 .8 kgf -m, 13.0 Ib-ft)
Brake caliper mounting bolt :
26 N·m (2.6 kgf-m, 19.0 Ib-ft)
Brake hose union bolt : 23 N·m (2 .3 kgf-m, 16.5 Ib-ft)
NOTE:
Before remounting the brake caliper, push the brake caliper pis-
tons all the way into the caliper.
[A CAUT iO N]
Bleed air from the system after reassembling the brake
caliper . ( c:::r 2-19 and 2-20)
BRAKE DISC INSPECTION
Check the brake disc for cracks or dan1dyt: allU 111t:C1:::1ure ti le
thickness using the micrometer. If any damages are found or if
the thickness is less than the service limit, replace the brake
disc with a new one.
51 09900-20205: Micrometer (0 - 25 mm )
~ Brake dis c thickness
Service Limit : 2.5 mm (0.098 in)
Measure the runout using the
dial gauge. If the runout exceeds
the service
limit, replace the brake disc with a new one.
S 09900-20606 : Dial yaug e (11 100 mm )
09900-20701 : Magnetic stand
~ Br ake disc run out
Service Limit: 0.3 mm (0.012 in)
• If either measurement exceeds the service limit, replace the
brake disc with a new one.
(c:::r 6-5)
(
\
,
