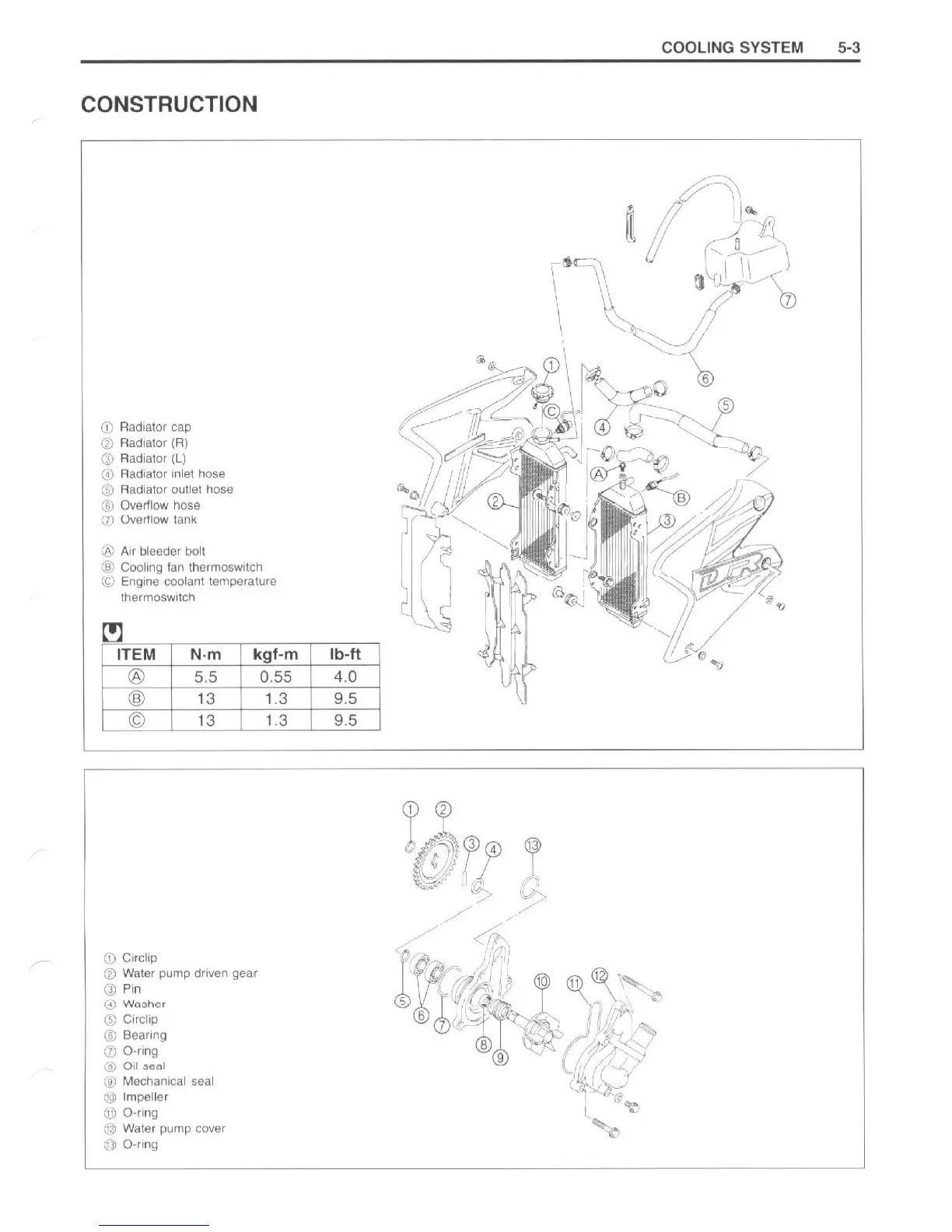

CONSTRUCTION
CD Radiator cap
® Radiator (R)
@ Radiator (L)
o Radiator inlet hose
® Radiator outlet hose
® Overllow hose
CV Uverllow tank
® AIr bleeder bolt
@ Cooling fan thermoswitch
© Engine coolant temperature
Ihermoswilch
ITEM
N·m
kgf-m
®
5.5
®
13
©
13
CD Circlip
® Water pump driven gear
(j) Pin
o Waohcr
® Clrclip
® Bearing
o Q-ring
@ Oil ~oal
® Mechanical seal
@ Impeller
@ O'rlng
@ Water pump cover
@ O-nng
0.55
1.3
1.3
Ib-ft
4.0
9.5
9.5
\ ~
\
