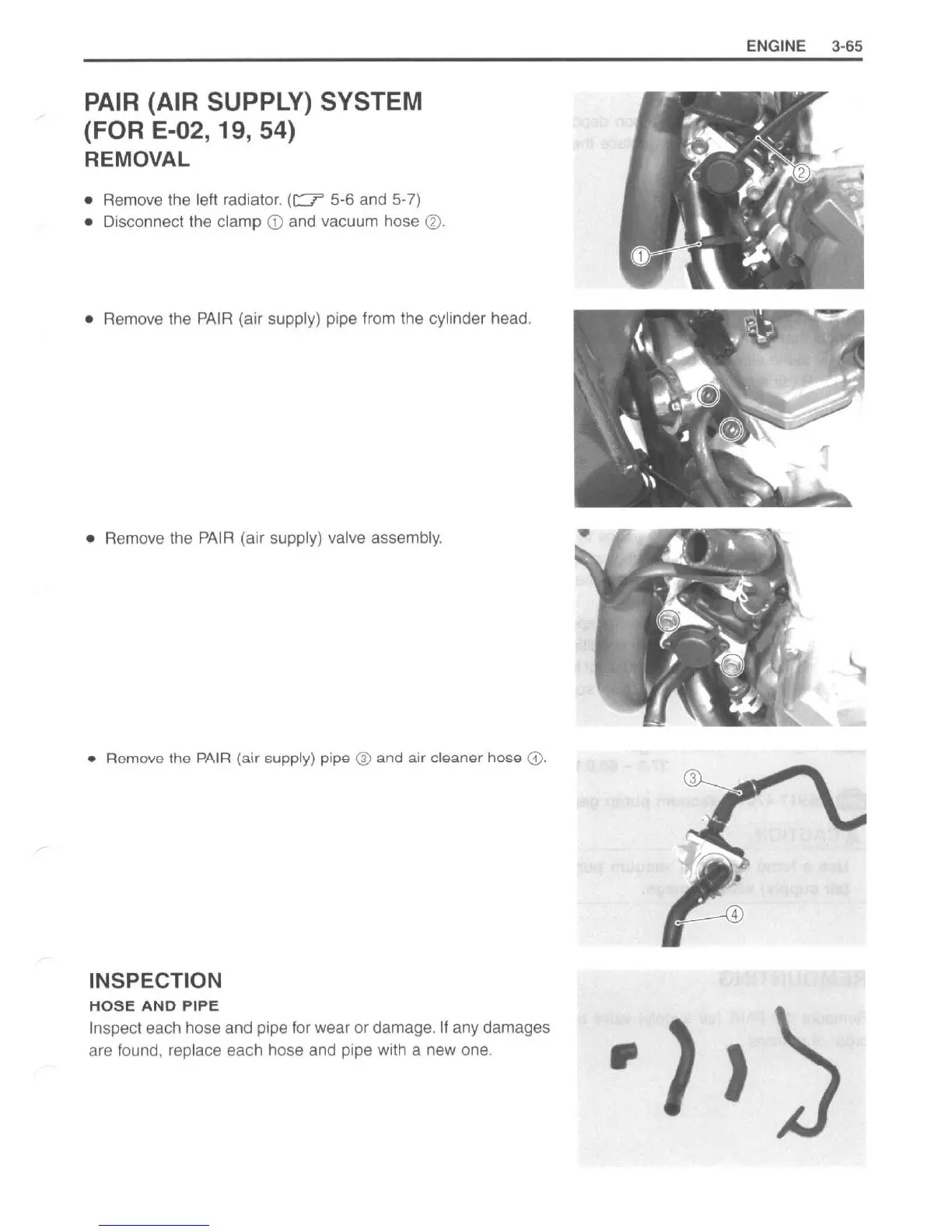

PAIR (AIR SUPPLY) SYSTEM
(FOR E-02, 19, 54)
REMOVAL
• Remove the left radiator. (c::::T' 5·6 and 5·7)
•
Disconnect the clamp CD and vacuum hose ill·
• Remove the PAIR (air supply) pipe from the cylinder head.
• Remove the PAIR (air supply) valve assembly.
• Remove the PAIR (air supply) pip" @ and air cl"an"r hos" CD .
INSPECTION
HOS E AND PIPE
Inspect each hose and pipe for wear or damage. If any damages
are found,
replace each hose and pipe with a new one.
ENGINE 3·65
•
)
