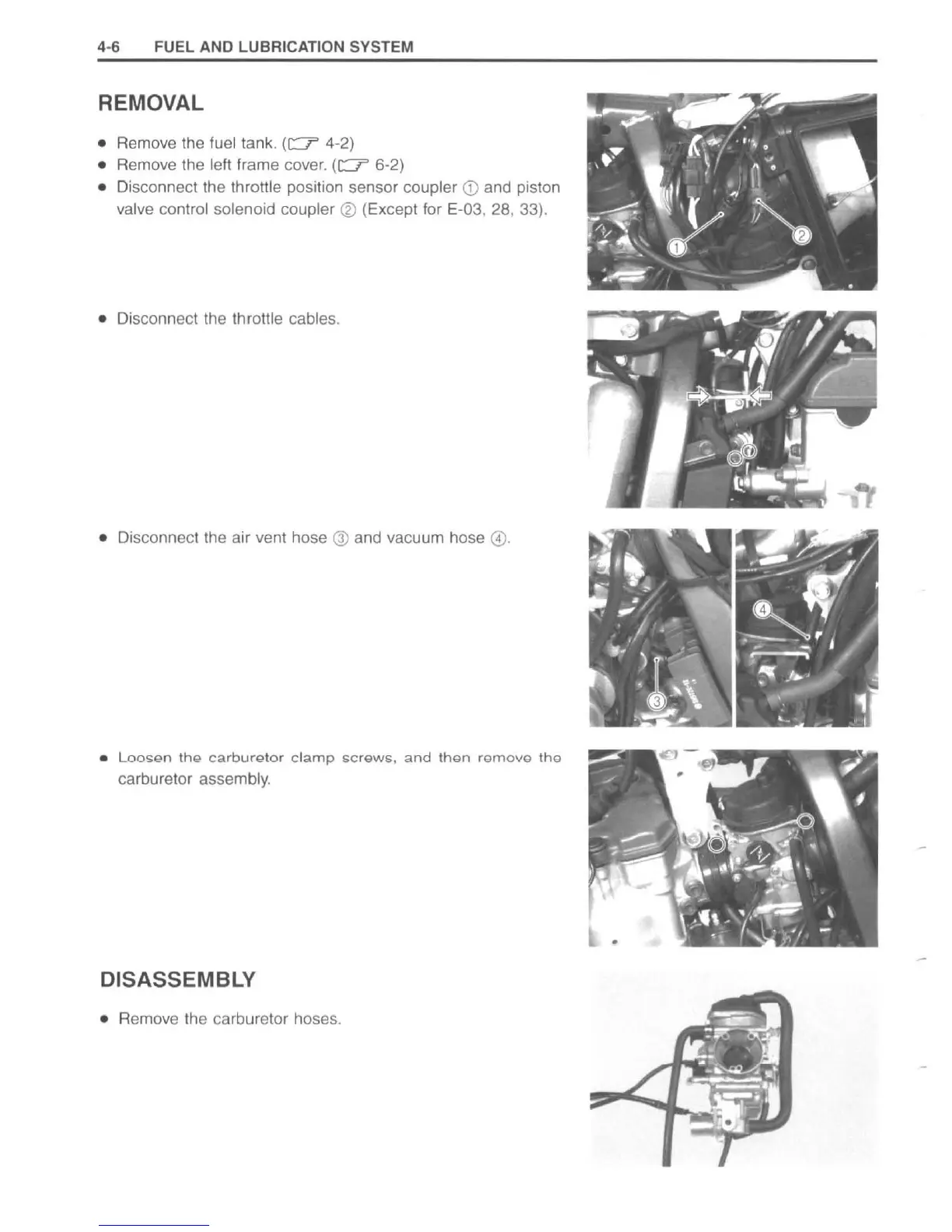

4-6 FUEL AND LUBRICATION SYSTEM
REMOVAL
• Remove the fuel tank. (c::7' 4-2)
• Remove the left frame cover. (c::7' 6-2)
• Disconnect the throttle position sensor coupler CD and piston
valve control solenoid coupler
® (Except for E-03, 28, 33).
• Disconnect the throttle cables.
• Disconnect the air vent hose 0) and vacuum hose @.
• Loosen the carburetor clamp screws , and thc;m remove the
carburetor assembly.
DISASSEMBLY
• Remove the carburetor hoses.
