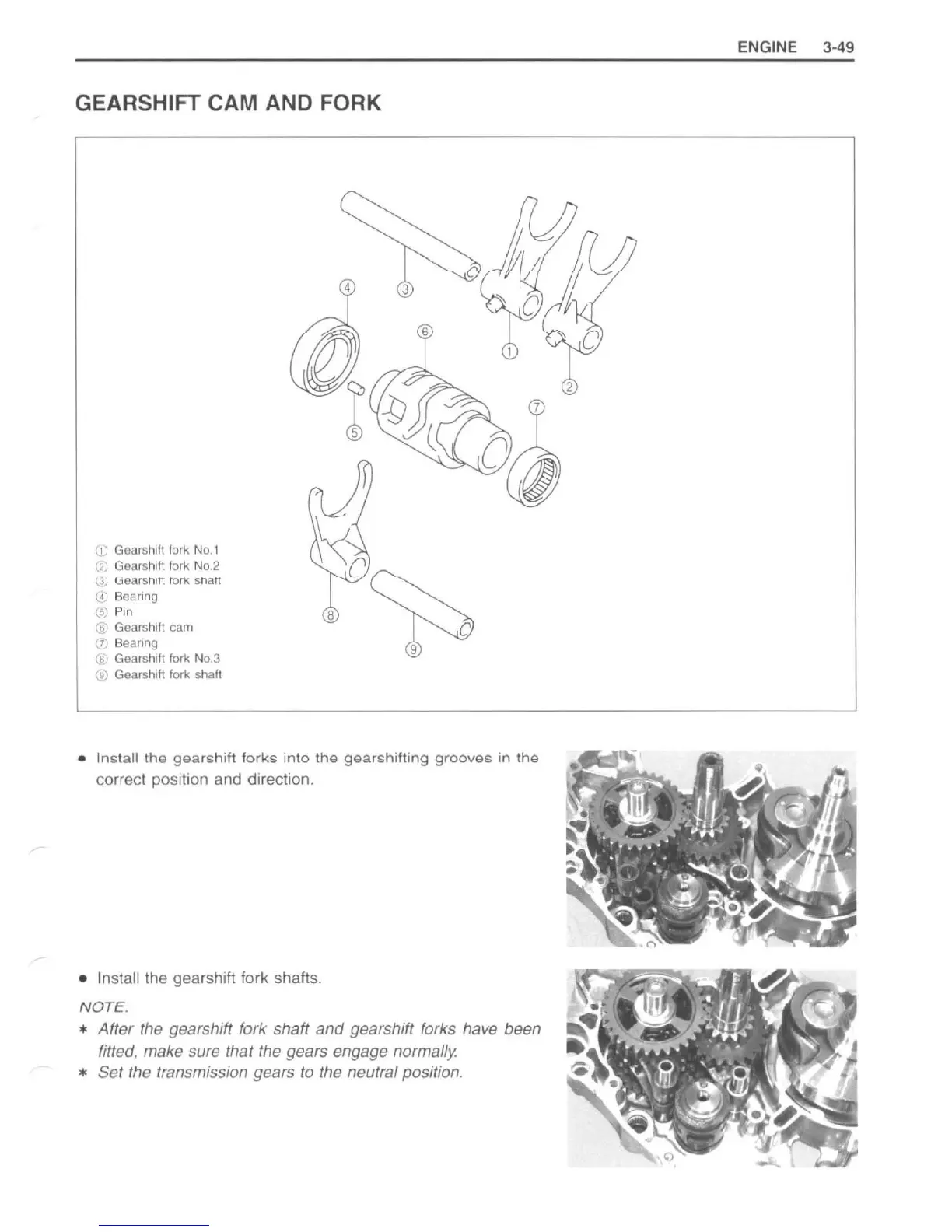

GEARSHIFT CAM AND FORK
co Gear shlf l fork N o. 1
(1) Gearshi ft fork N o.2
Q) liea rs nm fOr I< snail
(1) Bearing
® P in
® Gearsh ift cam
ill Bearing
® Gea rshi ft fo rk N O.3
® Gears h ift fork shaft
• Install the gearsh i ft forks into the gear shifting groove s in the
correct posilion and direclion.
• In stall the gearshift fork shafts.
N OTE .
* After the gearshift fork shaft and gearshift forks have been
fitted, make sure tha t the gears engage normally.
* Set th e transmission gears to the neutral position.
ENGINE 3-49
