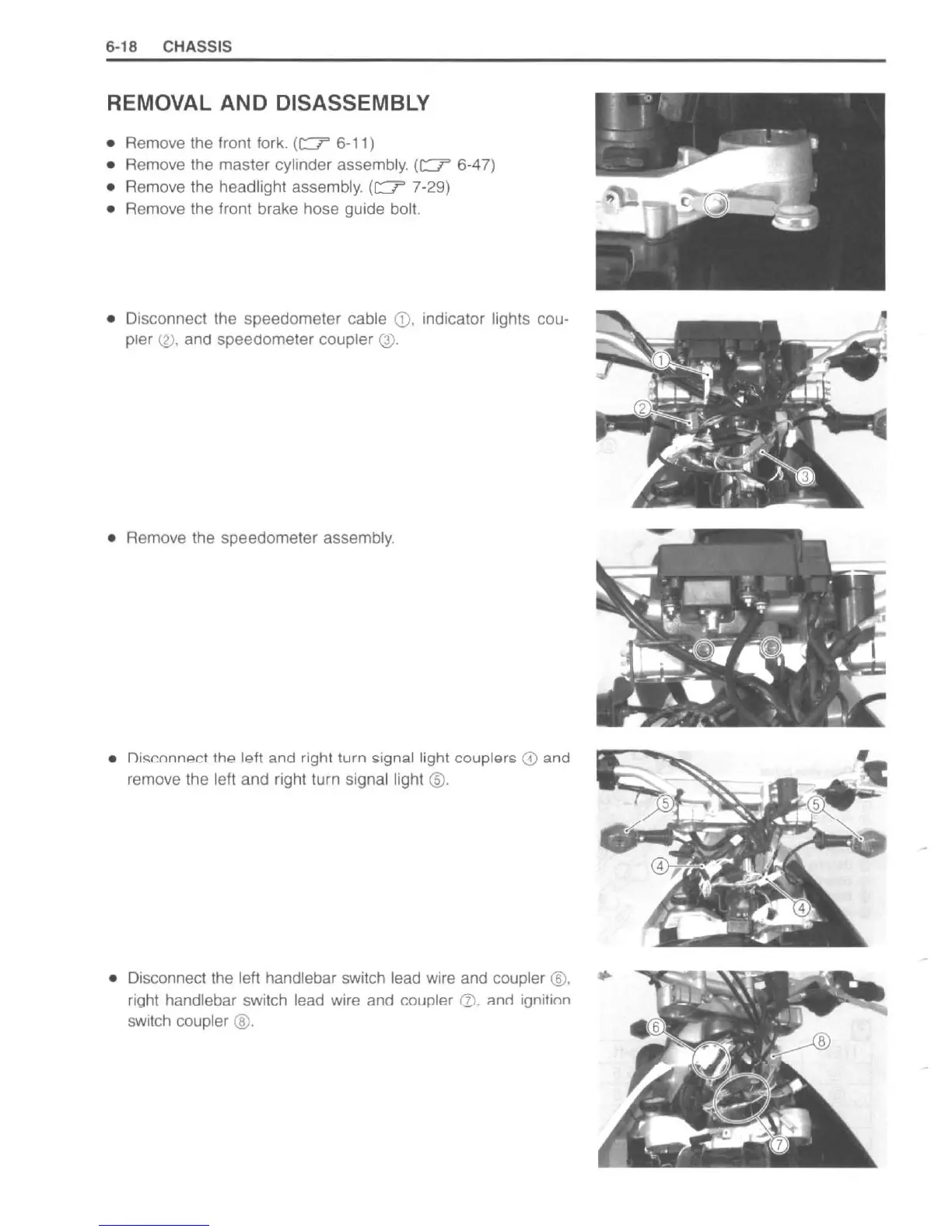

6-18 CHASSIS
REMOVAL AND DISASSEMBLY
• Remove Ihe lront lork.
(c:::r
6-11)
• Remove the master cylinder assembly (c:::r 6-47)
• Remove Ihe headlight assembly. (c:::r 7-29)
• Remove the Iront brake hose guide bolt.
•
Disconnect the speedometer cable
CD.
indicator lights cou-
pler
(6). and speedometer coupler
@.
• Remove the speedometer assembly.
•
ni~r.nnnect
the
left
and
right turn signal light
couplers
CD
and
remove the left and right turn signal light
@.
• Disconnect the left handlebar switch lead wire and coupler
®.
rioht handlebar switch lead wire and
counl",
0.
"nri
ionition
switch coupler
®.
