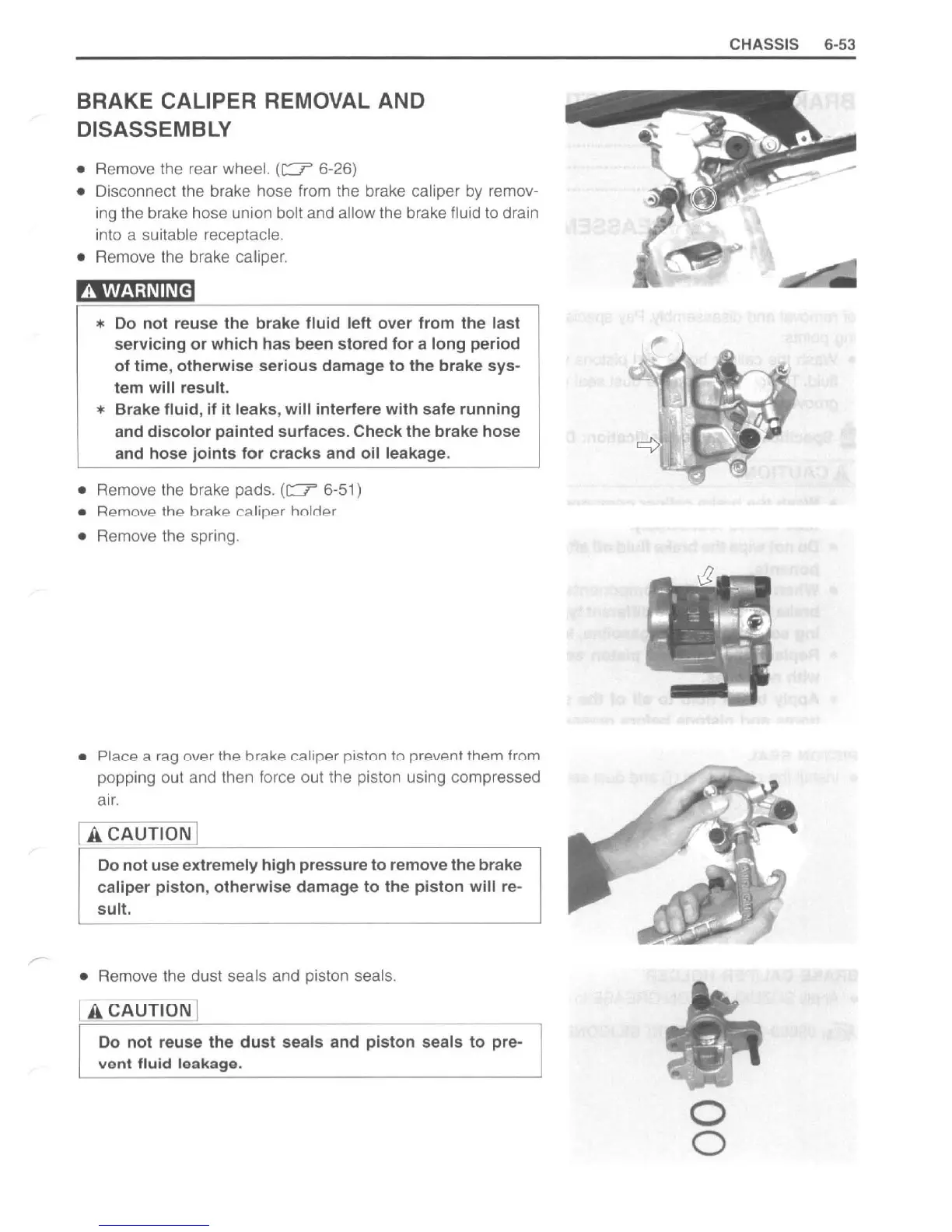

BRAKE CALIPER REMOVAL AND
DISASSEMBLY
• Remove the rear wheel.
(c:7'
6-26)
• Disconnect the brake hose from the brake caliper
by
remov-
ing the brake hose union bolt and allow the brake fluid to drain
into a
suitable receptacle.
• Remove the brake caliper.
A WARNING
* Do
not
reuse the brake
fluid
left
over
from
the
last
servicing
or
which
has been
stored
for
a
long
period
of
time
,
otherwise
serious
damage
to
the brake sys-
tem
will
result.
* Brake
fluid
,
if
it
leaks,
will
interfere
with
safe
running
and
discolor
painted
surfaces
. Check the brake hose
and hose
joints
for
cracks
and
oil leakage.
• Remove the brake pads.
(c:7'
6·51)
• R
emove
the
brake
caliper
holder
• Remove the spring.
•
Place
a r
ag
over
the
brake
caliper
pistnn tn
pn::~vent
them
frnm
popping out and then force out the piston using compressed
air.
I A CAUTIOrll]
Do
not
use extremely high pressure
to
remove the brake
caliper
piston
,
otherwise
damage
to
the
piston
will
re-
sult.
• Remove
th
e dust seals and piston seals.
I
ACAUTION
!
Do
not
reuse
the
dust
seals
and
piston
seals
to
pre-
vent
fluid
le
a
kage.
o
o
CHASSIS 6-
53
