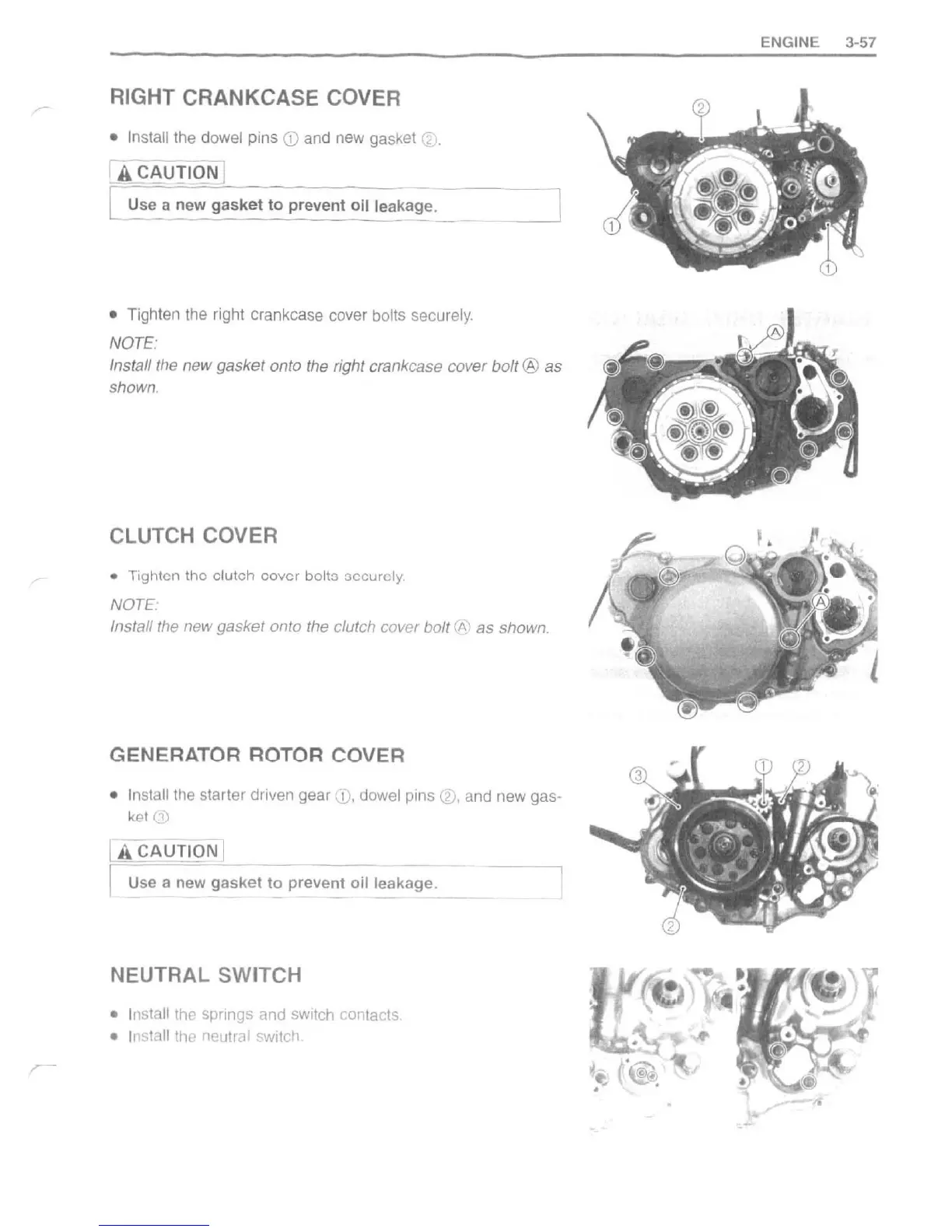

RIGHT CRANKCASE COVER
• In stali lhe dowel pins (j) and new gaskel 0.
i4
CA
UTIoN J
I Use a new gasket to prevent oil leakage_. __
• Tighten Ihe right crankcase cover bolts securely.
NOTE :
------'
Install the new gasket onto the right crankcase cover bolt ® as
shown.
CLUTCH COVER
• Tighten the clutch cover boltG Gccurely.
NOTE. ·
Install the new gasket onto the clutch cover bolt (A) as shown.
GENERATOR ROTOR COVER
• Install the starter driven gear \1), dowel pins 0, and new gas-
ket @
lA.fAUTION J
I Use a new ~ ga '- S - k - e - t - to - p - re - v - e - n - t -o- illeakage.
NEUTRAL SWITCH
• I nstall the spnngs and switch contacts
• I nstall the neutra switch
ENGINE 3-57
