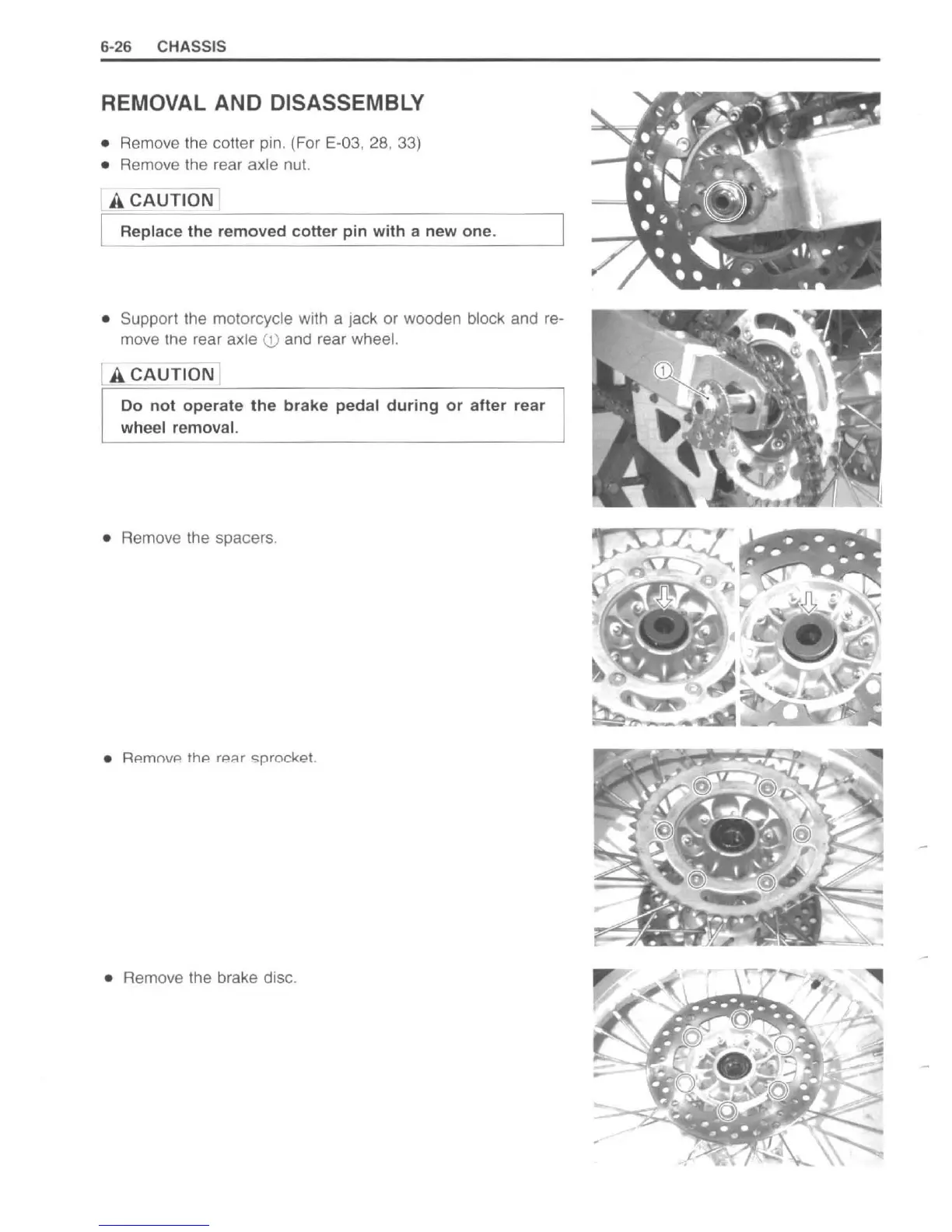

6·26 CHASSIS
REMOVAL AND DISASSEMBLY
• Remove the cotter pin. (For E·03, 28 , 33)
• Remove the rear axle nut.
[A CAUTION ]
Replace the removed cotter pin with a new one.
• Support the motorcycle with a jack or wooden block and re·
move me rear axle Q) and rear wheel.
[A CAUTION [
Do not operate the brake pedal during or after rear
wheel removal.
•
Rem ove the spacers.
• RAmnVp. thp. r~:H c;procket.
• Remove the brake disc.
