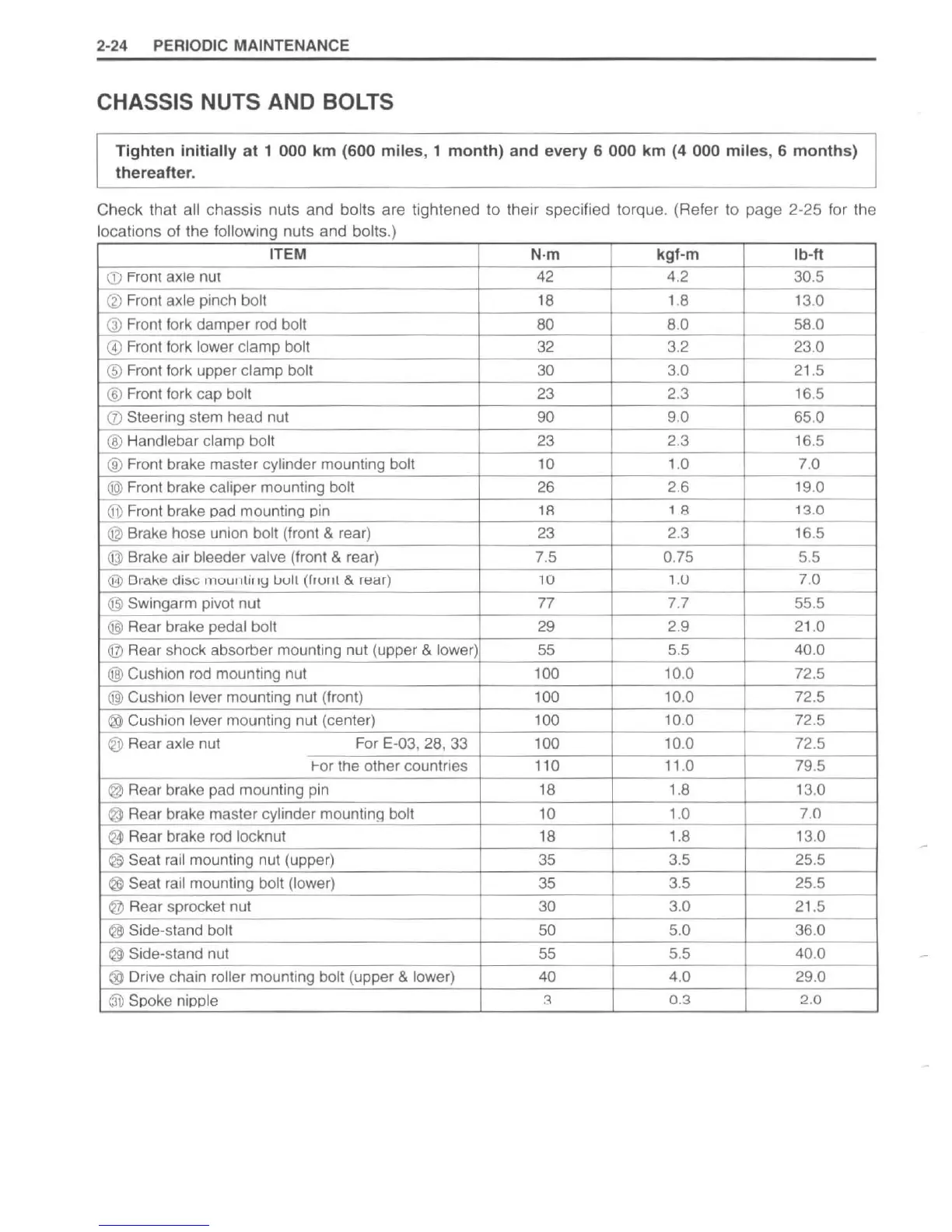

2-24 PERIODIC MAINTENANCE
CHASSIS NUTS AND BOLTS
Tighten initially
at
1 000 km
(600
miles, 1 month) and every 6 000 km (4 000 miles, 6 months)
thereafter.
Check
that
all
chassis
nuts
and
bolts are tightened to their specified torque. (Refer to
page
2-25 for the
locations of the following nuts and bolts.)
ITEM
N·m
kgf-m
Ib
-
It
CD
From axle nUl
42 4
.2
30.5
@
Front axle pinch bolt
18
1.8 13.0
@ Front fork damper rod bolt
80
8.0 58.0
@
Front fork lower clamp bolt 32
3.2
23.0
® Front fork upper clamp bolt 30
3.0
21
.5
® Front fork cap bolt 23 2.3 16.5
(J)
Steering stem head nut 90
9.0
65.0
® Handlebar clamp bolt
23 2.3 16.5
® Front brake master cylinder mounting bolt
10
1.0 7.0
@l
Front brake caliper mounting bolt 26
2.6
19.0
® Front brake pad mountino pin
1R
1 B
13
.0
@ Brake hose union bolt (front & rear) 23 2.3 16.5
@ Brake air bleeder valve (front & rear) 7.5
0.75
5.5
@ Brak.e di5C rnuulllir
ry
Gull
(huill
& rectr)
10
,
.U
7.0
@
Swingarm pivot nut
77
7.7
55.5
@ Rear brake pedal bolt 29 2.9 21.0
@
Rear shock absorber mounting nut (upper & lower)
55
5.5
40.0
@ Cushion rod mounting nut
100 10
.0
72.5
@ Cushion lever mounting nut (front) 100 10
.0
72.5
@ Cushion lever mounting nut (center) 100 10.0 72.5
@ Rear axle nut For E-03, 28, 33 100 10
.0
72.5
t-or the other countries 110
11
.0 79.5
@ Rear brake pad mounting pin
18
1.8 13.0
@ Rear brake master cylinder mountinQ bolt
10
1.0
7.0
~
Rear brake rod locknut 18 1.8
13
.0
® Seat
rai
l mounting nut (upper) 35
3.5 25.5
@ Seat rail mounting bolt (lower)
35
3.5 25.5
@ Rear sprocket nut
30
3.0
21.5
@ Side-stand bolt 50 5.0 36.0
@ Side-stand nut
55
5.5 40.0
@
Drive chain roller mounting bolt (upper & lower) 40 4.0 29.0
6V
Spoke nipple
::\
0.3
2.0
