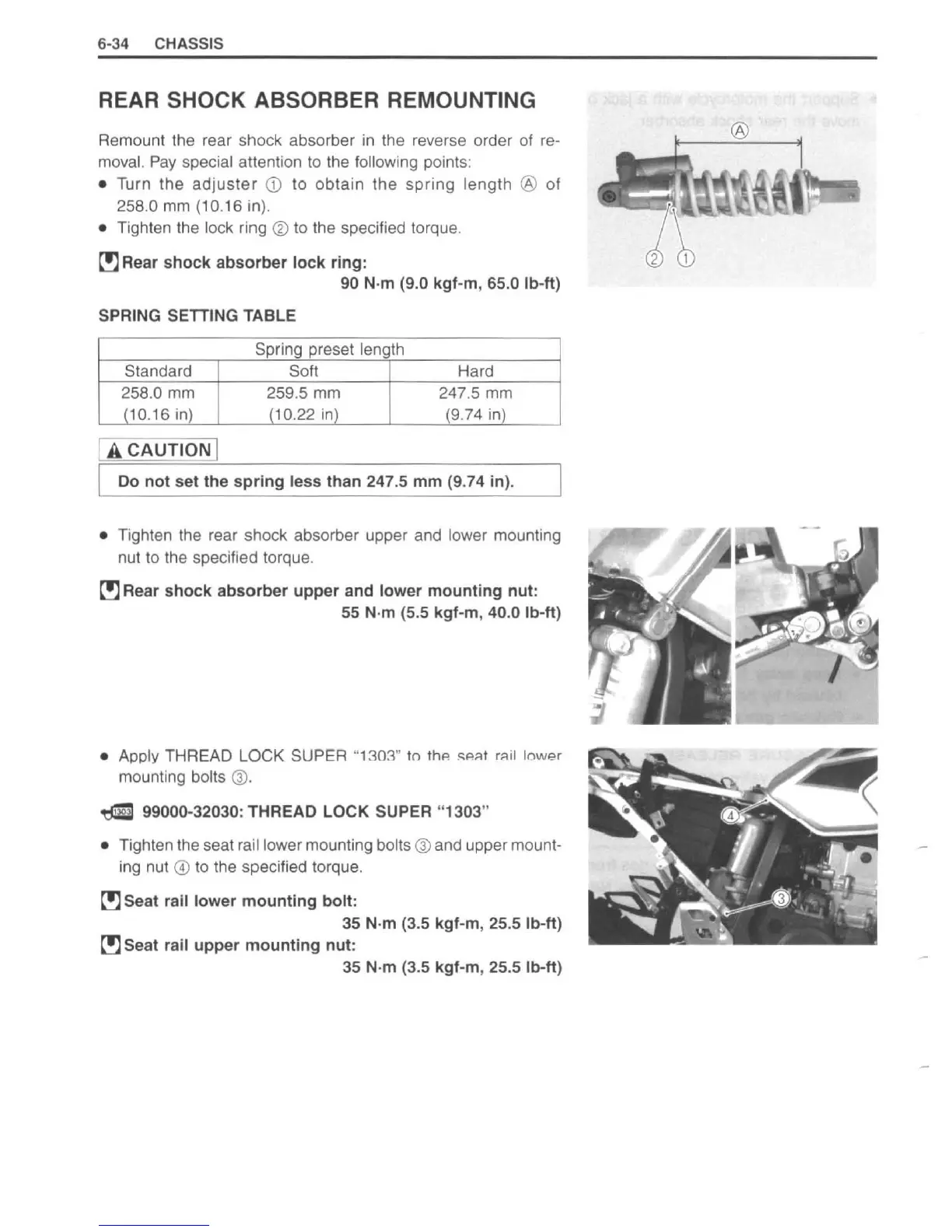

6-34 CHASSIS
REAR SHOCK ABSORBER REMOUNTING
Remount the rear shock absorber in the reverse order of re-
mova l. P ay special attention to t he following points:
• Turn the ad juster Q) to obtai n the spring length ® of
258.0 mm (10.16 in).
• Tighten the l ock ri ng @ to the specif ied torque.
~ Rear shock absorber lock ring:
90 N·m (9.0 kgf-m, 65 .0 Ib-ft)
SPRING
SETIING TABLE
Spring preset length
Standard Soft
Hard
258.0 mm 259.5 mm 247 .5 mm
(10.16 in) J 1 0.22 in) (9.74 in)
! A CAUTION]
Do not set the spring less than 247.5 mm (9. 74 in).
• Tighten the rear shock absorber upper and lower mounting
nu t to t he specified torque.
~ Rear shock absorber upper and lower mounting nut :
55
N·m (5.5 kgf-m, 40.0 Ib-ft)
•
Apply THREAD LOCK SUPER " 1303 " to th" """I ,,,il lower
mount ing bolts @.
• 99000-32030:
THREAD LOCK SUPER "1303"
•
Tighten the seat rail lower mou nting bolts @ and upper mount-
in g nut @ to the specifi ed torqu e.
(!l Seat rail lower mounting bolt:
35 N·m (3 .5 kgf -m, 25 .5 Ib-ft)
(!l Seat rail upper mounting nut:
35 N·m (3.5 kgf-m, 25 .5 Ib-ft)
