4-8 FUEL AND LUBRICATION SYSTEM

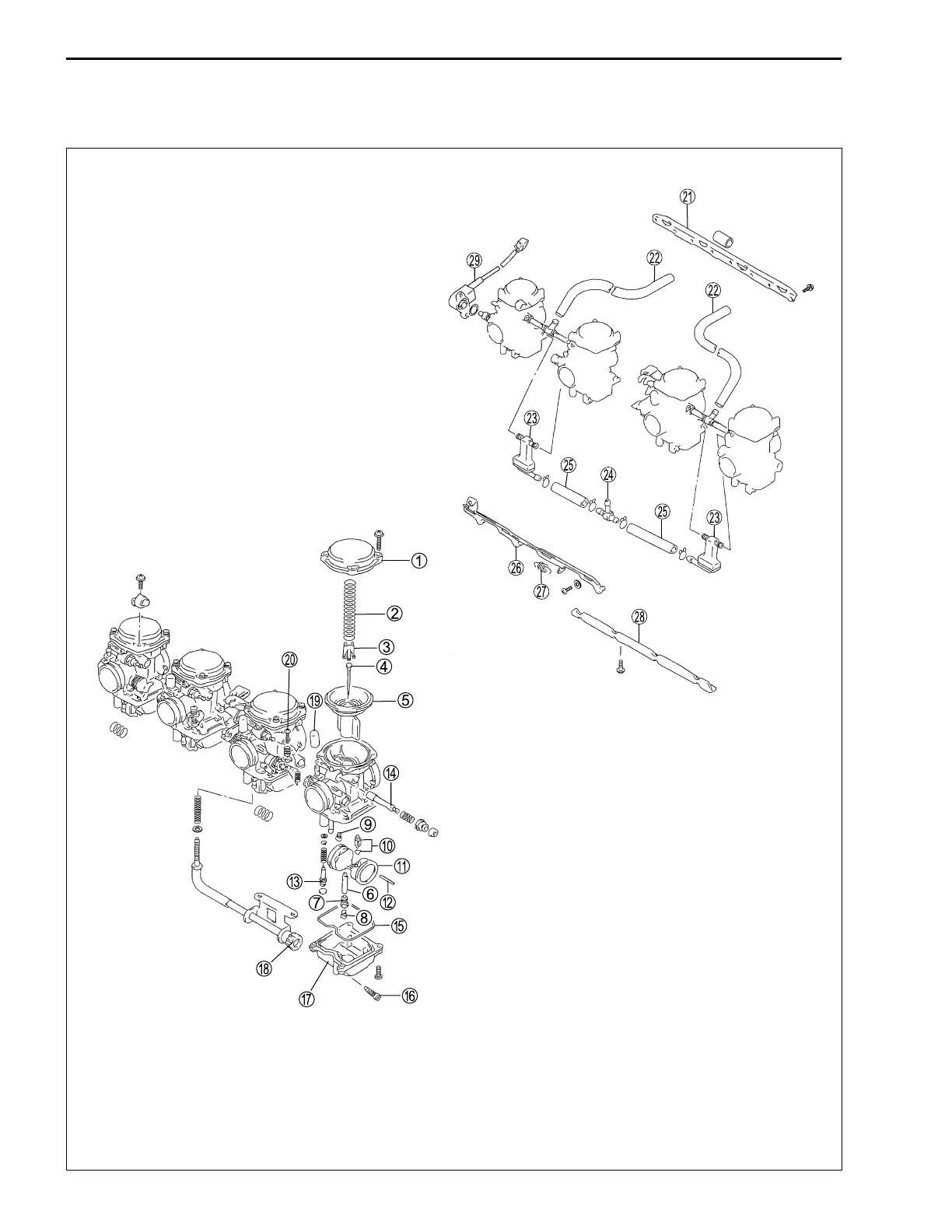

CARBURETOR
CONSTRUCTION
1 Top cap 9 Pilot jet G Float chamber N Fuel joint pipe
2 Spring 0 Needle valve ass’y H Throttle stop screw O Hose
3 Spring seat A Float I Vacuum inlet cap P Starter (enricher) plate
4 Jet needle B Float pin J Throttle valve synchronizing Q Spring
5 Diaphragm/piston valve C Pilot screw screw R Carburetor set plate
6 Needle jet D Starter (enricher) plunger K Carburetor set plate (upper) (lower)
7 Needle jet holder E Gasket (O-ring) L Air vent hose S Throttle position sensor
8 Main jet F Drain screw M Fuel joint set

Suzuki GSX1200 1999 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Starting	Electric
Engine Type	4-stroke, 4-cylinder, DOHC
Fuel System	Mikuni BSR36SS carburetors
Transmission	5-speed
Rear Suspension	Link-type, coil spring, oil damped
Ground Clearance	135 mm
Seat Height	790 mm
