6-38 ELECTRICAL SYSTEM
RELAYS

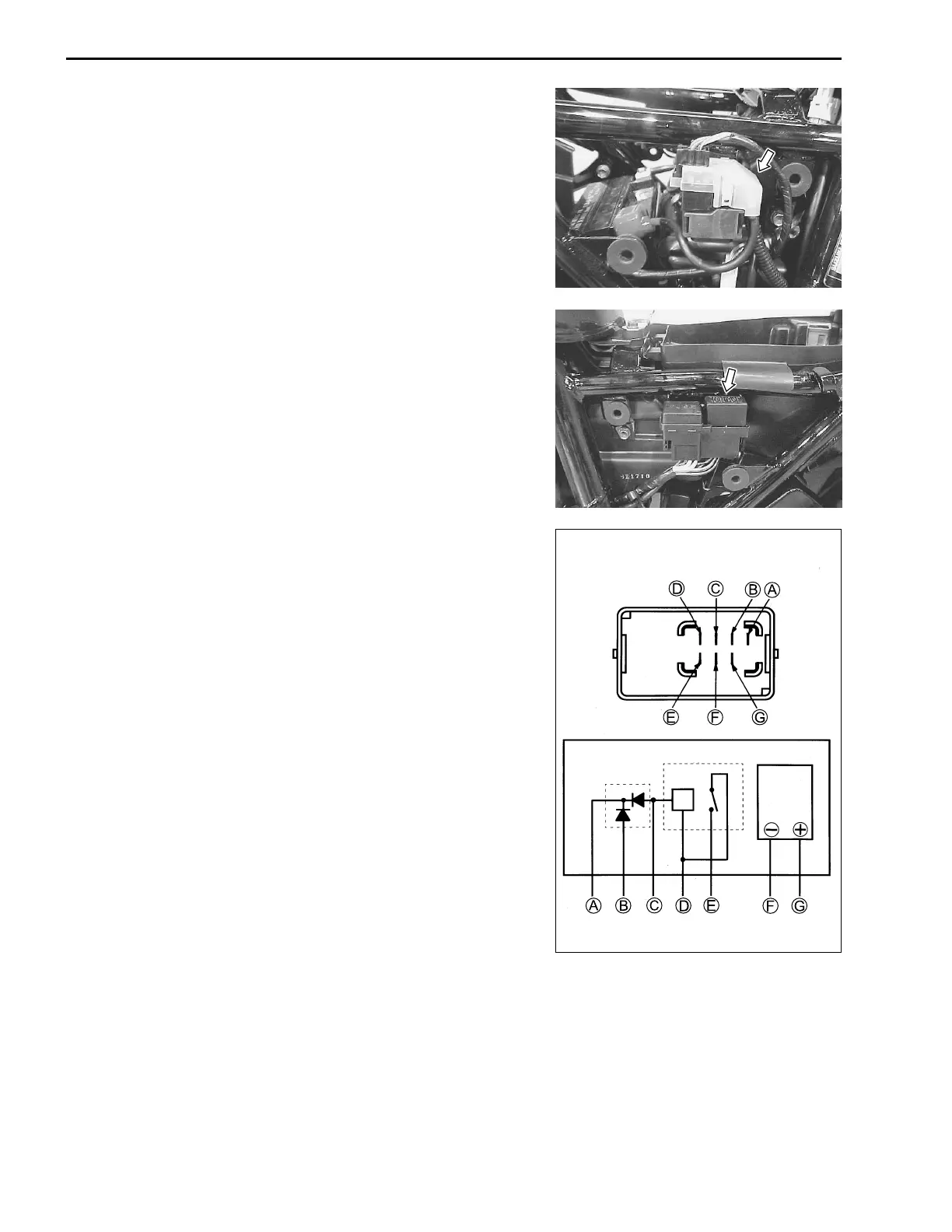

STARTER RELAY
The starter relay is located behind the right frame cover.
(% 6-22)
TURN SIGNAL/SIDE-STAND RELAY
The turn signal relay is corporated with the side-stand relay and
diode to form the one component part which is called the turn
signal/side-stand relay.
It is located behind the left frame cover.
• Remove the seat. (% 5-2)
• Remove the left frame cover.(% 5-3)
INSPECTION
Before removing the turn signal/side-stand relay, check the op-
eration of the turn signal light.
If the turn signal light does not light, inspect the bulb, turn signal
switch and circuit connection.
If the bulb, turn signal switch and circuit connection checked are
all right, the turn signal relay may be faulty, replace turn signal/
side-stand relay with a new one.
NOTE:
Be sure that the battery used is in fully-charged condition.
SIDE-STAND RELAY
DIODE
TURN
SIGNAL
RELAY

Suzuki GSX1200 1999 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Starting	Electric
Engine Type	4-stroke, 4-cylinder, DOHC
Fuel System	Mikuni BSR36SS carburetors
Transmission	5-speed
Rear Suspension	Link-type, coil spring, oil damped
Ground Clearance	135 mm
Seat Height	790 mm
