Suzuki GSX1200 1999 User Manual

ELECTRICAL SYSTEM 6-9

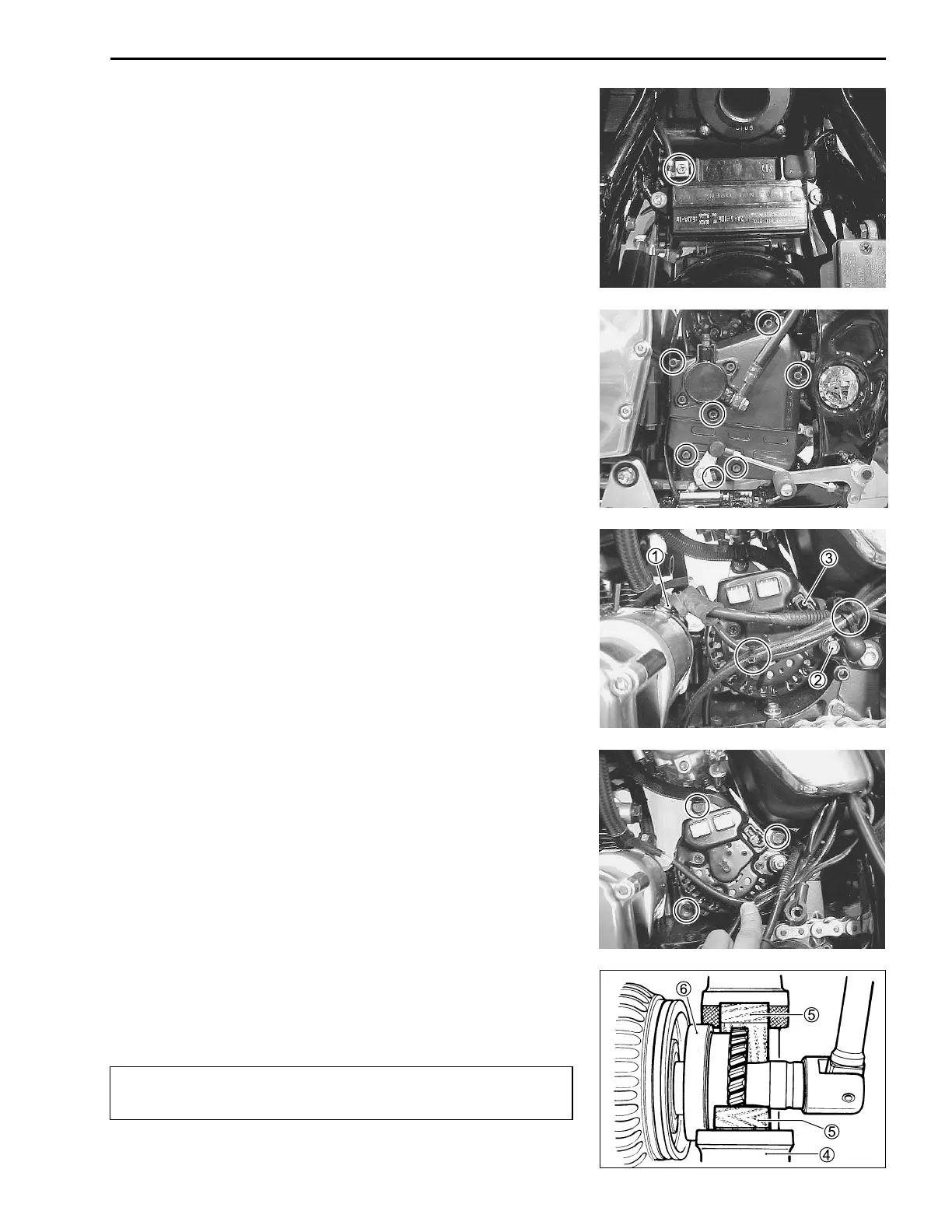

GENERATOR REMOVAL AND DISASSEMBLY
• Disconnect the battery - lead wire.
• Remove the gearshift lever and engine sprocket cover.
• Remove the two wire clamps.
• Disconnect the starter motor lead wire 1.
• Disconnect the generator lead wire 2 and coupler 3.
• Remove the generator by removing the mounting bolts.
• Hold the generator driven gear using a vise 4 and two pieces
of wood 5 as shown. Then, remove the generator driven gear
nut.
"
Do not hold the damper housing 6 using the vise or the
damper housing will be damaged.

Suzuki GSX1200 1999 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Starting	Electric
Engine Type	4-stroke, 4-cylinder, DOHC
Fuel System	Mikuni BSR36SS carburetors
Transmission	5-speed
Rear Suspension	Link-type, coil spring, oil damped
Ground Clearance	135 mm
Seat Height	790 mm
