Suzuki GSX1200 1999 User Manual

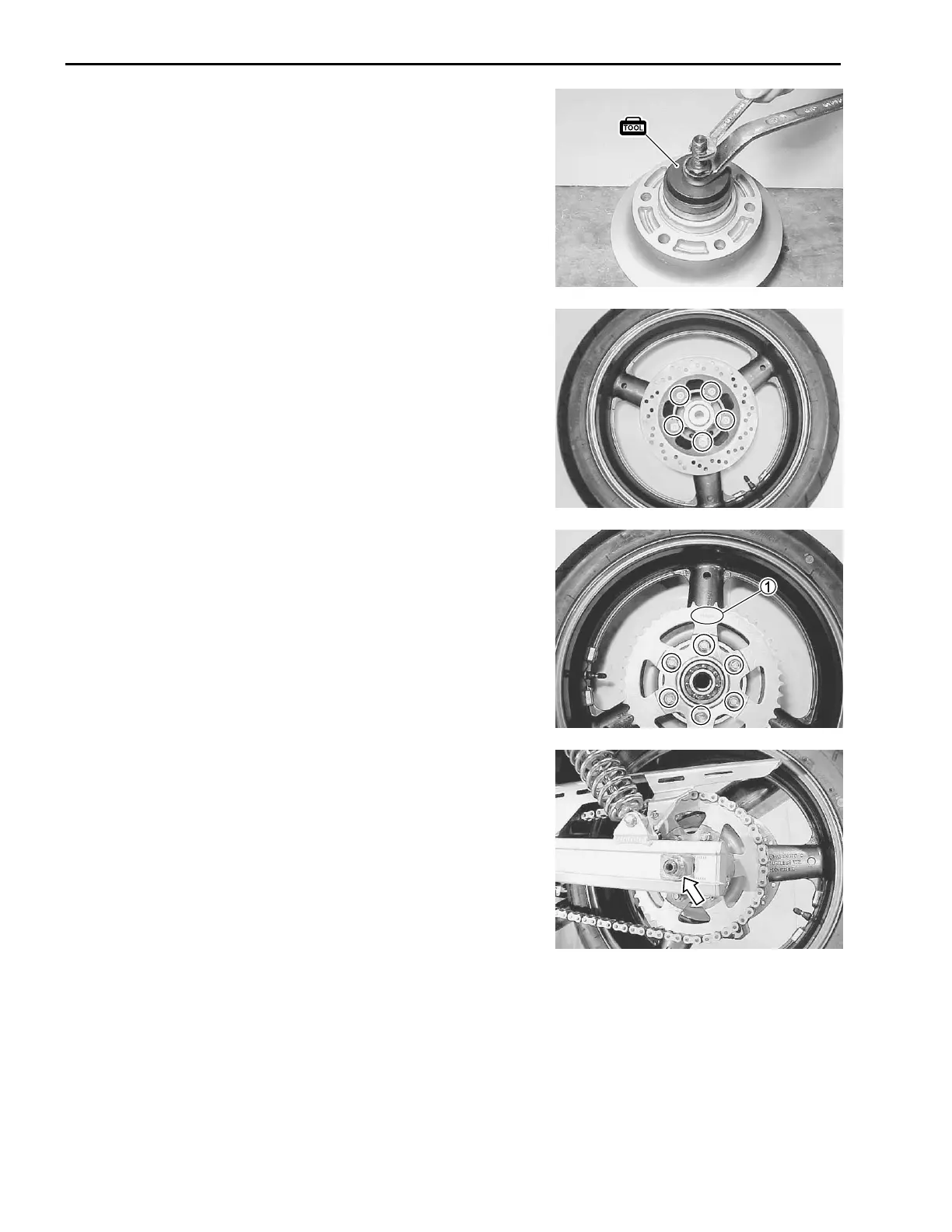

5-30 CHASSIS
REAR SPROCKET MOUNTING DRUM BEARING AND DUST
SEAL
• Install the new bearing and new dust seal using the special
tool.
!!
!!
! 09924-84510: Bearing installer set
NOTE:
Apply grease to the bearing and dust seal lip before assembling
the rear sprocket mounting drum.
##
##
# 99000-25010: SUZUKI SUPER GREASE “A”
BRAKE DISC
• Apply THREAD LOCK SUPER “1360” to the brake disc bolts
and tighten them to the specified torque.
NOTE:
Make sure that the brake disc is clean and free of any grease.
''
''
' 99000-32130: THREAD LOCK SUPER “1360”
$$
$$
$ Brake disc bolt: 23 N
.
m (2.3 kgf-m)
REAR AXLE
• Adjust the drive chain slack after installing the rear wheel.
(% 2-12)
• Tighten the rear axle nut to the specified torque.
$$
$$
$ Rear axle nut: 100 N
.
m (10.0 kgf-m)
• Tighten both chain adjuster bolts securely.
• After remounting the rear wheel, pump with the brake pedal a
few times to check for proper brake operation.
REAR SPROCKET
• Tighten the rear sprocket nuts to the specified torque.
$$
$$
$ Rear sprocket nut: 50 N
.
m (5.0 kgf-m)
NOTE:
The stamped mark
1 on the rear sprocket should face to the out-
side.

Suzuki GSX1200 1999 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Starting	Electric
Engine Type	4-stroke, 4-cylinder, DOHC
Fuel System	Mikuni BSR36SS carburetors
Transmission	5-speed
Rear Suspension	Link-type, coil spring, oil damped
Ground Clearance	135 mm
Seat Height	790 mm
