Suzuki GSX1200 1999 User Manual

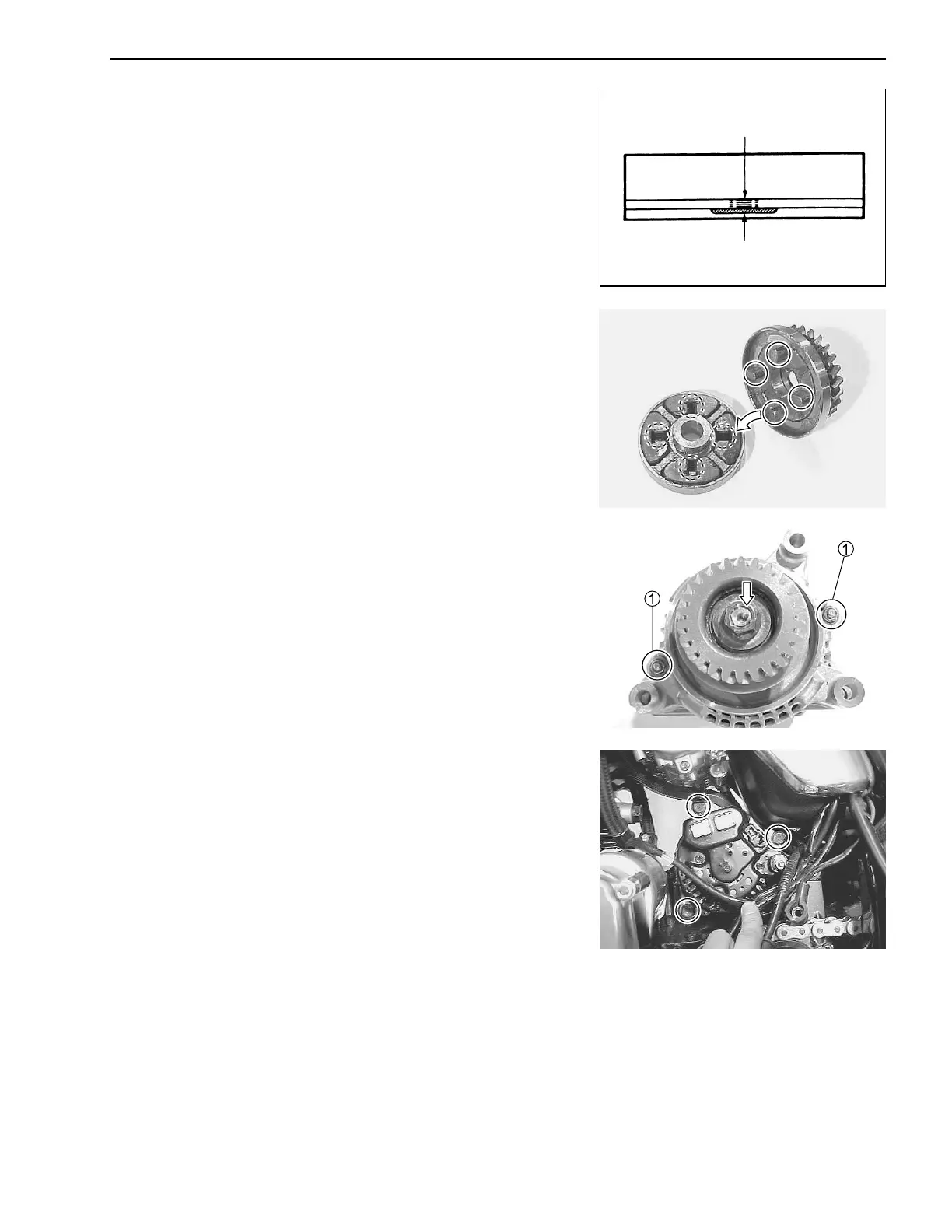

ELECTRICAL SYSTEM 6-15
NOTE:
Before reinstalling the slip ring side bearing onto the generator
end housing, turn the expander ring and align the expander ring
lug with the center of the chamfered edge of the bearing outer
race.
• Tighten the generator housing nuts 1 to the specified torque.
//
//
/ Generator housing nut: 4.5 N
.
m (0.45 kgf-m)
• Tighten the generator driven gear nut to the specified torque.
//
//
/ Generator driven gear nut: 60 N
.
m (6.0 kgf-m)
NOTE:
After tightening the generator driven gear nut to the specified
torque, stake the nut using a punch.
• When installing the generator driven gear, align the damper
grooves with the libs.
NOTE:
Apply Moly paste to the damper surface before installing.
((
((
( 99000-25140: SUZUKI MOLY PASTE
• Tighten the generator mounting bolts to the specified torque.
//
//
/ Generator mounting bolt: 25 N
.
m (2.5 kgf-m)
• After mounting the generator, route wiring harneses properly.
(! 7-13)
Expander ring lug
Chamfered edge

Suzuki GSX1200 1999 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Starting	Electric
Engine Type	4-stroke, 4-cylinder, DOHC
Fuel System	Mikuni BSR36SS carburetors
Transmission	5-speed
Rear Suspension	Link-type, coil spring, oil damped
Ground Clearance	135 mm
Seat Height	790 mm
