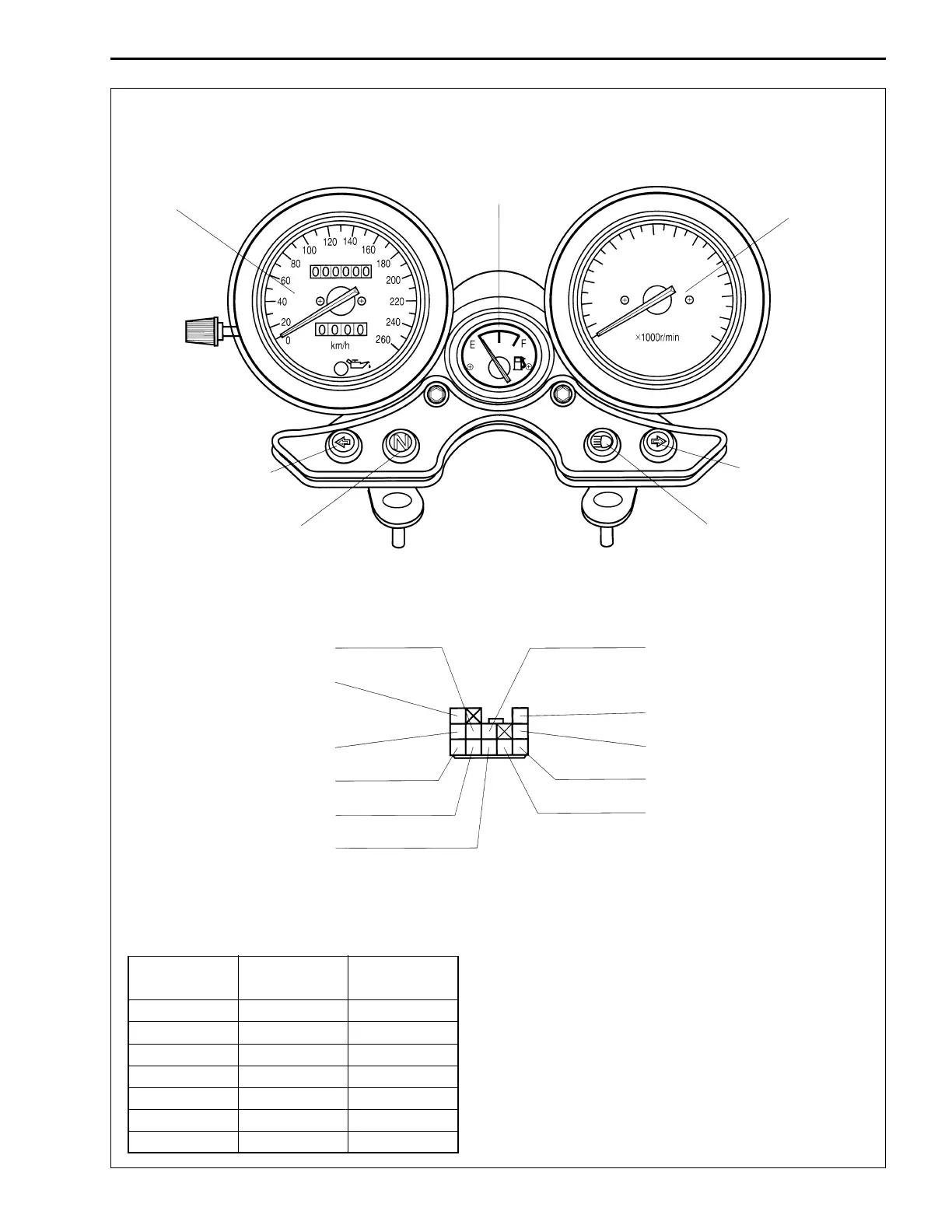

ELECTRICAL SYSTEM 6-33
SPEEDMETER
B : Black
Y : Yellow
Gr : Gray
Lg : Light green
B/G : Black with Green tracer
B/W: Black with White tracer
G/Y : Green with Yellow tracer
O/G : Orange with Green tracer
Bl/G: Blue with Green tracer
FUEL METER
TACHOMETER
TURN SIGNAL (L)
NEUTRAL
HIGH BEAM
TURN SIGNAL (R)
Y: HIGH BEAM
O/G:IGNITION, NEUTRAL, OIL
FUEL, FUEL METER
B/R: TACHOMETER SIGNAL
W: FUEL METER
Gr: ILLUMINATION
Bl/B: NEUTRAL
G/Y: OIL
B: TURN SIGNAL (L)
Lg: TURN SIGNAL (R)
Y/B: FUEL METER
B/W: TURN SIGNAL (R) (L),
ILLUMINATION, HIGH BEAM
ITEM
+ Probe of - Probe of
tester to: tester to
ILLUMINATION Gr B/W
TURN (R) Lg B/W
TURN (L) B B/W
NEUTRAL O/G Bl/B
HIGH BEAM Y G/Y
OIL O/G G/Y
FUEL O/G B/G
