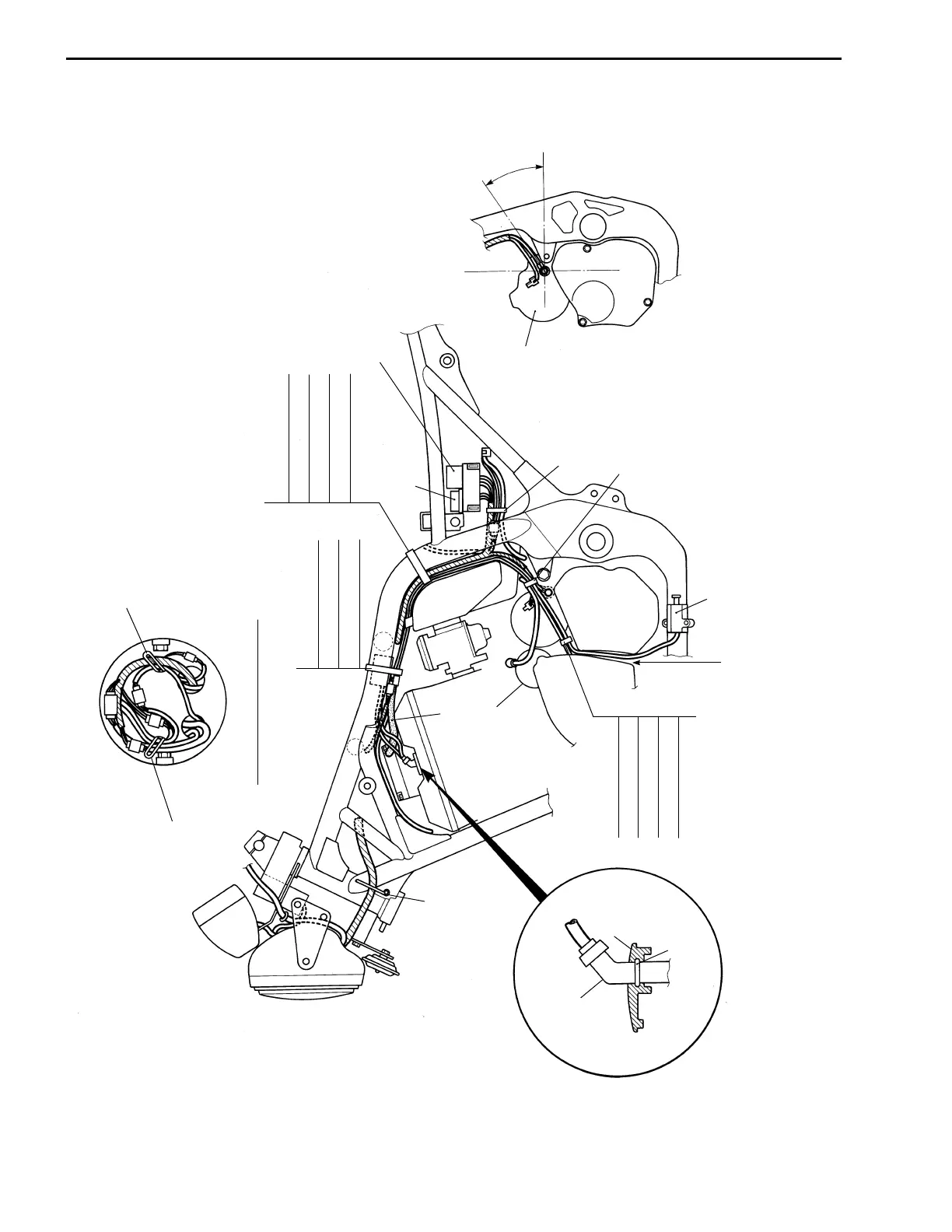

7-12 SERVICING INFORMATION
Clamp
Clamp
Wire harness
guide
Spark plug cap
Spark plug
cap cover
Flange
Breather hose
Starter motor
Signal generator
Oil pressure switch
Neutral switch
Side-stand switch
Clamp
Pass the side-stand switch lead
wire between the crankcase and
sprocket cover after installing
the sprocket cover.
Clamp
Clamp
Generator
30°
Turn signal/side-stand relay
Fuse box
Clamp
Wiring harness
Neutral switch
Oil pressure switch
Signal generator
Clamp
Neutral switch
Oil pressure switch
Signal generator
Inside of headlight housing
Side-stand switch
