3-4 ENGINE

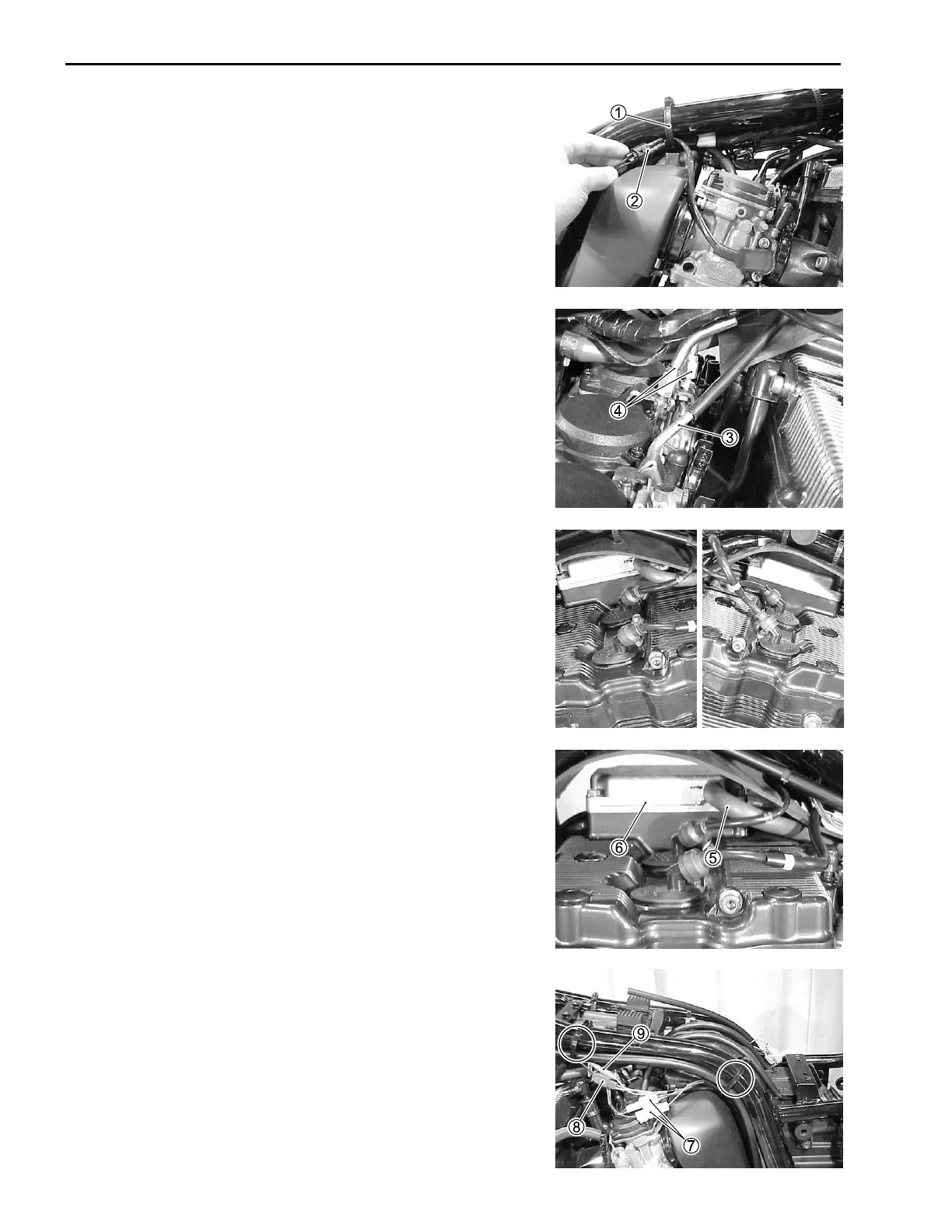

• Remove the clamp 1.
• Disconnect the throttle position sensor lead wire coupler 2.
• Slightly move the air cleaner box backward.
• Remove the carburetor assembly by disconnecting the starter
cable 3 and throttle cables 4.
• Disconnect all of the spark plug caps.
• Disconnect the breather hose 5.
• Remove the cylinder head breather cover 6 by removing the
bolts.
• Remove the wire clamps.
• Disconnect the neutral switch lead wire couplers 7, signal gen-
erator lead wire coupler 8 and oil pressure switch lead wire 9.

Suzuki GSX1200 1999 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Starting	Electric
Engine Type	4-stroke, 4-cylinder, DOHC
Fuel System	Mikuni BSR36SS carburetors
Transmission	5-speed
Rear Suspension	Link-type, coil spring, oil damped
Ground Clearance	135 mm
Seat Height	790 mm
