5-61
MAINTENANCE
TILTING UP THE CANOPY
(CAB)
For inspection and maintenance, the canopy
is designed so that it can be tilted up.
• Raising or lowering the canopy while
the engine is running may cause the
machine to move, resulting in serious
injury or death. Stop the engine before
raising or lowering the canopy.
• When the canopy is tilted up, support it
firmly with the stopper to prevent it from
falling.

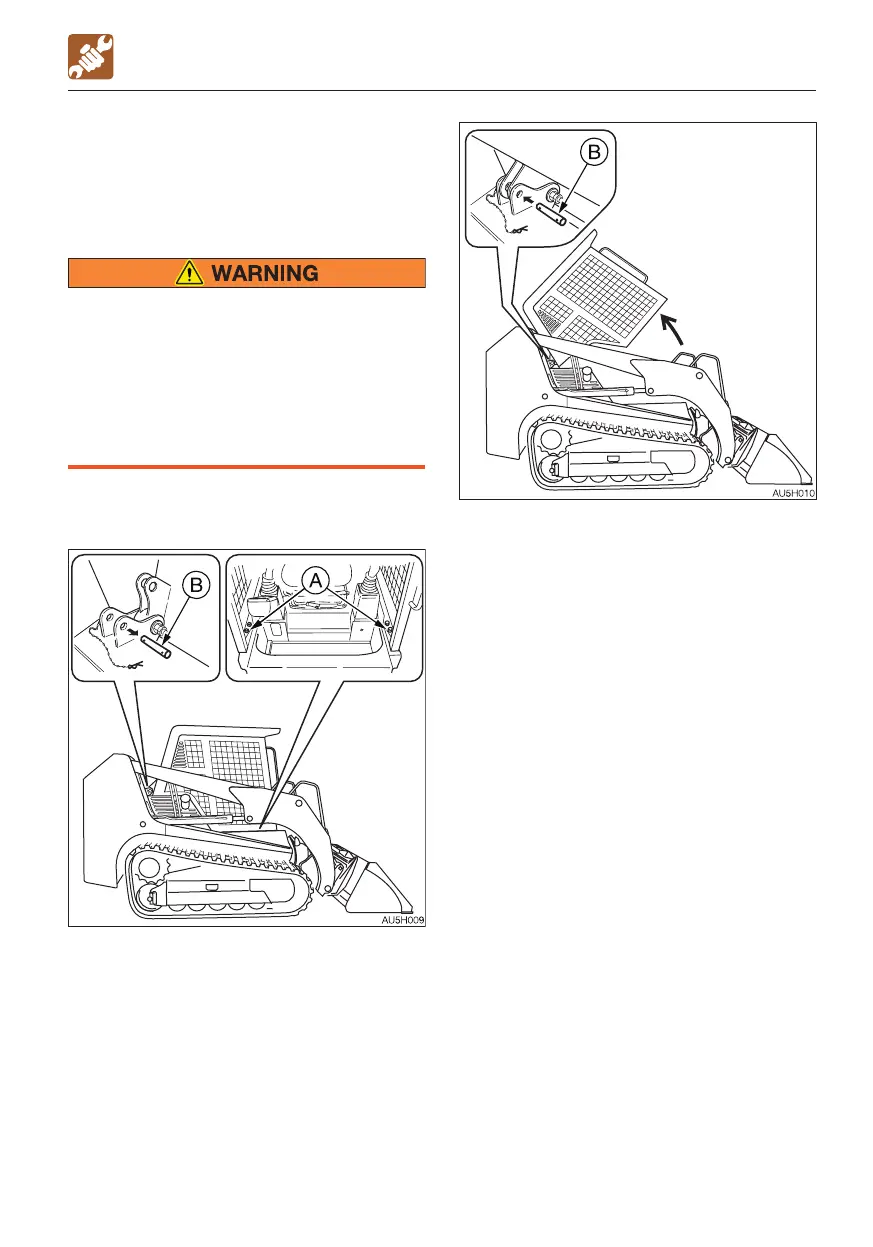

Raising (Tilt up)
TILTING UP THE CANOPY (CAB)
1. Select a firm, level surface, set the
machine to the posture shown in the
diagram above, ground the working
equipment, then stop the engine.
2. Raise the safety bar to the lock position.
3. Remove the lock bolts (A).
4. Take out the R-pin and pull out the
stopper pin (B).
5. Slowly raise the canopy.
6. Insert the stopper pin (B) through the
holder hole on the machine body and the
canopy, and then insert the R-pin through
the hole of the stopper pin (B) to fasten it
in place.
If you need to run the engine while the
canopy is raised follow the steps below.
7. Make sure that all levers and pedal are in
neutral positions.
8. Push the throttle lever to the low idling
position.
9. Start the engine.
10. Be sure to stop the engine after
inspection and maintenance.
Lowering
1. Take out the R-pin and pull out the
stopper pin (B)
2. Slowly lower the canopy.
3. Insert the stopper pin (B) through the
holder hole on the machine body, and
then insert the R-pin through the hole of
the stopper pin (B) to fasten it in place.
4. Tighten the lock bolts (A).
To Next Page
