TROUBLESHOOTING

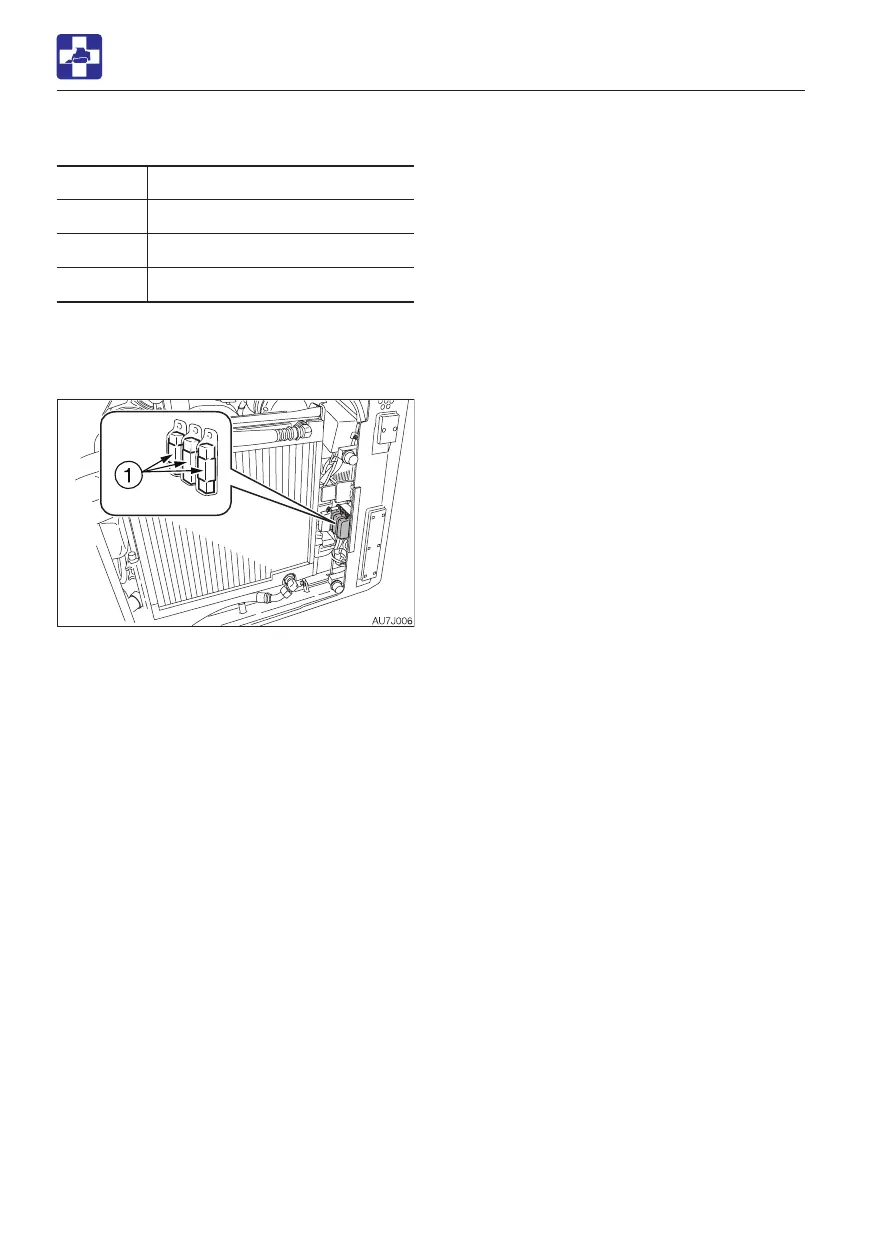

INSPECTING THE FUSIBLE LINK
If the machine is not turned on after turning
the ignition switch to the ON position, the
cartridge type fusible link (1) is likely blown.
Open the rear door and inspect. If the fusible
link is blown, please contact your sales or
service dealer.
Note: Fusible links are large type fuses used
in high current applications. Like a regular
fuse, they act as fuses by protecting the
electric components and wirings from
damage caused by excessive current draw.
Fuse layout and circuits protected (3)
Capacity Protected circuit
25A Air conditioner unit
25A Condenser fan
5A Compressor clutch
IF A FUSE BLOWS
