1/8/2018 Proprietary and Confidential - Technicolor 43
6.3.1.4 Domain,Name,(Optional),
Enter in the local domain name for the network.
!

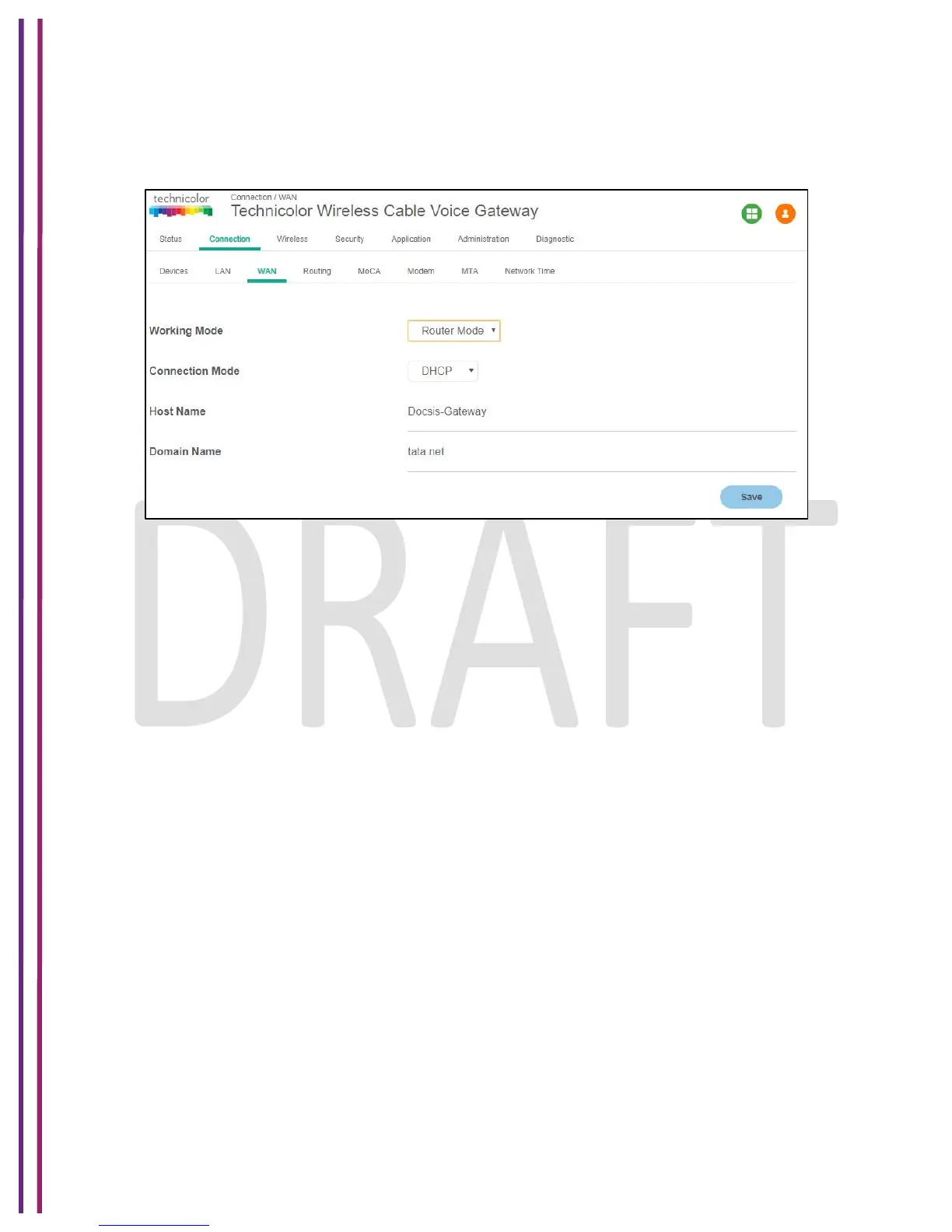

Figure 6.7
Setting the values of different parameters (Working mode, Connection Mode, Host name,
Domain name):
• Click on the corresponding drop down menu and select the required values
• Press Save
6.3.2 SNMP Provisioning for WAN
tchRgIpMgmtWanMode determines whether the WAN IP address is assigned by a DHCP
server from the Provisioning servers in the headend or assigned statically by the user or going to
use a Dual IP. When Dual IP is select, the second IP stack is used for user options.
In case of Static Assignment use tchRgIpMgmtWanAddrStatic to fill in the details.
tchRgIpMgmtWanMtu & tchRgIpMgmtWanTtl can be optionally set.
tchRgIpMgmtWanDualIpAddr is where the second IP can be filled in and
tchRgIpMgmtWanDualIpRipAdvertised RIP advertised for the access.
tchRgIpMgmtWanAddrBackupDefGw is the default gateway used when the Modem is offline.
User Access MIBS defined in CM MIB set should control the Username & Password to Change.
Remote Web access MIBs are also added in CM MIBs for User access.
6.3.3 Dual Stack Router
In dual stack configuration, eRouter will have both an IPv4 and IPv6 address. The gateway can
support a mix of devices that support IPV4 and IPv6. To set eRouter in Dual IP stack (IPv4 and
IPv6), set TLV 202 to Dual or set rdkbRgDeviceMode to dualstack(5).
