Tektronix TAS 465 User Manual

   
2Ć1
   
Before you begin using the TAS 465 Analog Oscilloscope, perform this
procedure to properly install and power it on.
1. Check that you have the proper electrical connections. The TAS 465
Analog Oscilloscope requires 90 to 132 VAC
RMS
or 180 to 250 VAC
RMS
,
continuous range from 48 Hz to 440 Hz. A maximum of 85 Watts may be
required.
2. Check that the Line Voltage Range switch (Figure 2Ć1) is at the proper
setting for your power system.
3. Check the fuse to ensure it is the proper type and rating (the rear panel
provides you with this information). The TAS 465 Analog Oscilloscope is
shipped with the UL approved fuse installed. Figure 2Ć2 illustrates how
to open the fuse drawer.
4. Connect the proper power cord from the rearĆpanel power connector
(Figure 2Ć1) to the power system.

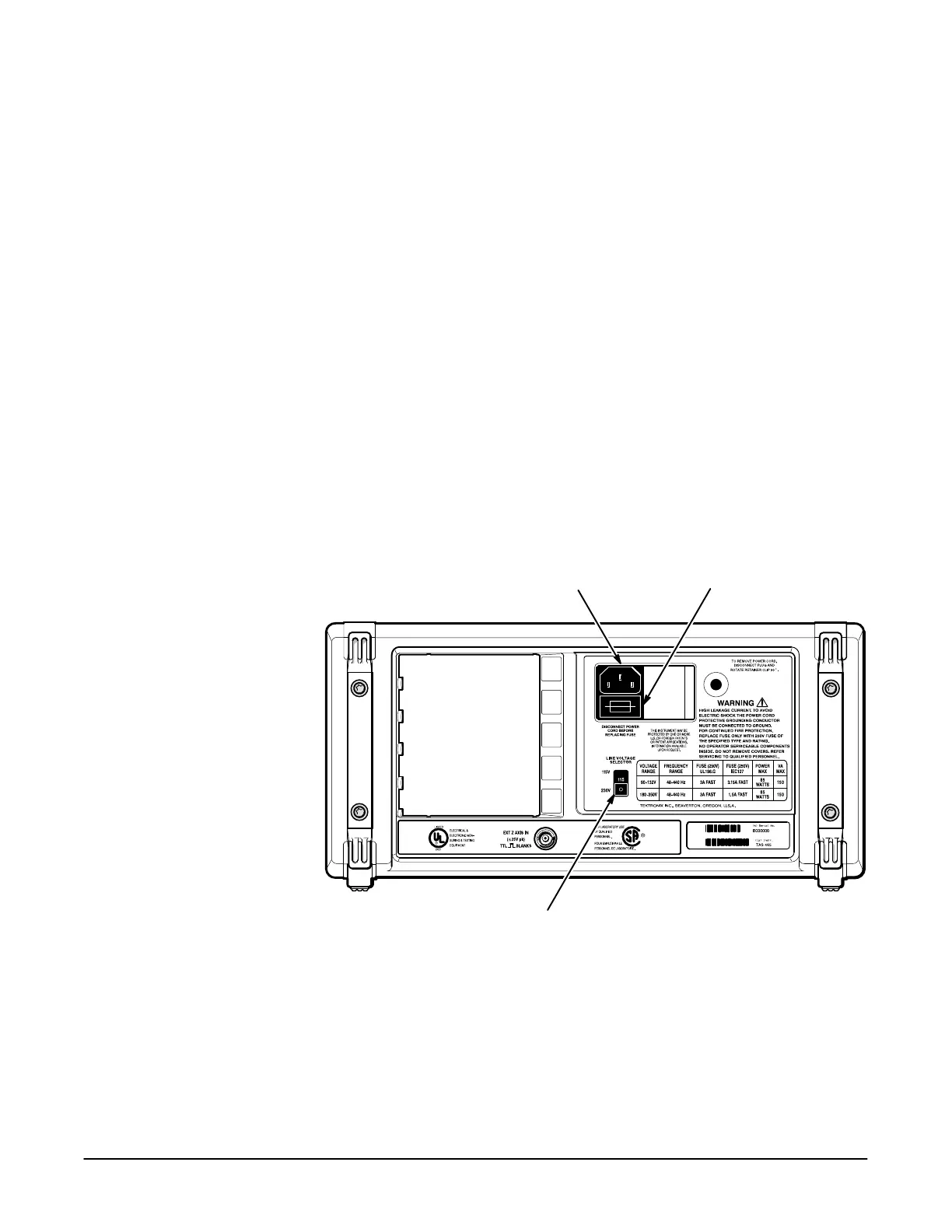

Power
Connector
Fuse
Compartment
Line Voltage Range Switch
 !  

Tektronix TAS 465 Specifications

General

Type	Analog Oscilloscope
Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	2 mV/div to 5 V/div
Display	CRT
Maximum Sweep Speed	5 ns/div
Input Coupling	AC, DC, GND
Sample Rate	N/A (Analog)
Memory Depth	N/A (Analog)
Input Impedance	1 MΩ
Trigger Modes	Auto, Normal
