System Operation
TP041 OOA Interface
&
Applications
Rev A: 0611
5/98

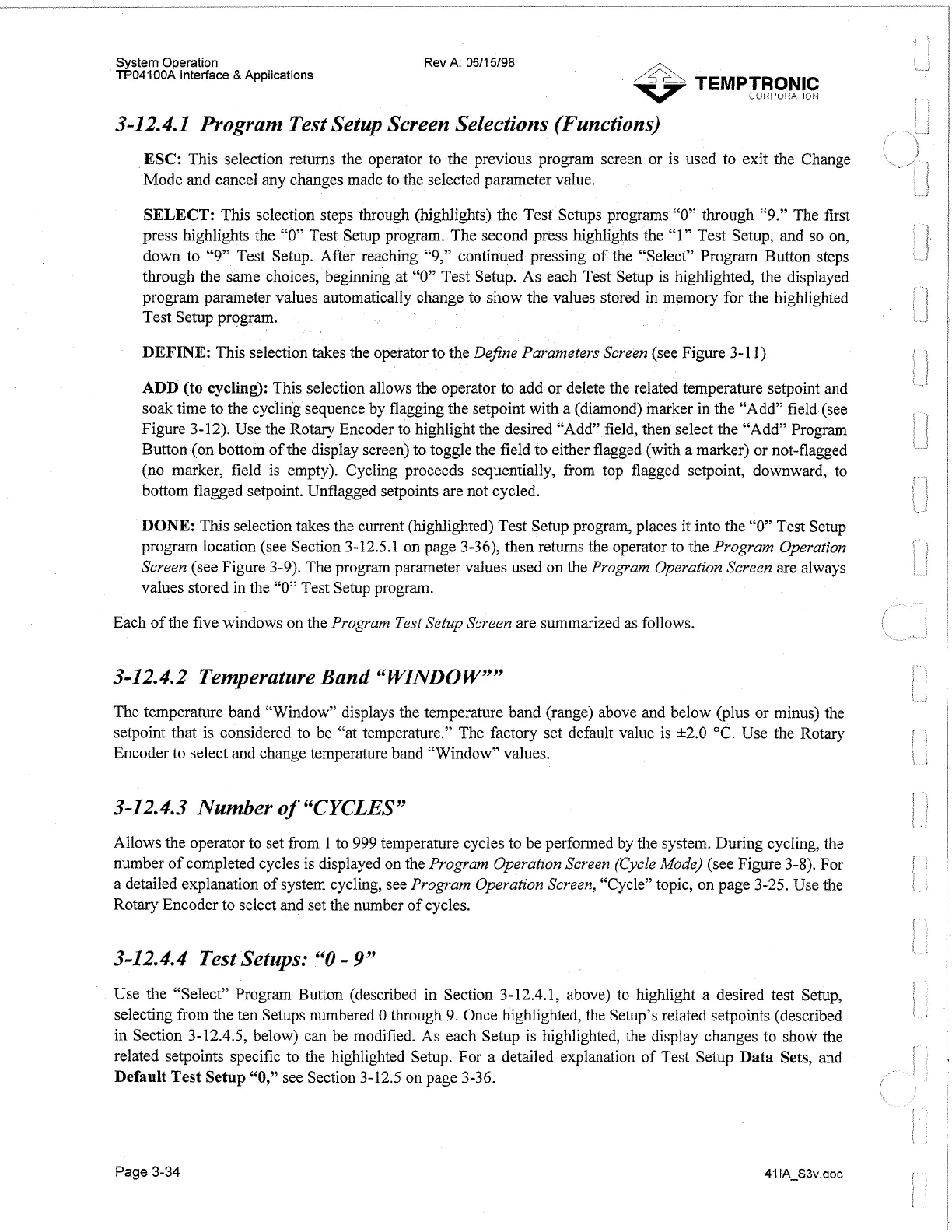

3-12.4.1 Program Test Setup Screen Selections (Functions)
ESC:
This selection returns the operator to the previous program screen or is used to exit the Change
Mode and cancel any changes made to the selected parameter value.
SELECT:
This selection steps through (highlights) the Test Setups programs "0" through "9." The first
press highlights the
"0"
Test Setup program. The second press highlights the "1" Test Setup, and so on,
down to "9" Test Setup. After reaching "9," continued pressing of the "Select" Program Button steps
through the same choices, beginning at "0" Test Setup. As each Test Setup is highlighted, the displayed
program parameter values automatically change to show the values stored in memory for the highlighted
Test Setup program.
DEFINE:
This selection takes the operator to the
DeJine Parameters Screen
(see Figure 3-1 1)
ADD
(to
cycling):
This selection allows the operator to add or delete the related temperature setpoint and
soak time to the cycling sequence by flagging the setpoint with a (diamond) marker in the "Add" field (see
Figure 3-12). Use the Rotary Encoder to highlight the desired "Add" field, then select the "Add" Program
Button (on bottom of the display screen) to toggle the field to either flagged (with a marker) or not-flagged
(no marker, field is empty). Cycling proceeds sequentially, from top flagged setpoint, downward, to
bottom flagged setpoint. Unflagged setpoints are not cycled.
DONE:
This selection takes the current (highlighted) Test Setup program, places it into the
"0"
Test Setup
program location (see Section 3-12.5.1 on page 3-36), then returns the operator to the
Program Operation
Screen
(see Figure 3-9). The program parameter values used on the
Program Operation Screen
are always
values stored in the "0" Test Setup program.
Each of the five windows on the
Program Test Setup Screen
are summarized as follows.
3-12.4.2 Temperature Band
"
WIND0 W""
The temperature band "Window" displays the temperature band (range) above and below (plus or minus) the
setpoint that is considered to be "at temperature." The factory set default value is 2k2.0 "C. Use the Rotary
Encoder to select and change temperature band "Window" values.
3-1 2.4.3 Number of "CYCLES"
Allows the operator to set from 1 to 999 temperature cycles to be performed by the system. During cycling, the
number of completed cycles is displayed on the
Program Operation Screen (Cycle Mode)
(see Figure 3-8). For
a detailed explanation of system cycling, see
Program Operation Screen,
"Cycle" topic, on page 3-25. Use the
Rotary Encoder to select and set the number of cycles.
3-12.4.4 Test Setups:
"0
-
9"
Use the "Select" Program Button (described in Section 3-12.4.1, above) to highlight a desired test Setup,
selecting from the ten Setups numbered 0 through 9. Once highlighted, the Setup's related setpoints (described
in Section 3-12.4.5, below) can be modified. As each Setup is highlighted, the display changes to show the
related setpoints specific to the highlighted Setup. For a detailed explanation of Test Setup
Data Sets,
and
Default Test Setup
"0,"
see Section 3-12.5 on page 3-36.
Page
3-34
