System Operation
TP04100A Interface
&
Applications
3-7
User
Interface
'T'
&
'K'
SENSOR INPUTS
OTARY ENCODER
1361
2
PROGRAM
BUTTONS
Figure
3-4
User
Interface

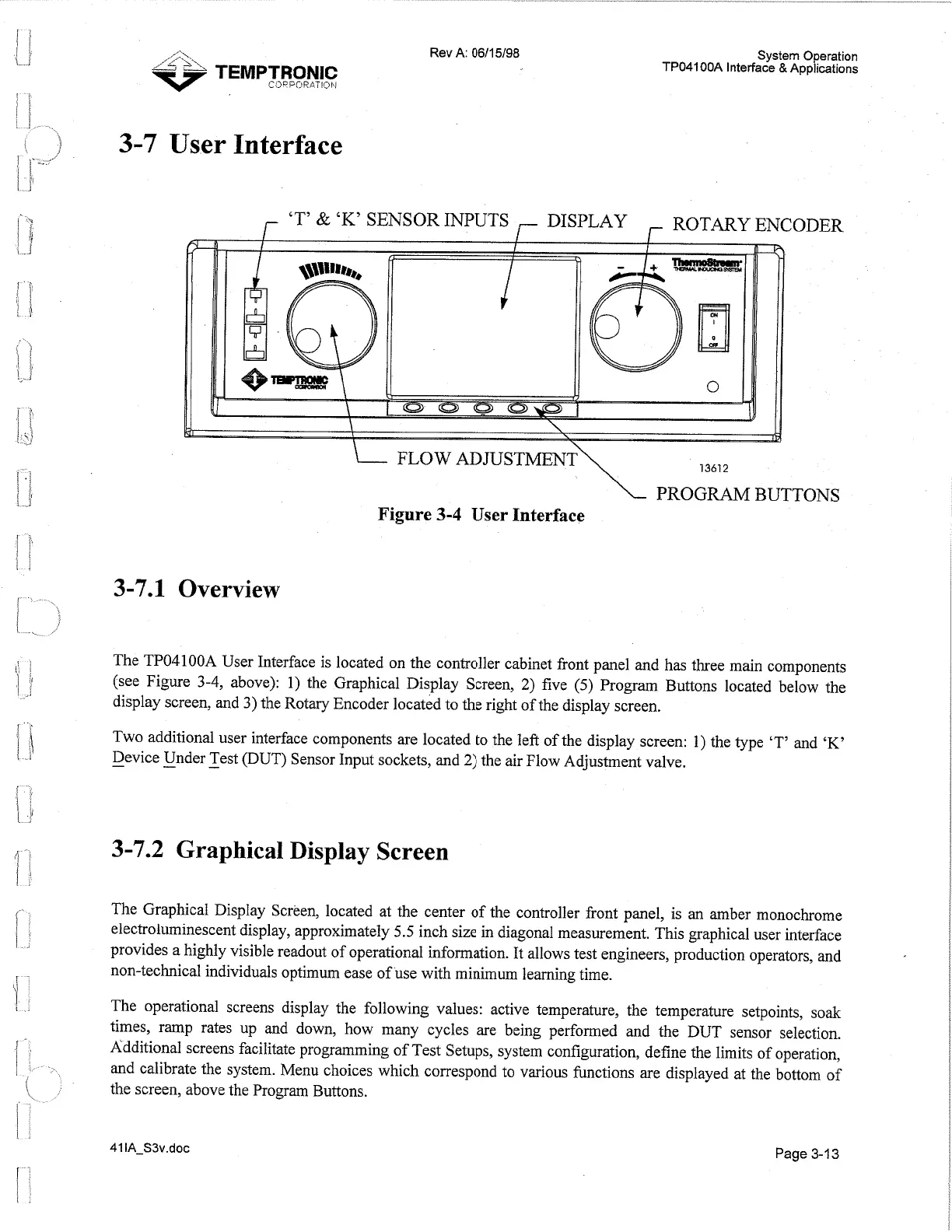

3-7.1 Overview
The TP04100A User Interface is located on the controller cabinet front panel and has three main components
(see Figure 3-4, above): 1) the Graphical Display Screen,
2)
five (5) Program Buttons located below the
display screen, and 3) the Rotary Encoder located to the right of the display screen.
Two additional user interface components are located to the left of the display screen: 1) the type
'T'
and
'K'
Device Under Test (DUT) Sensor Input sockets, and
2)
the air Flow Adjustment valve.
-
-
-
3-7.2 Graphical Display Screen
The Graphical Display Screen, located at the center of the controller front panel, is an amber monochrome
electroluminescent display, approximately 5.5 inch size in diagonal measurement. This graphical user interface
provides a highly visible readout of operational information. It allows test engineers, production operators, and
non-technical individuals optimum ease of use with minimum learning time.
The operational screens display the following values: active temperature, the temperature setpoints, soak
times, ramp rates up and down, how many cycles are being performed and the DUT sensor selection.
Additional screens facilitate programming of Test Setups, system configuration, define the limits of operation,
and calibrate the system. Menu choices which correspond to various functions are displayed at the bottom of
the screen, above the Program Buttons.
