Temptronic ThermoStream TP04100A Interface & Applications Manual

Preparation for Use
TP04100A interface & Applications
Rev A: 0611 5/98
2-1 1.2 Assemble Horizontal Arm, Locks
Vertical Column Lock
1362014

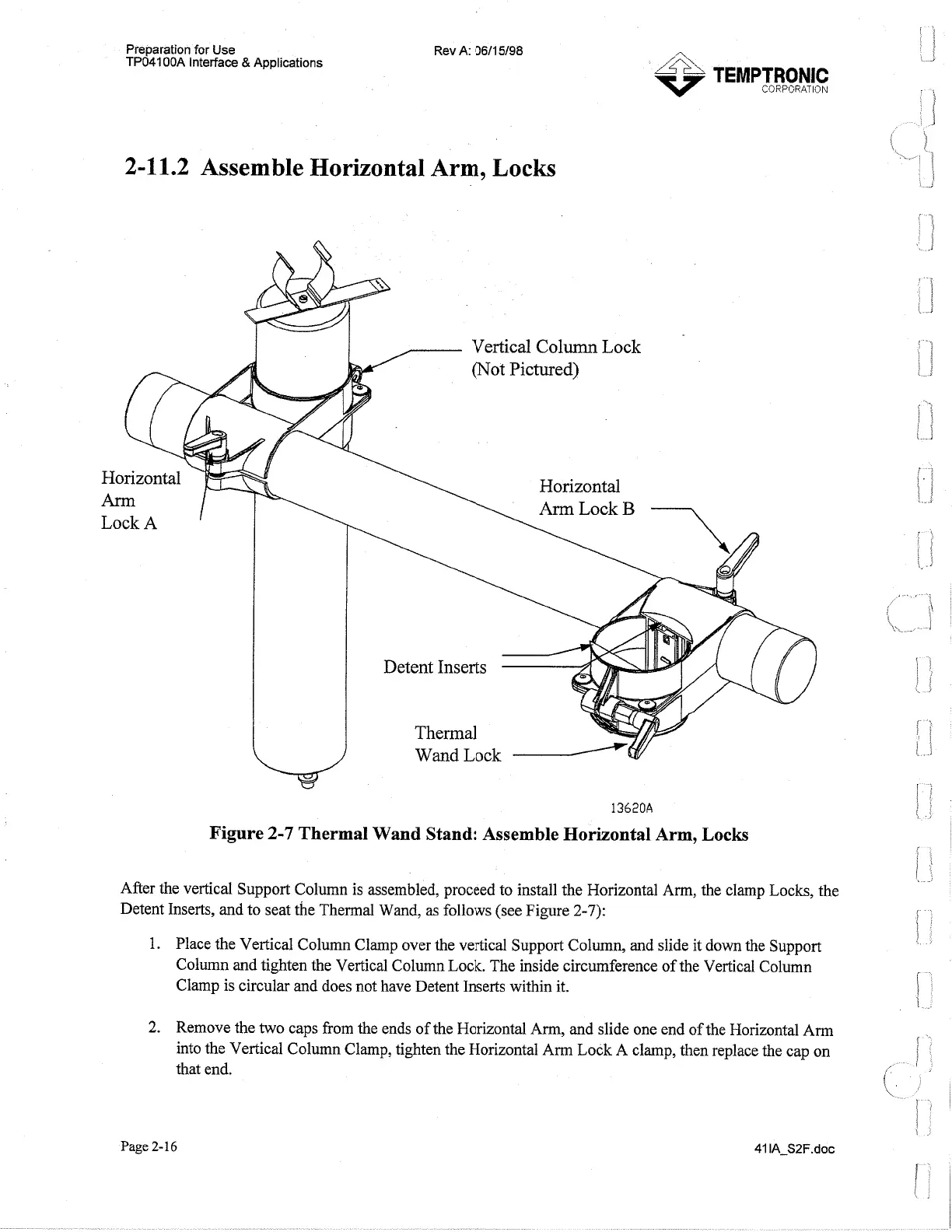

Figure 2-7 Thermal Wand Stand: Assemble Horizontal Arm, Locks
After the vertical Support Column is assembled, proceed to install the Horizontal Arm, the clamp Locks, the
Detent Inserts, and to seat the Thermal Wand, as follows (see Figure
2-7):
Place the Vertical Column Clamp over the vertical Support Column, and slide it down the Support
Column and tighten the Vertical Column Lock. The inside circumference of the Vertical Column
Clamp is circular and does not have Detent Inserts within it.
Remove the two caps from the ends of the Horizontal Arm, and slide one end of the Horizontal Arm
into the Vertical Column Clamp, tighten the Horizontal Arm Lock A clamp, then replace the cap on
that end.
Page 2- 16
