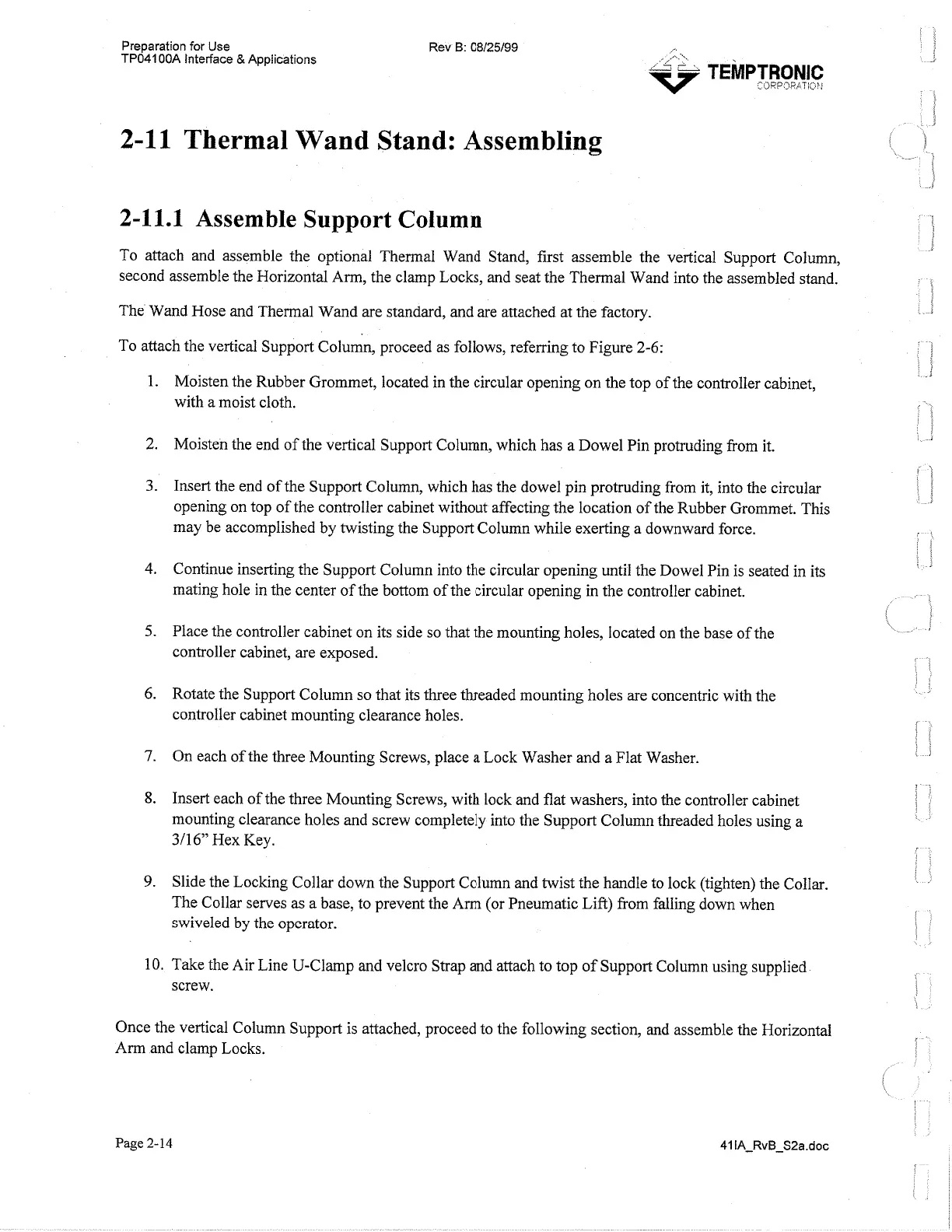

Thermal Wand Stand: Assembling
2-1
1.1
Assemble Support Column
To attach and assemble the optional Thermal Wand Stand, first assemble the vertical Support Column,
second assemble the Horizontal
Arm,
the clamp Locks, and seat the Thermal Wand into the assembled stand.
The Wand Hose and Thermal Wand are standard, and are attached at the factory.
To attach the vertical Support Column, proceed as follows, referring to Figure 2-6:
Moisten the Rubber Grommet, located
in
the circular opening on the top of the controller cabinet,
with a moist cloth.
Moisten the end of the vertical Support Column, which has a Dowel Pin protruding from it.
Insert the end of the Support Column, which has the dowel pin protruding from it, into the circular
opening on top of the controller cabinet without affecting the location of the Rubber Grommet. This
may be accomplished by twisting the Support Column while exerting a downward force.
Continue inserting the Support Column into the circular opening until the Dowel Pin is seated in its
mating hole in the center of the bottom of the circular opening in the controller cabinet.
Place the controller cabinet on its side so that the mounting holes, located on the base of the
controller cabinet, are exposed.
Rotate the Support Column so that its three threaded mounting holes are concentric with the
controller cabinet mounting clearance holes.
On each of the three Mounting Screws, place a Lock Washer and
a
Flat Washer.
Insert each of the three Mounting Screws, with lock and flat washers, into the controller cabinet
mounting clearance holes and screw completely into the Support Column threaded holes using a
311
6" Hex Key.
Slide the Locking Collar down the Support Column and twist the handle to lock (tighten) the Collar.
The Collar serves as a base, to prevent the
Arm
(or Pneumatic Lift) from falling down when
swiveled
by
the operator.
10.
Take the Air Line U-Clamp and velcro Strap and attach to top of Support Column using supplied
screw.
Once the vertical Column Support is attached, proceed to the following section, and assemble the Horizontal
Arm and clamp Locks.
Page
2-
14
41 IA-RvB-S2a.doc
