System Operation
TP04100A Interface
8
Applications
Rev A:
0611
5/98

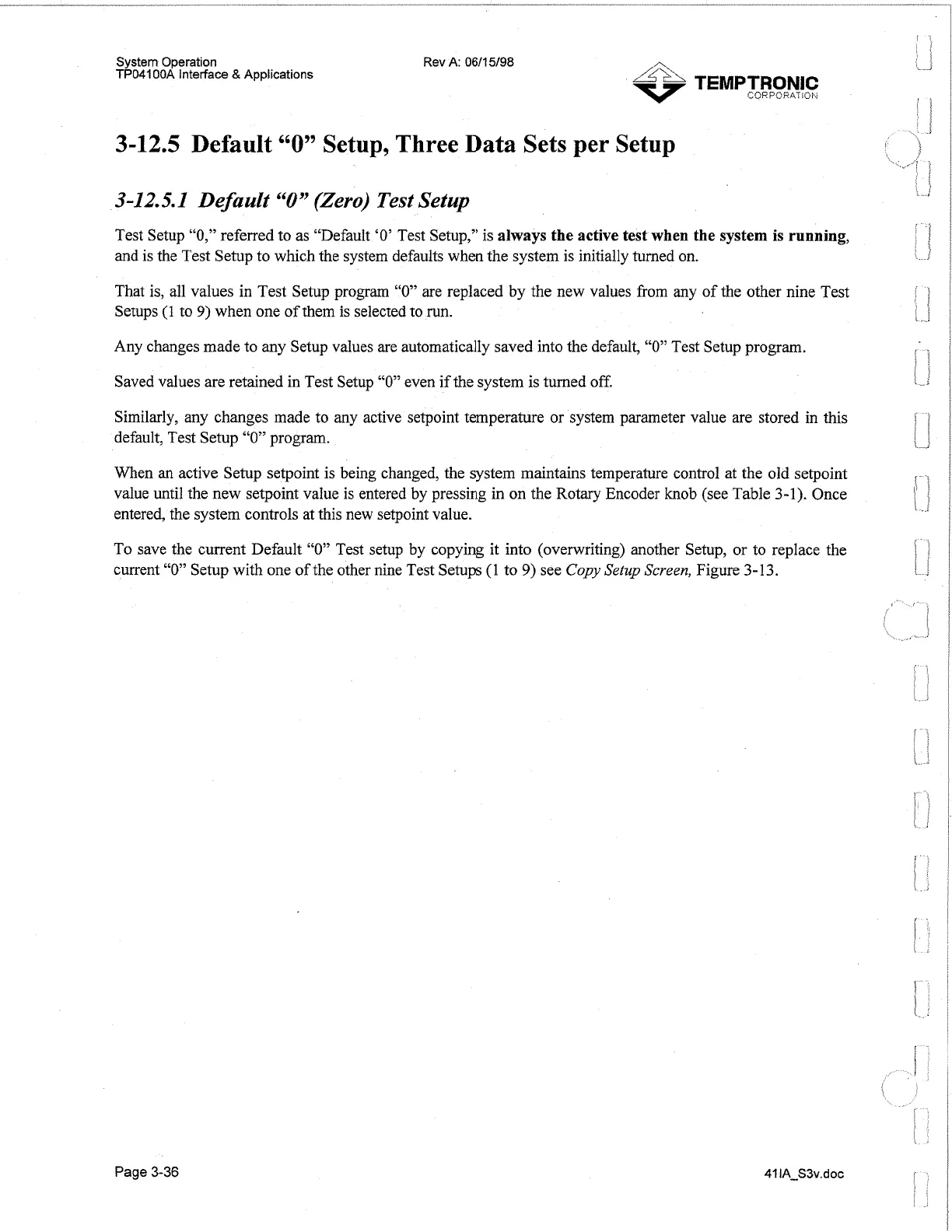

3-12.5 Default
"0"
Setup, Three Data Sets per Setup
3-12.5.1
Default
"0"
(Zero)
Test Setup
Test Setup "O," referred to as "Default '0' Test Setup," is always the active test when the system is running,
and is the Test Setup to which the system defaults when the system is initially turned on.
That is, all values in Test Setup program "0" are replaced by the new values from any of the other nine Test
Setups (1 to 9) when one of them is selected to run.
Any changes made to any Setup values are automatically saved into the default, "0" Test Setup program.
Saved values are retained in Test Setup "0" even if the system is turned off.
Similarly, any changes made to any active setpoint temperature or system parameter value are stored in this
default, Test Setup "0" program.
When an active Setup setpoint is being changed, the system maintains temperature control at the old setpoint
value until the new setpoint value is entered by pressing in on the Rotary Encoder knob (see Table 3-1). Once
entered, the system controls at this new setpoint value.
To save the current Default "0" Test setup by copying it into (overwriting) another Setup, or to replace the
current "0" Setup with one of the other nine Test Setups (1 to 9) see
Copy
Setup Screen,
Figure 3-13.
Page
3-36
