Power Unit
4st 4/5/6 2011

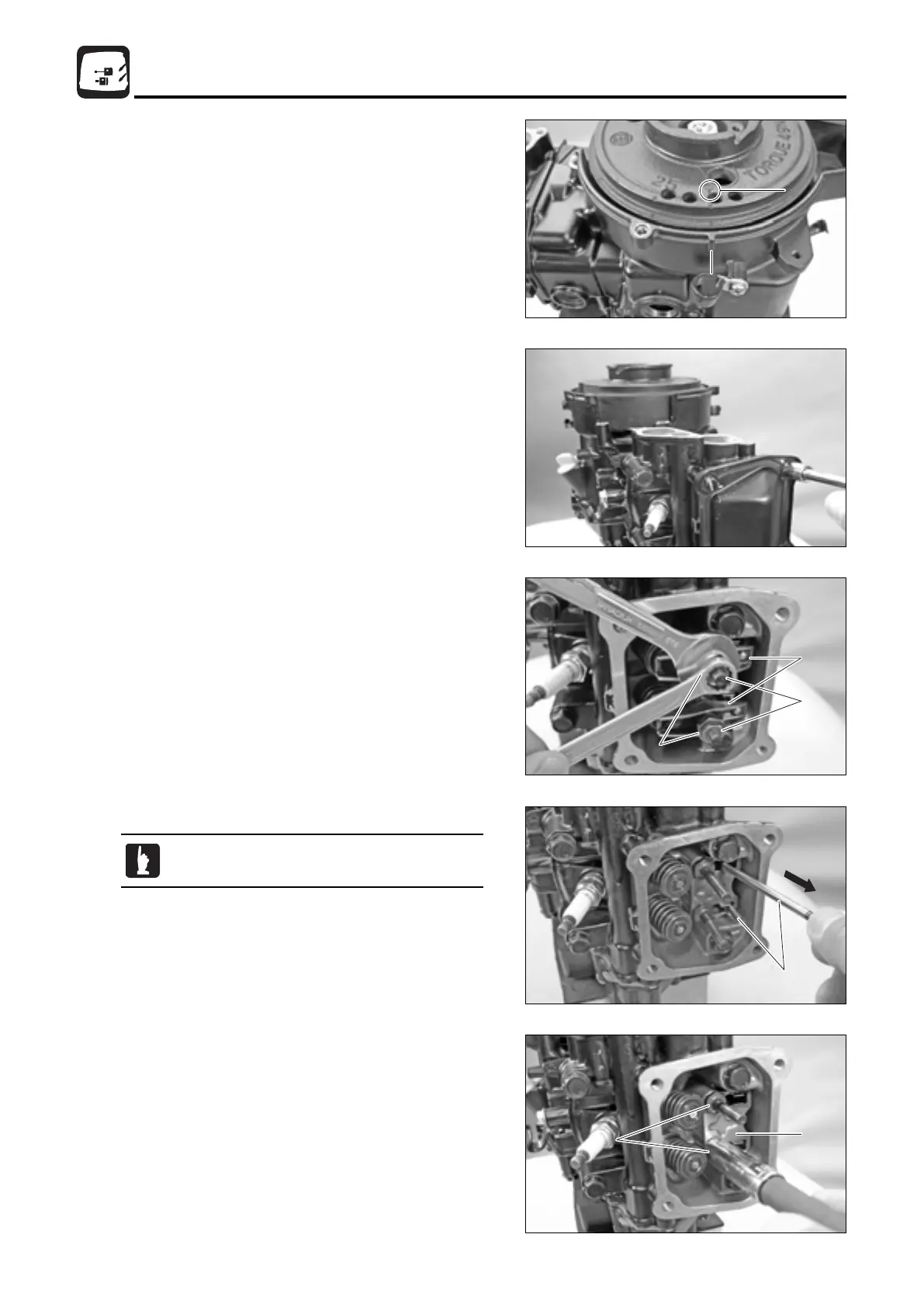

9) Removal of Rocker Arm
1. Check position of flywheel marking “T” to confirm that piston
is at top dead center.
2. Remove bolts and then cylinder head cover.
TT
3. Remove adjust nut 1, and then pivot 2 and rocker arm 3.
11
33
2
2
44
55
66
Store “IN” side and “EX” side rocker arms and
push rods separately.
5. Remove pivot bolt 5, and then push rod plate 6.
4. Remove push rod 4.
