TOHATSU MFS 4 Service Manual

6
6-23
4st 4/5/6 2011
7
6
b
c
GREASE
OBMOBMOBM
OBM
4. Attach pump case liner 6 to pump case (upper) 7, and
apply grease to interior of pump case liner 6.
Bring pump case liner projection b to pump case
(upper) groove c.
1
3
2
4
5
a
GREASE
OBM
OBM
OBM
OBM

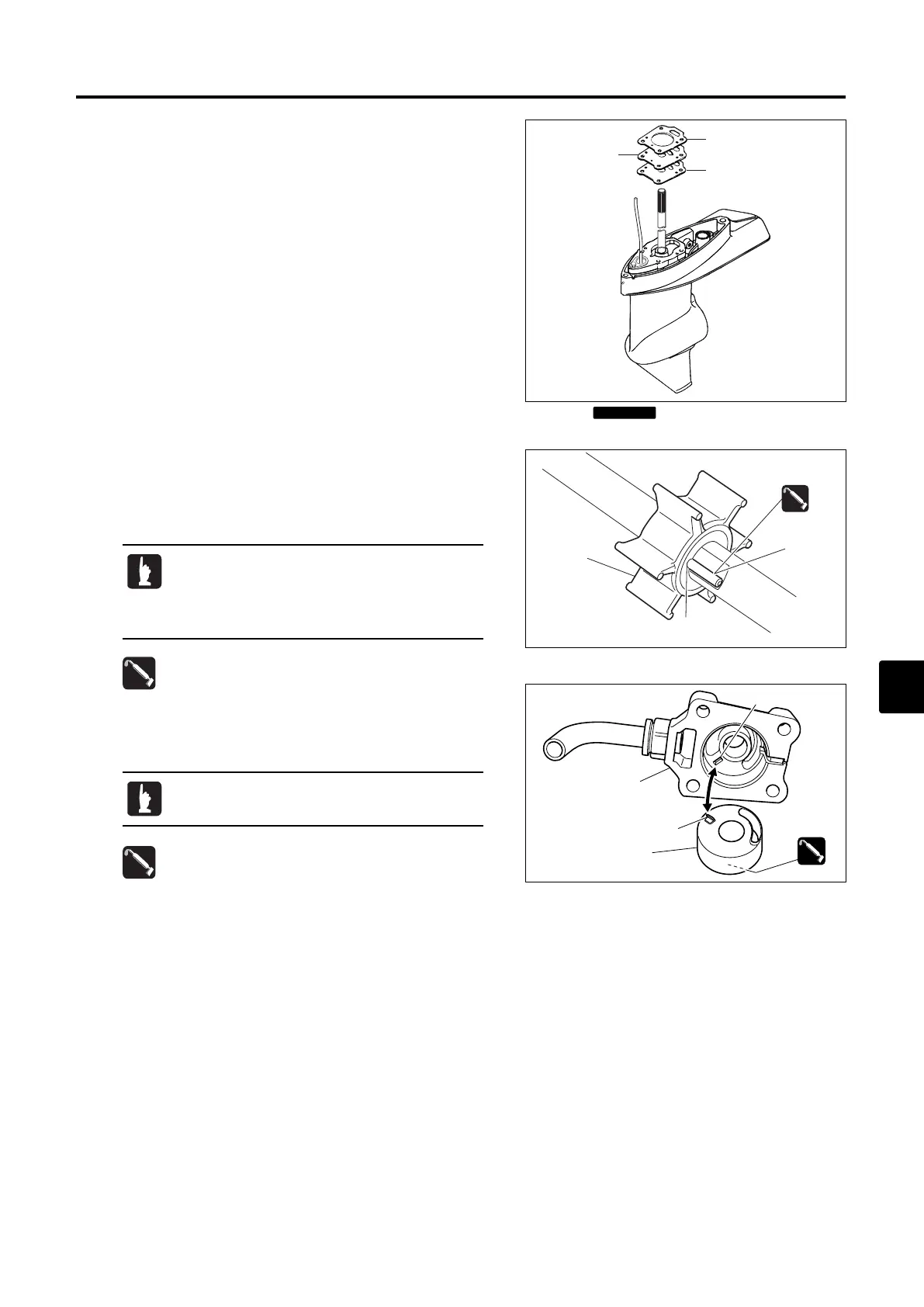

30) Installation of Water Pump
1. Attach new gaskets 1 and 2, water pump guide plate 3
and dowel pin.
2. Attach key 4 to drive shaft.
3. Bring impeller 5 groove a to key 4 and install impeller to
drive shaft.
· When reusing impeller, install it so that it
rotates in original direction.
· Apply grease to the key to prevent it from
dropping when attaching.
12 Gasket
Do not reuse.
GREASE
OBMOBMOBM
OBM
GREASE
OBMOBMOBM
OBM
MFS4-5-6Ech06110422.qxd 11.4.22 5:50 PM  ページ23
