TOHATSU MFS 4 Service Manual

Bracket
7-12
4st 4/5/6 2011

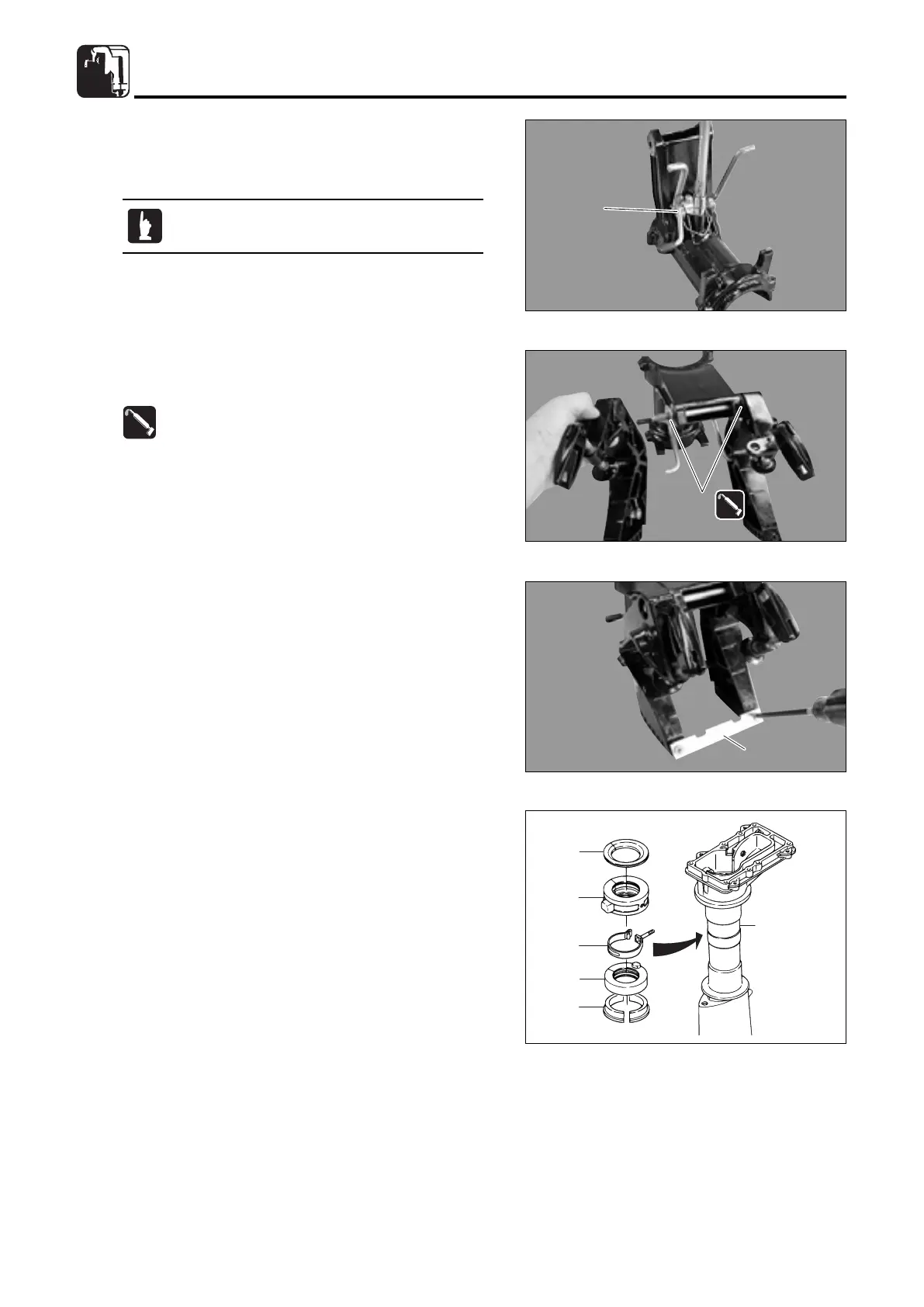

3) Installation of clamp bracket and
drive shaft
1. Install tilt stopper 1 to swivel bracket (A).
3. Install distance plate 3 to clamp bracket.
11
22
GREASE
GREASE
OBM
OBM
OBM
OBM
OBM
OBM
GREASE
OBM
OBM
OBM
OBM
33
4
5
6
7
8
9
2. Install clamp bracket to swivel bracket (A).
Apply grease to both sides of washer 2.
4. Install thrust bushing 5 , thrust place 6 , steering
bushings 7 and 8 and friction plate 9 on the drive shaft
housing 4.
Apply grease to sliding areas of tilt stopper.
GREASE
OBMOBMOBM
OBM
MFS4-5-6Ech07110422.qxd 11.4.22 5:55 PM  ページ12
