TOHATSU MFS 4 Service Manual

7-11
4st 4/5/6 2011
7

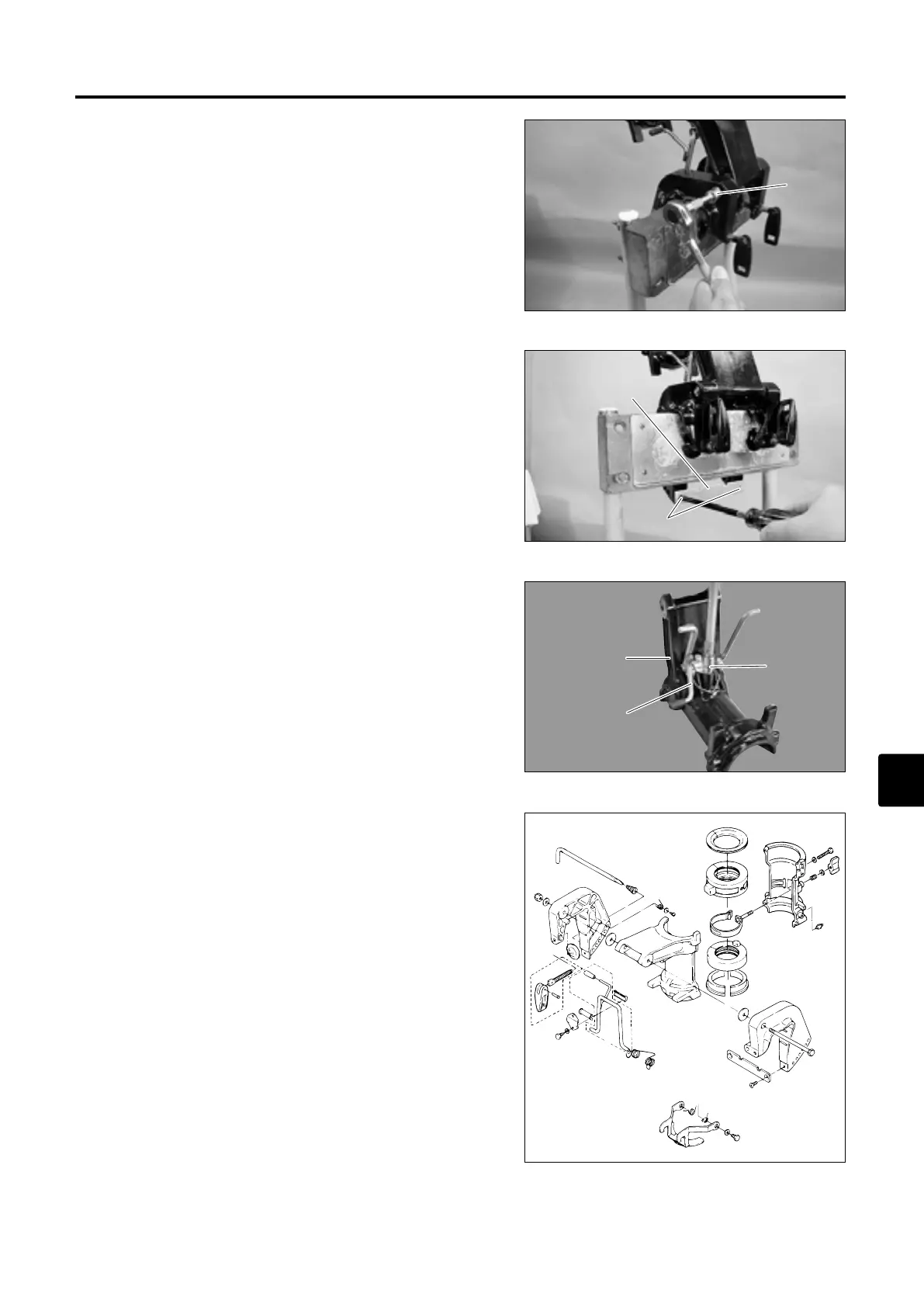

2) Removal and inspection of clamp bracket
1. Loosen clamp bracket mounting nut 1 and remove bolt.
3. Remove tilt stopper 5 mounting bolt 6 from swivel
bracket 4, and then remove tilt stopper 5.
11
3
2
3
2
4
5
6
4
5
6
2. Remove bracket distance place 2 mounting screws 3.
4. Check tilt stopper and bracket for damages.
Replace if damaged.
