TOHATSU MFS 4 Service Manual

5-34
Power Unit
4st 4/5/6 2011

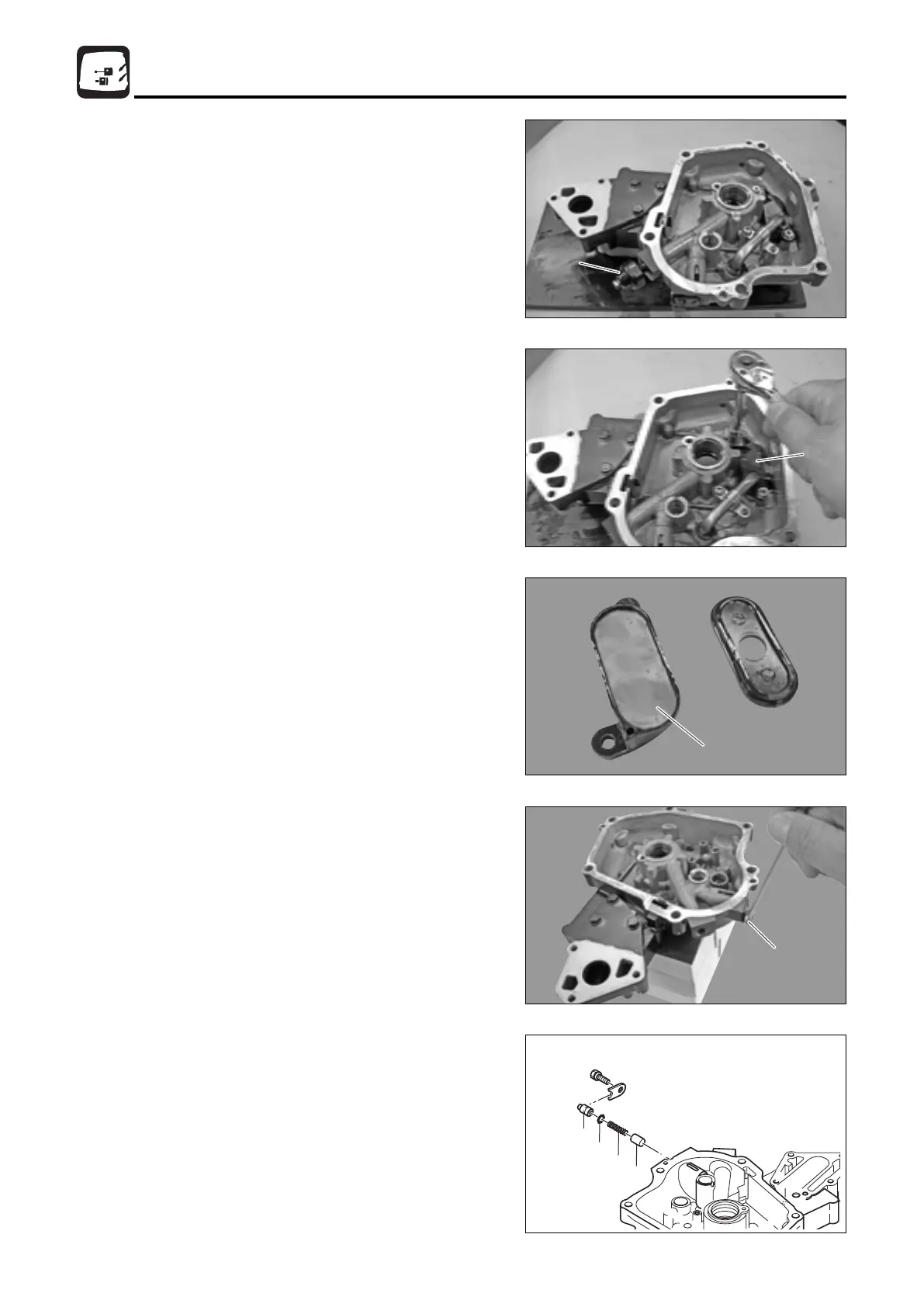

29)Disassembly and Inspection of
Oil Pan
1. Remove oil pressure switch 1 from oil pan.
2. Loosen oil strainer cover mounting bolts and strainer pipe
mounting bolts, and then remove cover 2.
11
3. Check oil strainer cover screen mesh 3 for dirt and
clogging.
Clean, or replace if necessary.
33
22
44
4. Disassemble oil pressure control. Loosen plunger cover
mounting bolt 4 and remove the cover.
5
6
7
8
5. Remove spring seat 5, O ring 6, pressure spring 7 and
plunger control 8 and check the parts.
Replace if necessary.
MFS4-5-6Ech05110425.qxd11.4.2511:39AM  ページ34
