TOHATSU MFS 4 Service Manual

11-2
1. Specification • Service Data
4st 4/5/6 2011
M
H
G
Q
R
K
L
I
T
J
F
E
B
U
C
D
N
S
O
PA
Item Type Unit mm in
A mm/in 398 15.67
S mm/in 655 25.79
BLmm/in 782 30.79
UL mm/in 909 35.79
S mm/in 435 17.13
CLmm/in 562 22.13
UL mm/in 689 27.13
D mm/in 383 15.08
E mm/in 497 19.57
F mm/in 110 4.33
G mm/in 422 16.61
H mm/in 361 14.21
I mm/in 349 13.74
J mm/in 30-60 1.18-2.36
K mm/in 275 10.83
S mm/in 658 25.91
LLmm/in 758 29.84
UL mm/in 858 33.78
M mm/in 343 13.50
N mm/in 273 10.75
O mm/in 267 10.51
P mm/in 545 21.46
Q deg. 134
R deg. 12
S deg. 75
T deg. 75
U mm/in 110 4.33

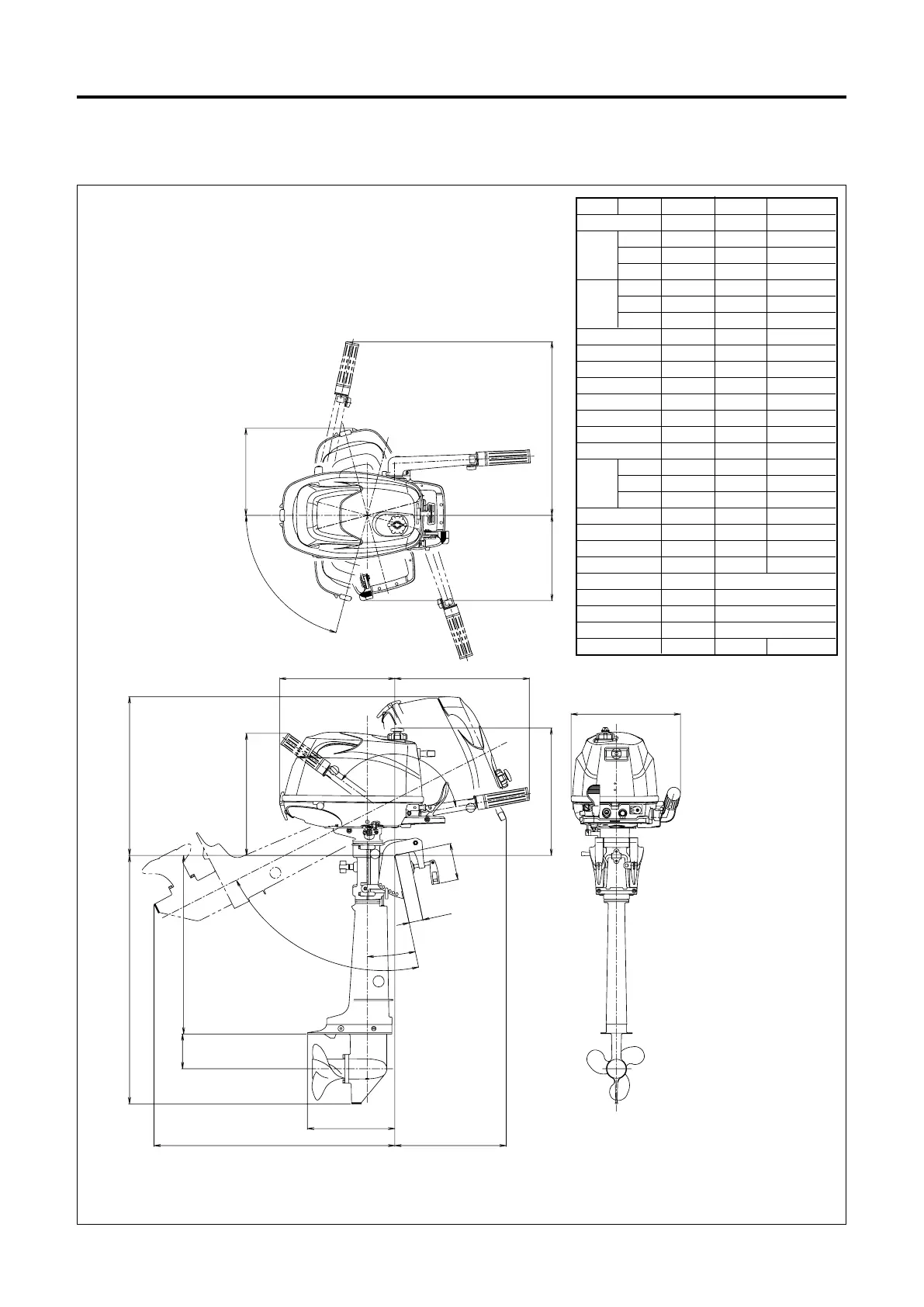

1.Outline Dimensons
<Dual Tank model>
