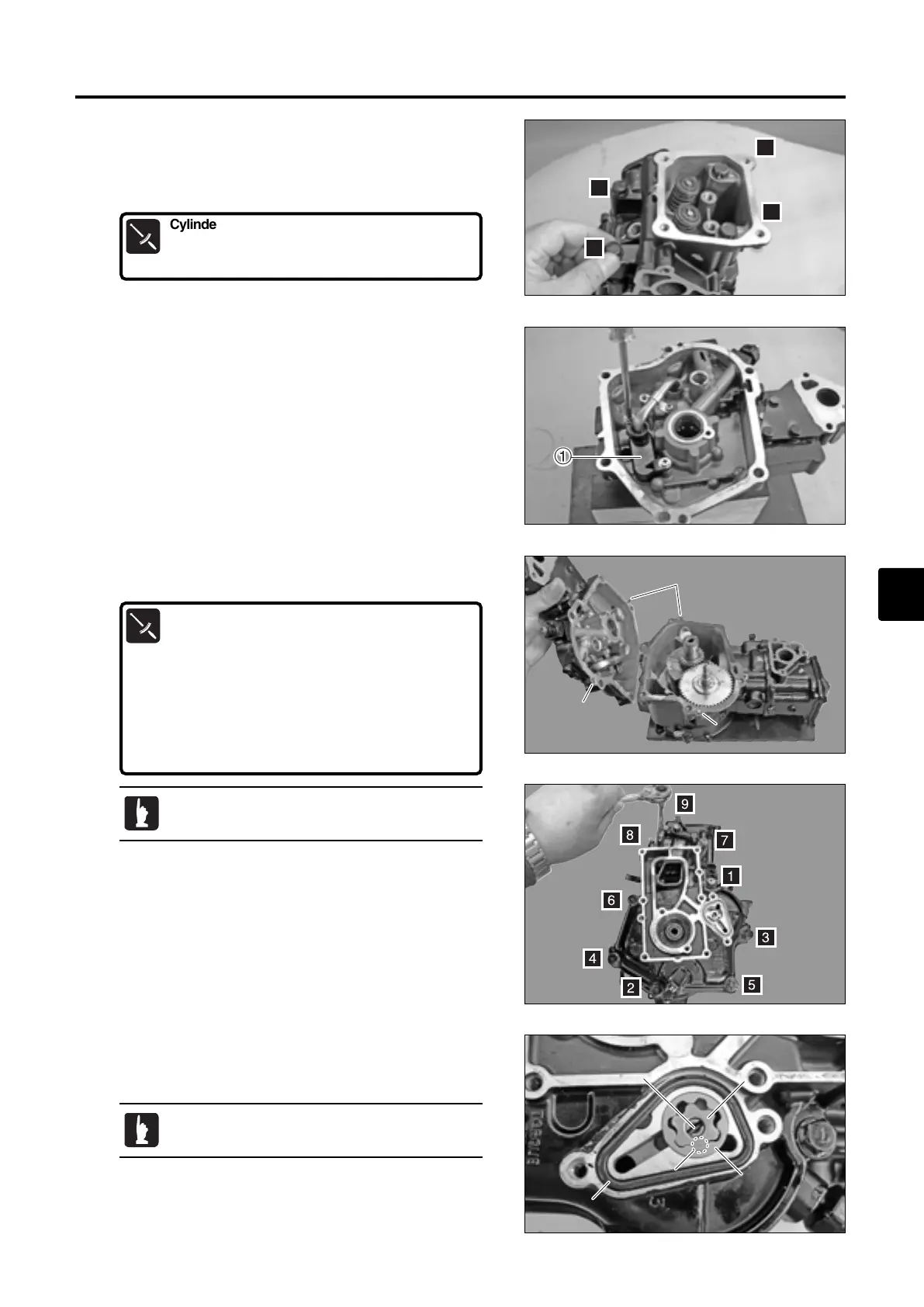

39) Installation of Cylinder Head
1. Attach gasket and cylinder head ass’y to cylinder block, and
then, tighten bolts to specified torque in two steps in the
order as shown.
3. Attach gasket and oil pan to cylinder block, and then, tighten
bolts to specified torque in two steps in the order as shown.
When positioning oil pan on the cylinder block,
use dowel pins a.
&
%
'
$
"
#
!
11
Cylinder head ass’y installation bolts:
1st tightening torque : 12 N • m (9 lb • ft)[1.2 kgf • m]
2nd tightening torque :
25
N • m
(18
lb • ft
)[2.5
kgf • m
]
M8 : 1st Tightening Torque :
12 N · m (9 lb · ft) [1.2 kgf · m]
2nd Tightening Torque :
25 N · m (18 lb · ft) [2.5 kgf · m]
M6 : 1st Tightening Torque :
5 N · m (4 lb · ft) [0.5 kgf · m]
2nd Tightening Torque :
9 N · m (7 lb · ft) [0.9 kgf · m]
4. Attach oil pump parts including oil pump pin 2, oil pump
rotor (inner) 3 and oil pump rotor (outer) 4 to oil pan.
Attach oil pump (inner) so that ● mark b can be
seen.
2 Install strainer cover 1 and secure with bolts.
