TOHATSU MFS 4 Service Manual

8
8-3
4st 4/5/6 2011

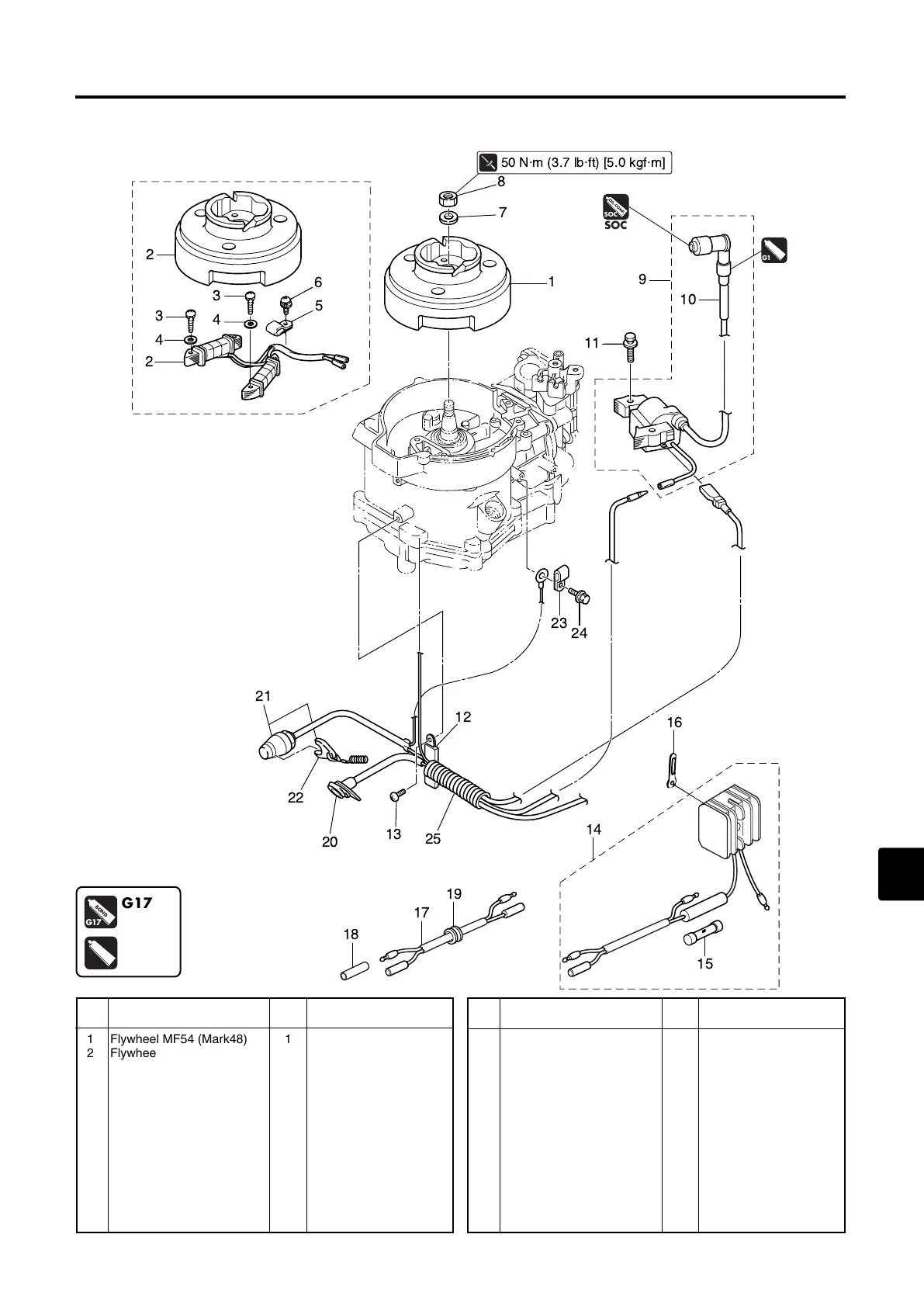

Magneto P/L Fig. 6
50 Nám (3.7 lbáft) [5.0 kgfám]
SOC
OIL-COMP.
GM
SOCSOC
G17G17
BOND
G17
1
8
7
9
10
12
23
24
11
20
13
22
21
17
15
18
16
2
3
4
6
5
3
4
2
25
19
14
OIL-COMP.
GM
SOCSOC
SOC
G17G17G17
BOND
G17
1Flywheel MF54 (Mark48) 1
2Flywheel MF54 (Mark50) 1 "for Sail Pro (with Alternater)"
2 Alternator Ass'y 1
3 Screw 4 M5 L=25mm
4Washer 4
5 Clamp 1
6 Screw 1 M4 L=8mm
7Washer 1
8 Nut 12-P1.25 1
9 Igniter W/R-Cap 1
10 Plug Cap W/Resistance 1
11 Bolt 2 M6 L=30mm
12-1 Clamp 6.5-67P 2
12-2 Clamp 6.5-47.5P 1
Ref.
No.
Description Remarks
Q'ty
13 Screw 1 M6 L=12mm
14 Rectifier Complete 1
15 Fuse (10A) 1
16 Clamp 7-80P 1
17 Battery Cable 1
18 Cable Terminal Plug 1
19 Grommet 17-3 1
20 Pilot Lamp Ass'y 1
21 Stop Switch Ass'y 1
22 Stop Switch Lanyard Ass'y 1
23 Clamp 6.5-14 1
24 Bolt with Washer 1 M6 L=12mm
25-1 Protector Wireharness 1
For Separate Tank Model
25-2 Protector Wireharness 1 For Integral Tank Model
Ref.
No.
Description Remarks
Q'ty
MFS4-5-6Ech08110422.qxd 11.4.22 6:00 PM  ページ3
