TOHATSU MFS 4 Service Manual

6
6-13
4st 4/5/6 2011

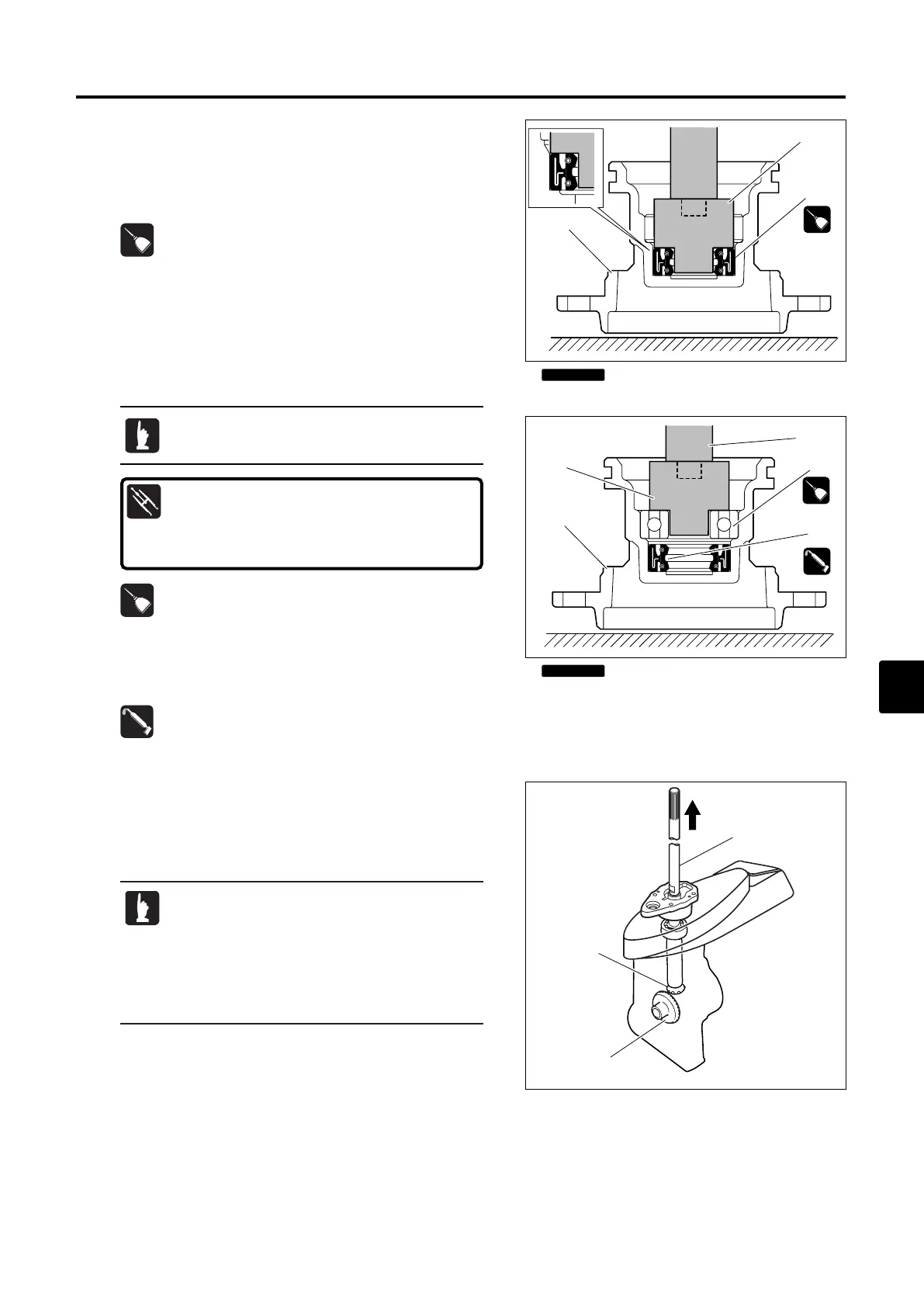

9) Assembly of Propeller Shaft Housing
1. Apply gear oil to outside of new oil seal 1, and attach it to
propeller shaft housing 3 by using a commercially available
mandrel 2.
3
1
OIL
GEARGEARGEAR
GEAR
2
2. Install new bearing 4 to propeller shaft housing 3.
3. Apply OBM grease to lip of oil seal 1.
3
5
4
OIL
GEARGEARGEAR
GEAR
6
GREASE
OBMOBMOBM
OBM
1
4
Do not reuse.
1
Do not reuse.
10) Removing Drive Shaft
1. Pull up pump case (lower) and drive shaft ass'y 1,
remove pinion (B) gear 2, and then pull out forward (A)
gear 3.
1
3
2
OIL
GEAR
GEAR
GEAR
GEAR
OIL
GEARGEARGEAR
GEAR
GREASE
OBMOBMOBM
OBM
Do not reuse removed bearing.
Bearing Attachment 2 5 :
P/N. 3BR-99905-0
Driver Rod 3 6 :
P/N. 3AB-99702-0
· When removing forward (A) gear 3, be careful
not to damage the existing shims or lose them.
Shim is reusable.
· Replace shim with new one of the same
thickness if any deformation or damage is
found on it.
MFS4-5-6Ech06110422.qxd 11.4.22 5:50 PM  ページ13
