2.1 Scope of delivery
The complete scope of delivery of your Torqeedo Cruise system includes the
following components:
■
Motor complete with pylon, shaft and transom bracket (with steering tube for
remote steering)
■
Propeller with mounting kit (5-part)
■
Fin with three mounting screws (M6 made from aluminium)
■
Steering link arm and small parts for connection of steering
■
Cable set with main switch
■
Operating manual
■
Warranty form
■
Packaging
■
Attachment kit
■
Service booklet
■
Tilt switch
2.2 Overview of controls and components

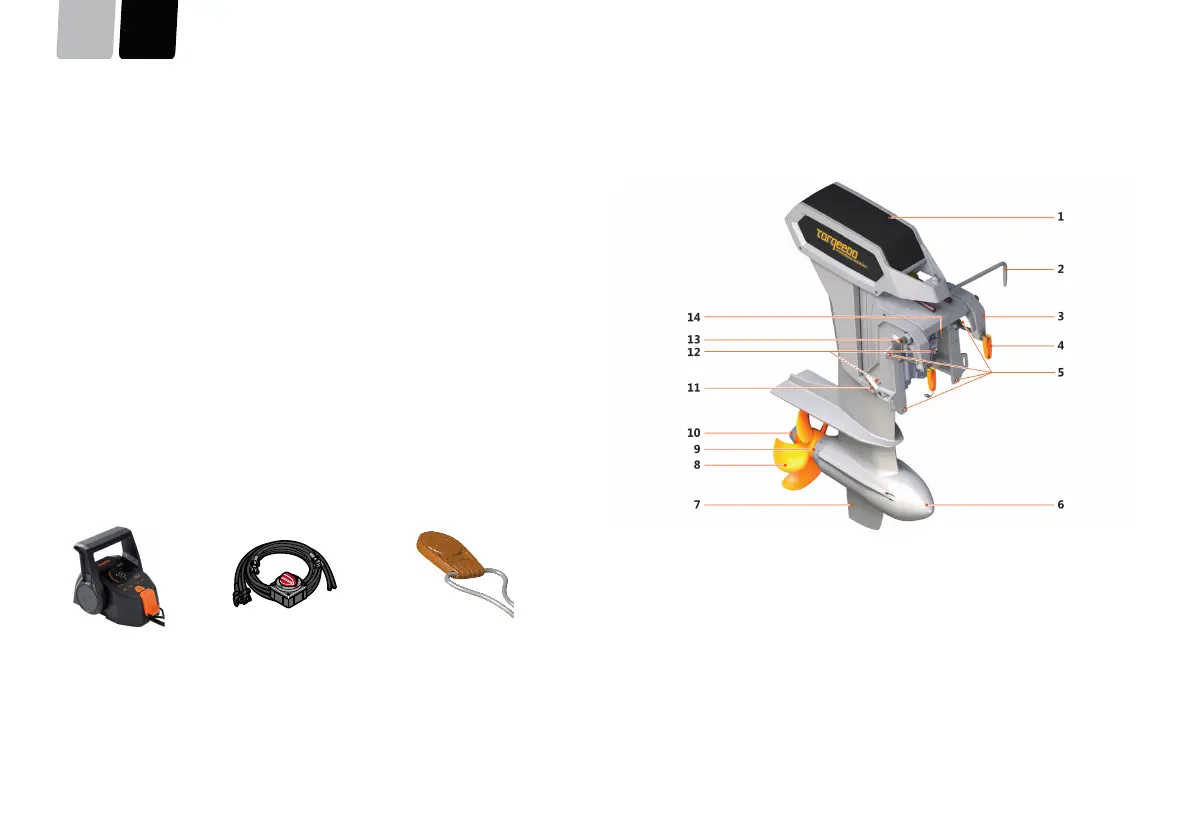

Fig. 32: Accelerator lever
(accessory)
Fig. 33: Cable set Fig. 34: Emergency Stop
magnetic chip
Cruise System
Fig. 35: Overview of drive parts and components
1
GPS module in the shaft head
8
Propeller
2
Jointed rod
9
Half ring anodes
3
Transom bracket
10
Shaft galvanic anode
4
Toggle screw
11
Adjusting rod (for fixing the indexing
position of the motor)
5
Drilling Ø 12 mm
12
Ring anodes on transom bracket
6
Pylon
13
Guide tube
7
Fin
14
Locking lever
