Startup
DE EN
The following parts are required to connect your Cruise system to a remote steering
system:
■
Remote steering system (not included in the scope of delivery), e.g. Teleflex Light
Duty Steering System.
■
Steering link arm (9) (included in the scope of delivery) to connect the remote
steering system to the aluminium cage on the motor head.
■
Installation material.
1. Connect the remote steering system with the push rod of the remote steering
system (11) by sliding the push rod of the remote steering system (11) through
the guide tube, and fixing it using the metal union nut (10) of the remote
steering system.
2. Push the bent end of the steering link arm (9) into the drill hole of the push rod
of your remote steering system.
3. Tighten the connection using the nut provided for this purpose.
4. Attach the other end of the steering link arm (9) to the drill hole in the
aluminium cage. For this, push in the bolt (2) from above through the drill hole
in the aluminium cage, and fix this from underneath using a bolt (5). Secure the
bolt (5) using Loctite 243.
5. Connect the remaining parts of your remote steering system as per the
manufacturer's instructions.
5.4 Connecting the TorqLink components and the
accelerator lever
1. Install the accelerator lever in your preferred position. When doing so, ensure
that the cable does not come under tension during any steering movement.

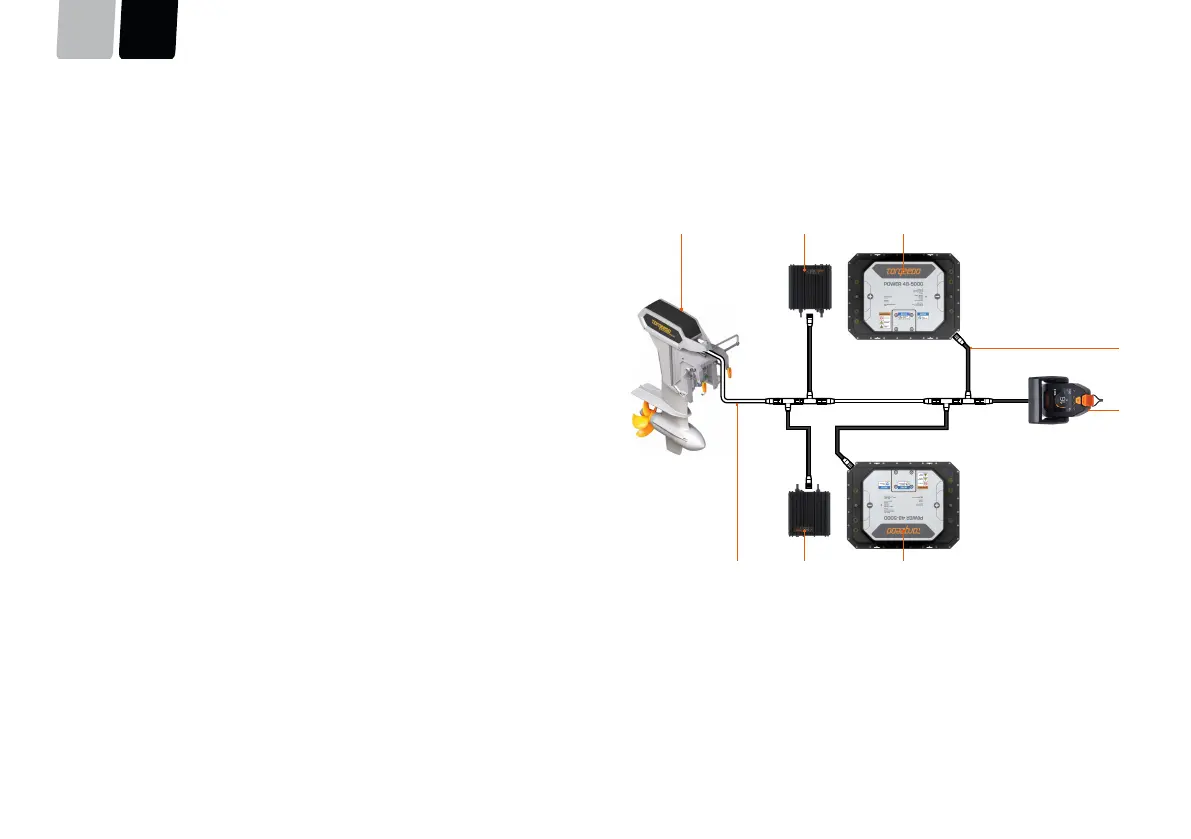

Fig. 41: Schematic arrangement of a TorqLink network with the 1976-00 accelerator lever
1
Cruise 10.0 R (terminating resistor)
4
Branch line
2
Charger unit
5
TorqLink (terminating resistor)
3
Power 48-5000
6
Backbone
