0 Introduction
1Vbackpcmelconnectio_s
4 A/V/+/-- -- Adjust the volume level, change the channel, or
change the input or source you are viewing, depending on the
mode, which is selected by the CH/INPUT button.
5 CH/INPUT--Switches the function of the A/V/+/- buttons to
select the volume, channel, or input mode.
• In Volume mode, the buttons increase or decrease the volume.
• In Channel mode, the buttons change the channel up or down.
• In Source mode, the buttons toggle the input from one source
to the next.
6 USB port--Accesses JPEG or MP3 files, or updates TV
firmware.

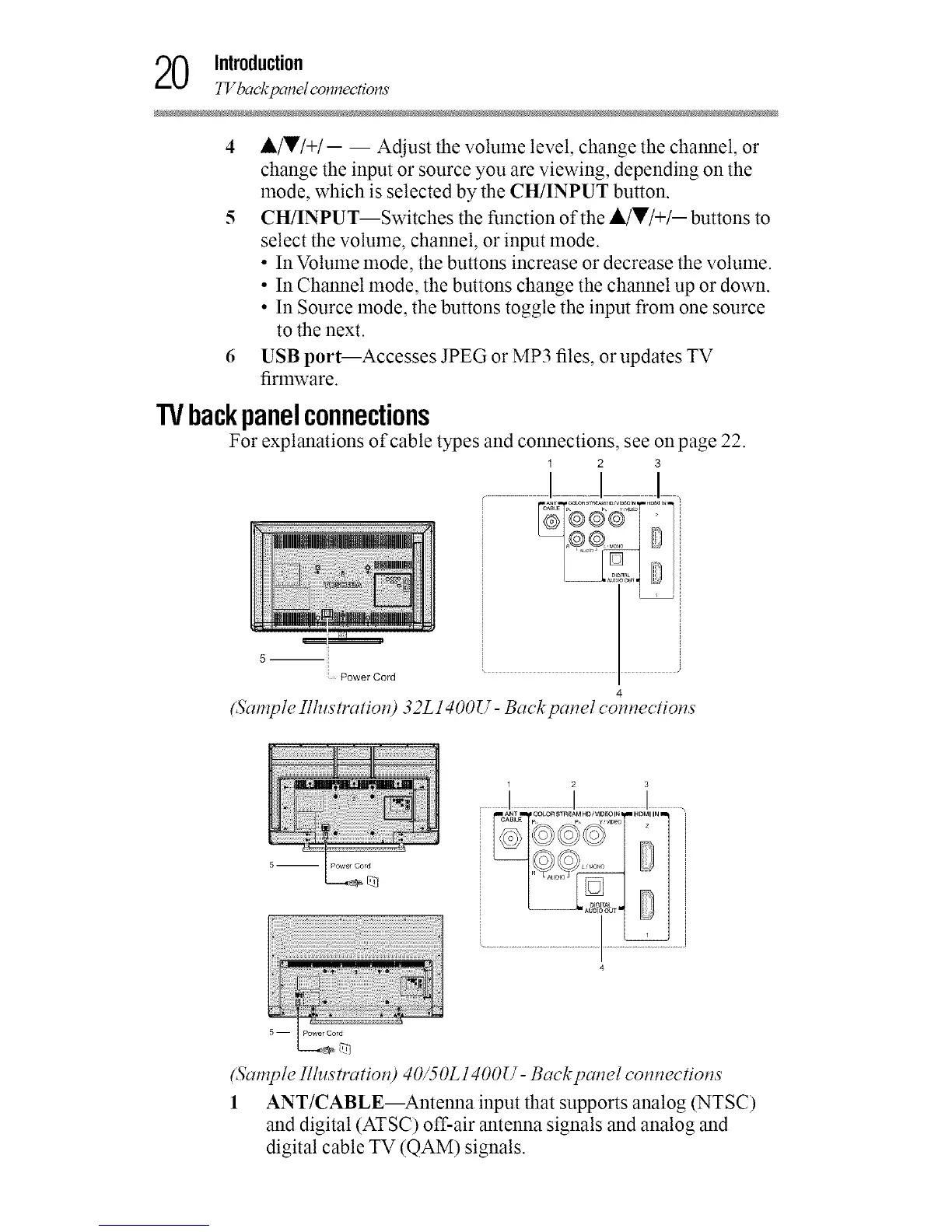

TVbackpanelconnections
For explanations of cable types and connections, see on page 22.
1 2 3
I.... I I
5 mii
Power Cord
4
(5"anTpleIllustration) 32L 1400 U- Back panel connections
5 -- Power Cord
(Sample Illustrcttion) 40/50L1400 U- Back panel connections
1 ANT/CABLE--Antenna input that supports analog (NTSC)
and digital (ATSC) off-air antenna signals and analog and
digital cable TV (QAM) signals.
