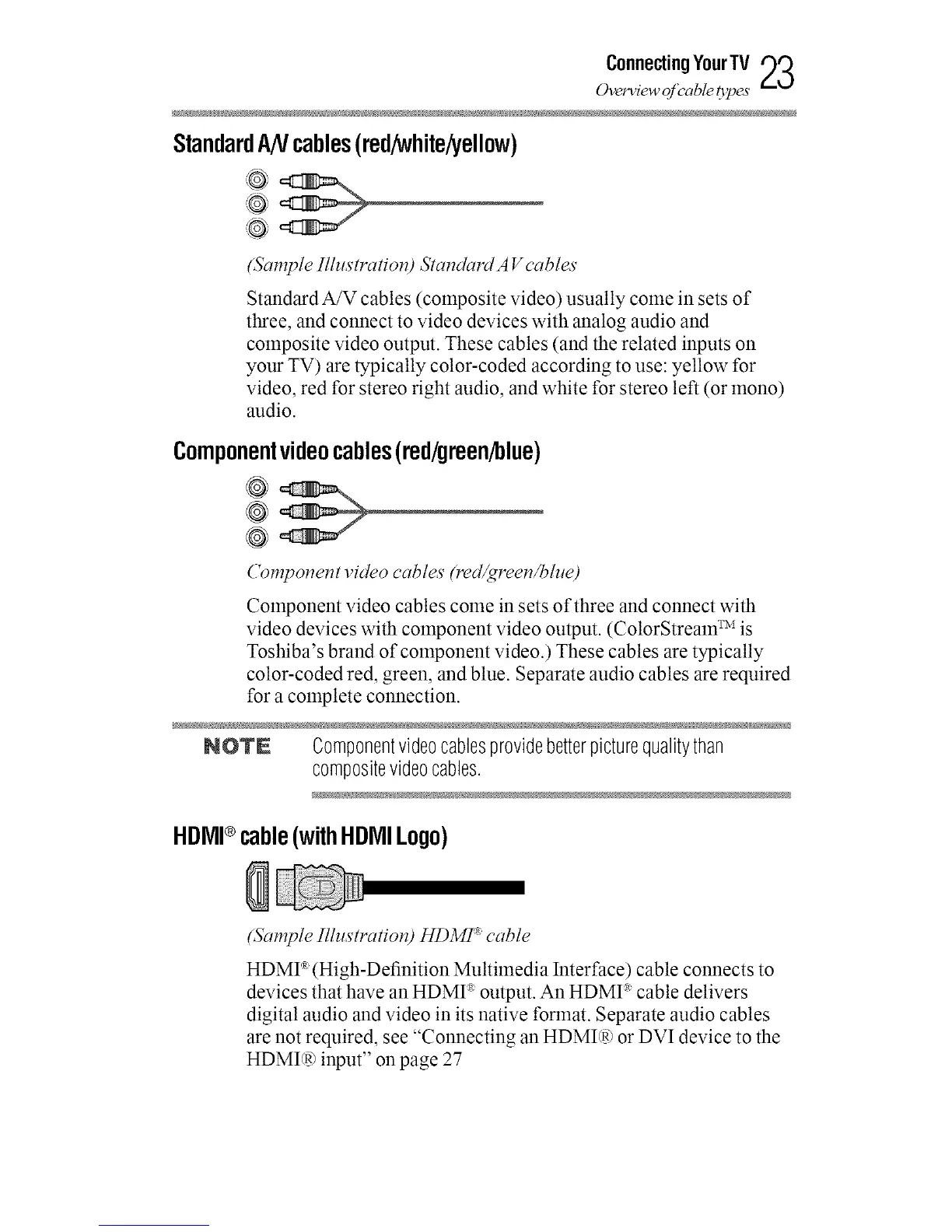

ConnectingYourTV 9_
(..__t,.J
Overview of cable Opes
StandardANcables(red/white/yellow)
@
@
(Sample Illustration) Stcmdard A V cables
Standard A/V cables (composite video) usually come in sets of
three, and connect to video devices with analog audio and
composite video output. These cables (and the related inputs on
your TV) are typically color-coded according to use: yellow for
video, red for stereo right audio, and white for stereo left (or lnono)
audio.
Componentvideocables(red/green/blue)
®
®
Component video cables (red/green/blue)
Component video cables come in sets of three and connect with
video devices with component video output. (ColorStream TM is
Toshiba's brand of component video.) These cables are typically
color-coded red, green, and blue. Separate audio cables are required
for a complete connection.
NOTE Componentvideocablesprovidebetterpicturequalitythan
compositevideocables.
HDMI®cable(withHDMILogo)
&
(Sample Illustration) HDMI cable
HDMt * (High-Definition Multimedia Interface) cable connects to
devices that have an HDMt * output. An HDMt * cable delivers
digital audio and video in its native format. Separate audio cables
are not required, see "Connecting an HDMI(R)or DVI device to the
HDMI(R)input" on page 27
